mpn:
brand:
manufacturer:
MPN:
Description:

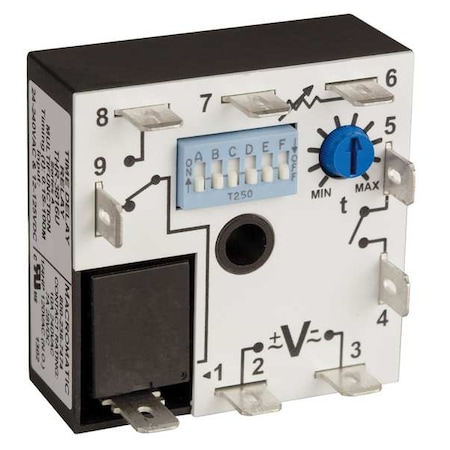

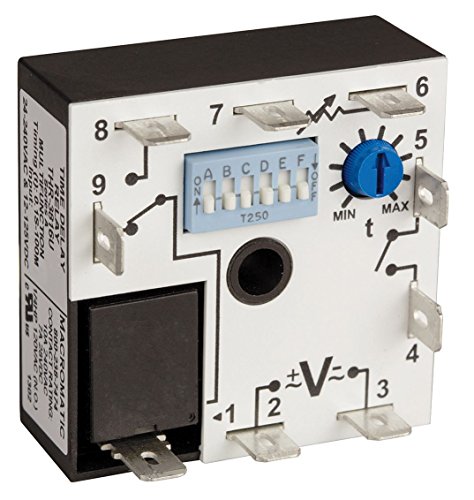

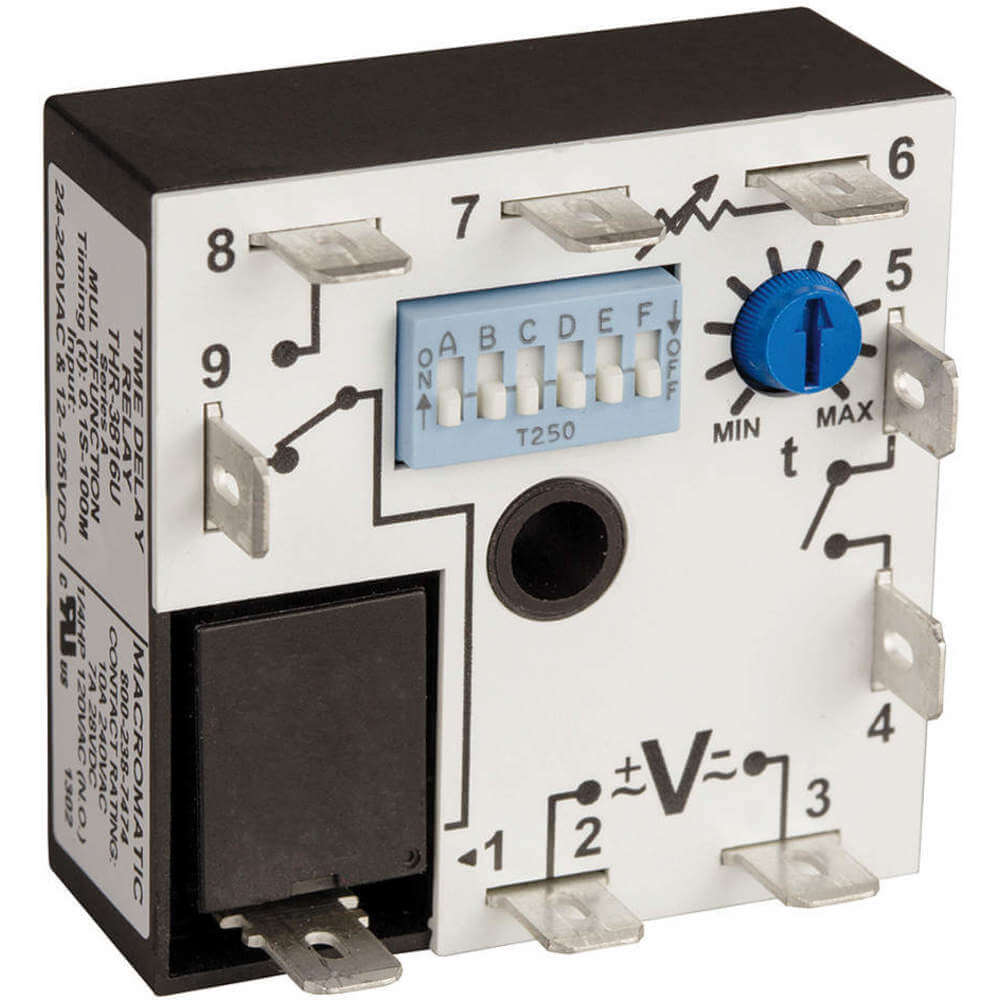

Time Delay Relay, E-Mech, Multi-Funct, 24-240VAC & 12-25VDC, .1sec-100 min, cube
Weight:
1.01
Weight:
1.01 LB
Preferred Price:
91.01
Price:
91.01
Min Simple Price:
47.0
Absolute Min Price:
71.73
Min Price:
71.73
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
MTcyNg:::THR-3816U
sku:
MTcyNg::XW:THR-3816U@y0
condition:
11
seller:
Grainger
amzMan:
macromatic
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating - Relay | 10 A @ 240V, 10A @ 240V |
| Adjustment Method, Adjustment Method - Timer | Dip Switch |
| Adjustment Operator | Knob |
| Approvals | CE |
| Base Product Number | THR-3816 |
| Body Depth - Relay, Body Width - Relay | 2.00 in |
| Body Depth - Relay, Body Width - Relay | 2.0 in |
| Body Depth, Body Height - Relay | 0.79 in |
| Body Height, Body Width | 2 in |
| Brand, Manufacturer | Macromatic |
| Category | Industrial Automation and Controls |
| Circuit | SPDT (1 Form C) |
| Contact Form - Relay, Contacts | SPDT |
| Contact Rating (A) | 10 A |
| Contact Rating @ Voltage | 10A @ 240VAC/28VDC |
| Control Voltage | 24 to 240 |
| Current Stock | 197 |
| DC Contact Rating - Relay | 7A @ 28V, 7 A @ 28V |
| Delay Time | 0.1 Sec ~ 100 Min |
| Description | RELAY TIME DELAY 100MIN 10A 240V |
| Detailed Description | Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Min Delay 10A @ 240VAC/28VDC Chassis Mount |
| Digi-Key Part Number | 2561-THR-3816U-ND |
| Family Series | Macromatic Relays, THR Series |
| Function | On Delay, Off Delay, Interval, Single Shot, Multi Function, Programmable (Multi-Function) |
| Function - Timing Relay | Interval, Off Delay, on Delay, One Shot |
| Gross Weight | 0.195 lbs |
| Hz | 50/60 |
| Hz - Electrical | 50 Hz, 60 Hz |
| Input or Control Voltage | 12 to 125V DC, 24 to 240V AC, 24 to 240V AC, 12 to 125V DC |
| International Shipping | No |
| Item - Relay | Multi-Function Encapsulated Timing Relay |
| Item Number, Manufacturer Part Number, Manufacturer Product Number, Mpn | THR-3816U |
| Lead Time | Expected to ship in 1-2 business days |
| Manufacturer, Mfr | Macromatic Industrial Controls |
| Max Time | 100 Min |
| Max. Time Setting - Timer | 1 hr 40 sec |
| Min. Time Setting - Timer | 0.10 sec, 0.1 sec |
| Mode of Operation | Interval, Off Delay, On Delay, One-Shot |
| Mounting - Relay, Mounting Type | Surface |
| Mounting Type | Chassis Mount |
| Multi-Function, RoHS | Yes |
| Net Weight | 0.175 lbs |
| Nominal Coil Voltage | 12 VDC, 24 VAC, 24 VDC, 48 VAC, 48 VDC, 120 VAC, 208 VAC, 240 VAC |
| Number of Pins - Relay | 9 |
| Overall Depth, Overall Height - Relay | 1.14 in |
| Package | Box |
| Primary Type | Time Delay Relays |
| Product Series | THR |
| Product Status | Active |
| Relay Type | Mechanical Relay |
| Series | THR-3, THR Series |
| SKU | ZO-G5126536 |
| Standards | cURus |
| Status Indicator | None |
| SubCategory | Electrical |
| Termination | 0.250 in Flat Blade |
| Termination Style | Quick Connect |
| Time Range (Minutes), Time Range (Seconds) | 0-1, 0-2, 0-3, 0-5, 0-10, 0-15, 0-30, 0-60, 0-100 |
| Time Range Adjustment | Onboard, Remote |
| Timer Range | 0.10 sec. to 100 min. |
| Timing Adjustment Method | DIP Switches |
| Timing Initiate Method | Input Voltage, Trigger Signal |
| Timing Range | 0, .1 Sec to 100 Min |
| Type of Output | Relay |
| UPC | 801262084612 |
| Voltage (AC) | 24-240 VAC |
| Voltage (DC) | 12-125 VDC |
| Voltage - Supply | 24 ~ 240VAC, 12 ~ 125VDC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Grainger | 21EP67 | 47.0 | 47.0 | 1 | 404 | 0 | MACROMATIC | 47.0 @ Qty: 1+ | ||
| AmazonTP | B00DWIA7XW | 51.7 | 51.7 | 1 | In Stock | 2 | Macromatic | 51.7 @ Qty: 1+ | ||
 | sustainablesupply.com | C1170846 | 58.49 | 58.49 | 1 | In Stock | Macromatic | 0.19 | 58.49 @ Qty: 1+ | |
| grainger.ca | WWG21EP67 | 62.2378645 | 62.2378645 | 1 | In Stock | MACROMATIC | 0.19 | 62.2378645 @ Qty: 1+ | ||
 | Zoro | G5126536 | 77.49 | 77.49 | 1 | 486 | Macromatic | 0.19 | 77.49 @ Qty: 1+ | |
 | blackhawksupply.com | THR-3816U | 77.53 | 77.53 | 1 | In Stock | Macromatic | 77.53 @ Qty: 1+ | ||
 | Walker Industrial | THR-3816U | 79.52 | 79.52 | 1 | In Stock | 10 | Macromatic | 79.52 @ Qty: 1+ | |
| us.rs-online.com | 70274477 | 82.09 | 82.09 | 1 | 138 | Macromatic | 82.09 @ Qty: 1+ | |||
 | Raptor Supplies | AF7JAF | 82.1363985 | 82.1363985 | 1 | In Stock | MACROMATIC | 82.1363985 @ Qty: 1+ | ||
 | simsupply.com | ZO-G5126536 | 94.3 | 94.3 | 1 | 197 | Macromatic | 94.3 @ Qty: 1+ | ||
 | Galco | THR-3816U-MCRM | 96.19 | 96.19 | 1 | 6 | Macromatic | 0.195 | 96.19 @ Qty: 1+ | |
 | Digi-Key | 12172098 | 98.58 | 98.58 | 1 | 5 | Macromatic Industrial Controls | 98.58 @ Qty: 1+ | ||
| Newark | 44X7077 | 105.16 | 105.16 | 1 | In Stock | MACROMATIC CONTROLS | 105.16 @ Qty: 1+ |
