- mpnPNL1600
- brandname: Mag-Mate
- manufacturername: Mag-Mate

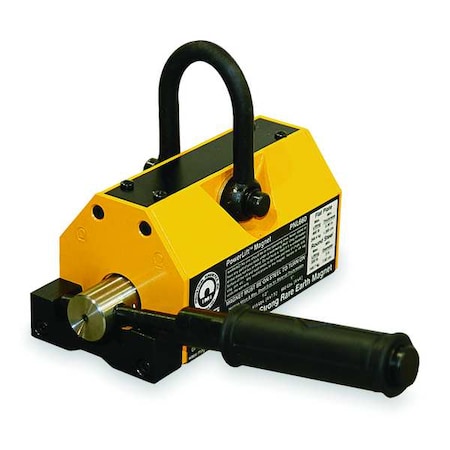

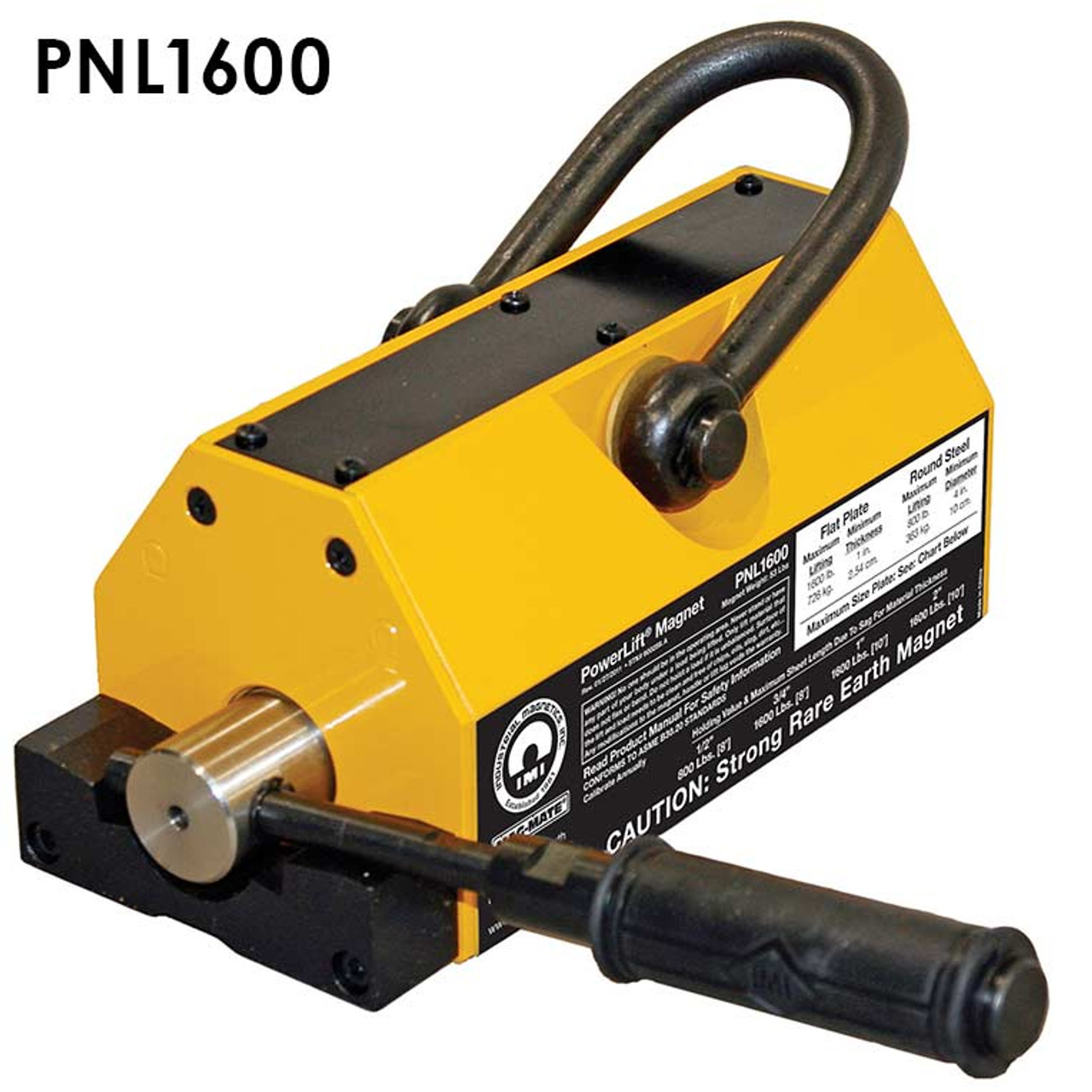

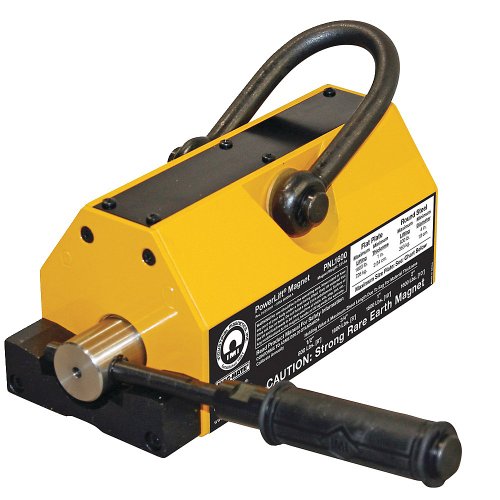

MAG-MATE PNL1600 PowerLift Magnet-DIM.: 9.03' x 4.80' x 4.60'
- Brand: Industrial Magnetics
- PartNumber: PNL1600
- Model: PNL1600
- PackageQuantity: 1
- Manufacturer: Mag-Mate
- Label: Mag-Mate
Attributes
| Key | Value |
|---|
| Bail Opening Height | 3-1/2", 3 1/2 in |
| Bail Opening Width | 2 1/4 in, 2-1/4" |
| Features | RFID Enabled, Lock on a. |
| Flat Capacity | Up to 5,000 lb Flat Cap. |
| Footnotes | Max. Rated Capacities B. |
| Handle (in) | 9 |
| Handle Length | 6 3/4 in, 6-3/4" |
| Item | Lifting Magnet |
| Magnet Activation | Locking On/Off Handle |
| Magnet Height | 4-3/4", 4 3/4 in |
| Magnet Ht. (in) | 4-3/4 |
| Magnet Length | 9 1/8 in, 9-1/8" |
| Magnet Material | Neodymium |
| Magnet Surface Size | 9 1/8 in x 4 7/8 in |
| Magnet Wd. (in) | 4-7/8 |
| Magnet Width | 4?7/8", 4 7/8 in |
| Max. Heat Resistant Tem. | 180 Degrees F, 180 Deg. |
| Max. Rated Capacity @ M. | 800 lb, 800 lb. |
| Max. Rated Flat Capacity | 1,600 lbs., 1,600 lb |
| Max. Rated Round Capaci. | 800 lb, 800 lbs. |
| Min. Material Thickness. | 1/2", 1/2 in |
| Overall Height | 8 7/8 in, 8-7/8" |
| Overall Ht. (in) | 8-7/8 |
| Overall Length | 10-3/4", 10 3/4 in |
| Overall Ln. (in) | 10-3/4 |
| Overall Size | 10 3/4 in x 4 7/8 in |
| Overall Width | 4-7/8", 4 7/8 in |
| Required Material Thick. | 3", 3 in |
| Standards | ASME B30.20 BTH-1 Desig. |
| Weight | 52.05 |
| Weight (lbs) | 51 |
| Working Load Limit (fla. | 1600 lbs. |
| Working Load Limit (rou. | 800 lbs. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1448745 | 958.99 | 1 | In Stock | | Mag-Mate | | 958.99 @ 1 |
 | primebuy.com | PNL1600 | 1021.0 | 1 | In Stock | | Mag-Mate | 51.0 | 1021.0 @ 1 |
| AmazonTP | B008YCFYRU | 1184.86 | 1 | In Stock | 10 | MAG-MATE | | 1184.86 @ 1 |
| AmazonUNK | B008YCFYRU | 1184.86 | 1 | In Stock | | MAG-MATE | | 1184.86 @ 1 |
| grainger.ca | MGNPNL1600 | 1237.04923028 | 1 | In Stock | | MAG-MATE | 53.0 | 1237.04923028 @ 1 |
 | National Supply Network | 67077594 | 1240.01 | 1 | In Stock | | Mag-Mate | | 1240.01 @ 1 |
 | sustainablesupply.com | C2988159 | 1312.79 | 1 | In Stock | | Mag-Mate | 53.0 | 1312.79 @ 1 |
 | bscsource.com | PNL1600 | 1339.19 | 1 | In Stock | | Mag-Mate | | 1339.19 @ 1 |
 | freertool.com | FTS-NE701600 | 1342.1 | 1 | In Stock | | Mag-Mate | | 1342.1 @ 1 |
 | penntoolco.com | 113625 | 1395.0 | 1 | In Stock | | Mag-Mate | | 1395.0 @ 1 |
 | Raptor Supplies | AC3PEH | 1919.1044925 | 1 | In Stock | | MAG-MATE | | 1919.1044925 @ 1 |
