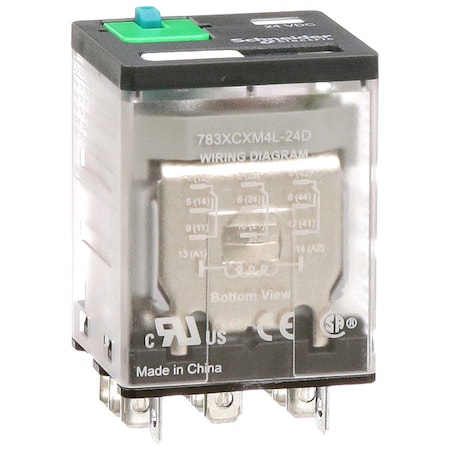

783XCXM4L-24D, Electromechanical Relay 24VDC 400Ohm 10A 3PDT (27.5x31x42) mm Socket Power Relay (2 Items)

783XCXM4L-24D, Electromechanical Relay 24VDC 400Ohm 10A 3PDT (27.5x31x42) mm Socket Power Relay (2 Items)zoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V
Alternate Mfr Part Numb.P833005E
Alternate Part No.528-783XCXM4L-24D
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Bifurcated ContactNo
Body Depth1.54 in
Body Depth - Relay1.1 in
Body Height1.07 in
Body Height - Relay1.6 in
Body Width1.2 in
Body Width - Relay1.2 in
BrandMagnecraft / Schneider .
Coil Resistance400 Ohms
Coil TerminationPlug Pin
Coil TypeNon-Latching
Coil Voltage24 V, 120 VAC ; 110/115.
Coil Volts24V DC
Contact Current Rating15 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact MaterialGold Flashed Silver All.
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage120
Current Rating15 A
Current Stock135
DC Contact Rating - Rel.12A @ 28V
Depth0.157 in
Dielectric Rating2500 V (RMS) (Pole to P.
Dimensions1.10 x W 1.21 x H 1.54 .
DiodeNo
EnclosurePlastic
Family SeriesSchneider Relays, 700 S.
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.1 lbs
Height1.575" (40mm)
HP @ 120V1/2 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number783XCXM4L-24D
Length1.212 in
Life10000000 Operations
ManufacturerSchneider Electric, Sch.
Manufacturer Part No.783XCXM4L-24D
Manufacturer Part NumberC833005M
Max Current15 A
Maximum Operating Tempe.55 ?C
Mechanical LatchYes
Minimum Operating Tempe.-40 ?C
MountingPlug In
Mounting - RelayPlug In
Mounting StyleSocket
Mounting TypeSocket Mount
Mpn783XCXM4L-24D
Net Weight0.0022 lbs
Nominal Coil Voltage24 VDC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.07 in
Overall Height - Relay1.85 in
Power Consumption1.5 VA/1.4 W
Power Consumption - Rel.1.5 W
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product Header783 Series Ice Cube Rel.
Product Series700
Published Coil Voltage24 VDC
Push-to-TestYes
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC12 A
Rating @ 24/28/30 VDC12 A
Relay TypeElectromechanical
RoHSYes
Safety GuidedNo
Series789 Series
SKUZO-G3447534
StandardsUL, CSA, CE, RoHS, CE C.
Status IndicatorYes
SubCategoryElectrical
Switching Voltage300 V
TerminationQC Tabs, .187 " Flat Bl.
Termination StylePlug Pin
TypeCube Style
Voltage Rating300 V
