MAGNECRAFT 389FXBXC1-12D

B00DED71KC

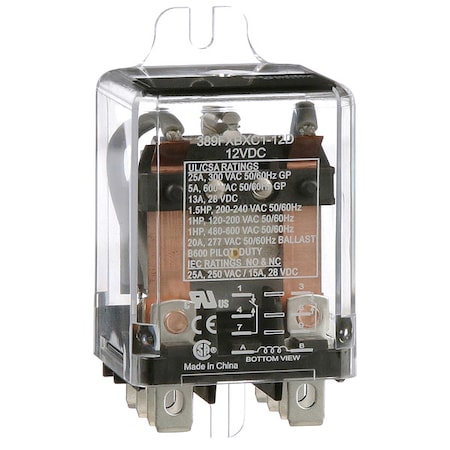

Enclosed Power Relay, 8 Pin, 12VDC, DPDT

Enclosed Power Relay, 8 Pin, 12VDC, DPDTzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 300V
ApprovalsCE, CSA, UL
ASINB007ICMU9W
Bifurcated ContactNo
Body Depth1.07 in
Body Depth - Relay1.4 in
Body Height1.37 in
Body Height - Relay2.9 in
Body Width0.83 in
Body Width - Relay1.53 in
BrandSchneider Electric
Coil Rating3.5VA, 1.4W
Coil Resistance100 Ohms
Coil TypePower
Coil Volts12V DC
Contact Amp Rating (Res.25A @ 300VAC, 13A @ 28V.
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
ContactsDPDT
Current Stock97
DC Contact Rating - Rel.13A @ 28V
Dimensions2.90"H, 1.53"W, 1.40"D
DiodeNo
Electrical Connection1/4" Tab Terminal
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
Gross Weight0.0022 lbs
HP @ 240V1 1/2
In-stock620
International ShippingNo
ItemEnclosed Power Relay
Item - RelayEnclosed Power Relay
Item model number389FXBXC1-12D
Item Number389FXBXC1-12D
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider
Manufacturer Part NumberC897189M
Max Current13 A
Mechanical LatchNo
MountingSide Flange
Mounting - RelaySide Flange
Mounting StylePanel
Mpn389FXBXC1-12D
Net Weight0.0022 lbs
Nominal Coil Voltage12 VDC
Number of Electrical Co.8
Number of Pins - Relay8
Overall Depth2.9 in
Overall Height - Relay2.9 in
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 W
Product CategoriesRelays
Product Series389F
Published Coil Voltage12 VDC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
RoHSNo
RoHs StatusLead free / RoHS Compli.
Safety GuidedNo
SKUZO-G2383665
Status IndicatorNo
SubCategoryElectrical
Switching Voltage600 V
Termination.250 " Flat Blade

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com389FXBXC1-12D19.0541245Magnecraft / Schneider Electric19.054 @ 1
gordonelectricsupply.com389FXBXC112D24.991In Stock10SQUARE D24.99 @ 1
thumbzoomNewark47M044326.571227SCHNEIDER ELECTRIC/LEGACY RELAY26.57 @ 1
thumbzoomsustainablesupply.comC120960728.911In StockSchneider Electric0.128.91 @ 1
Verical389FXBXC1-12D29.02996Schneider Electric29.0 @ 2
thumbzoomAmazonSCB007ICMU9W30.761In StockSchneider Electric/Magnecraft0.812530.76 @ 1
thumbzoomZoroG238366533.041100Schneider Electric0.133.04 @ 1
Future Electronics100474933.99610In StockSchneider Electric33.996 @ 10
thumbzoomGalco389FXBXC1-12D-MGCR36.941In StockSchneider0.002236.94 @ 1
AmazonTPB00G8UB71M40.571In Stock2Schneider Electric40.57 @ 1
AmazonUNKB00G8UB71M40.571In StockSchneider Electric40.57 @ 1
us.rs-online.com7178027544.651In StockSchneider Electric44.65 @ 1
thumbzoomsimsupply.comZO-G238366547.02197Schneider Electric47.02 @ 1
