MAGNECRAFT 389FXBXC1-240A

B00E2XR51I

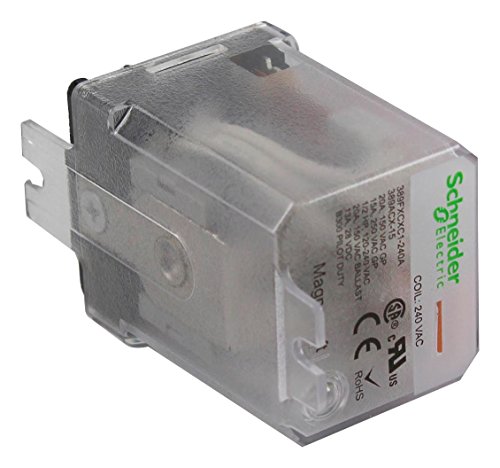

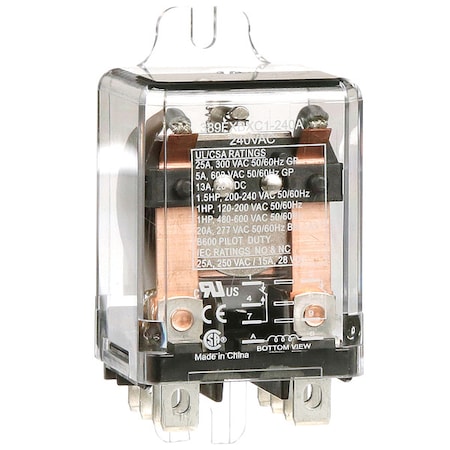

Enclosed Power Relay, 8 Pin, 240VAC, DPDT

Enclosed Power Relay, 8 Pin, 240VAC, DPDTzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 300V
Alternate Mfr Part Numb.C897187
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth2.25 in
Body Depth - Relay1.4 in
Body Height2.43 in
Body Height - Relay2.9 in
Body Width2.5 in
Body Width - Relay1.53 in
BrandSchneider Electric
Coil Resistance400 Ohms
Coil TypePower
Coil Voltage230 VAC ; 220/230/240 V.
Coil Volts240V AC
ConditionNew
Contact Amp Rating (Res.25A @ 300VAC, 13A @ 28V.
Contact Current Rating25 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC
ContactsDPDT
Control Voltage230
Country of Origin00 - Unknown
Current Rating25 A
Current Stock397
DC Contact Rating - Rel.13A @ 28V
Dimensions2.90"H, 1.53"W, 1.40"D
DiodeNo
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
Features1hp @ 480-600V, Flag In.
FunctionGeneral Purpose
Gross Weight0.0022 lbs
In-stock620
International ShippingNo
ItemEnclosed Power Relay
Item - RelayEnclosed Power Relay
Item Number389FXBXC1-240A
Lead TimeExpected to ship in 1-2.
ManufacturerSquare D, Schneider
Manufacturer Part NumberC897187M
Max Current13 A
Mechanical LatchNo
MountingSide Flange
Mounting - RelaySide Flange
Mounting StylePanel
Mounting TypePanel Mount
Mpn389FXBXC1-240A
Net Weight0.0022 lbs
Nominal Coil Voltage240 VAC
Number of Electrical Co.8
Number of Pins - Relay8
Number of Poles2
Overall Depth2.9 in
Overall Height - Relay2.9 in
Pins8
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 VA
Primary TypePower Relays
Product CategoriesRelays
Product Header389F Series Power Relay
Product Series389F
Published Coil Voltage220 VAC, 240 VAC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
Relay TypeElectromechanical
RoHSNo
RoHs StatusLead free / RoHS Compli.
Safety GuidedNo
Series389F Series
SKUZO-G0967181
StandardsUL, CSA, CE
Status IndicatorNo
SubCategoryElectrical
Switching Voltage600 V
Termination.250 " Flat Blade, QC T.
Voltage Rating600 V
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com389FXBXC1-240A20.7861191Magnecraft / Schneider Electric20.786 @ 1
Grainger6CUZ422.5411050SCHNEIDER ELECTRIC22.54 @ 1
RS Delivers827-858223.988118Schneider Electric23.988 @ 1
gordonelectricsupply.com389FXBXC1240A25.991In Stock10SQUARE D25.99 @ 1
thumbzoomindustrialrefrigerationparts.com389FXBXC1240A26.621In StockSquare D2.026.62 @ 1
thumbzoomsustainablesupply.comC120960828.911In StockSchneider Electric0.228.91 @ 1
thumbzoomZoroG096718132.561632Schneider Electric0.232.56 @ 1
thumbzoomsimsupply.comZO-G096718139.571397Schneider Electric39.57 @ 1
Graybar2637401939.78241In StockSquare D (Schneider Electric)39.7824 @ 1
thumbzoomGalco389FXBXC1-240A-MGCR44.691In StockSchneider0.002244.69 @ 1
us.rs-online.com7018528546.521377Schneider Electric/Legacy Relays46.52 @ 1
Future Electronics262152247.73610In StockSchneider Electric47.736 @ 10
thumbzoomNewark55R867354.22180SCHNEIDER ELECTRIC/LEGACY RELAY54.22 @ 1
