Schneider Electric/Magnecraft 389FXBXC1-24D

B00FV1P40E

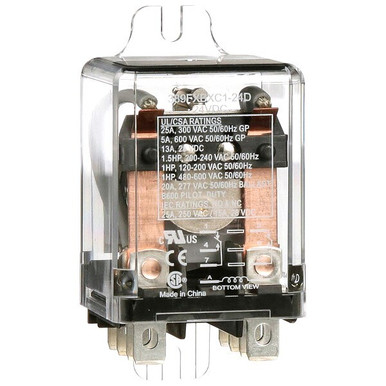

389FXBXC1-24D, Electromechanical Relay 24VDC 400Ohm 13ADC/25AAC DPDT (73.82x38.89x35.72) mm Flange Power Relay

389FXBXC1-24D, Electromechanical Relay 24VDC 400Ohm 13ADC/25AAC DPDT (73.82x38.89x35.72) mm Flange Power Relayzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 300V
Alternate Mfr Part Numb.I897190B
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth1.4 in
Body Depth - Relay1.4 in
Body Height2.9 in
Body Height - Relay2.9 in
Body Width1.53 in
Body Width - Relay1.53 in
BrandSchneider Electric
Coil Resistance400 Ohms
Coil TypePower
Coil Voltage24 VDC
Coil Volts24V DC
Contact Amp Rating (Res.25A @ 300VAC, 13A @ 28V.
Contact Current Rating25 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC
ContactsDPDT
Control Voltage24
Country of Origin00 - Unknown
Current Rating25 A
Current Stock47
DC Contact Rating - Rel.13A @ 28V
Dimensions2.90"H, 1.53"W, 1.40"D
DiodeNo
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
FunctionGeneral Purpose
Gross Weight0 lbs
HP @ 240V1 1/2
Hz50/60
In-stock10
International ShippingNo
Item - RelayEnclosed Power Relay
Item Number389FXBXC1-24D
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider
Manufacturer Part NumberC897190M
Max Current13 A
Mechanical LatchNo
MountingSide Flange, Flange, Si.
Mounting - RelaySide Flange
Mounting StylePanel
Mounting TypePanel Mount
Mpn389FXBXC1-24D
Net Weight0.2063 lbs
Nominal Coil Voltage24 VDC
Number of Electrical Co.8
Number of Pins - Relay8
Number of Poles2
Overall Depth2.9 in
Overall Height - Relay2.9 in
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 W
Primary TypePower Relays
Product CategoriesRelays
Product Header389F Series Power Relay
Product Series389F
Published Coil Voltage24 VDC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
Relay TypeElectromechanical
RoHSNo
RoHs StatusLead free / RoHS Compli.
Safety GuidedNo
Series389F Series
SKUZO-G0810756
StandardsUL, CSA, CE
Status IndicatorNo
SubCategoryElectrical
Switching Voltage600 V
Termination.250 " Flat Blade, QC T.
Voltage Rating600 V
