MAGNECRAFT 389FXCXC1-24D

B0078S7UKU

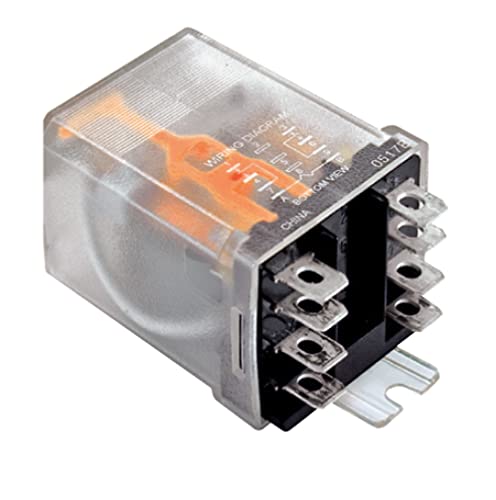

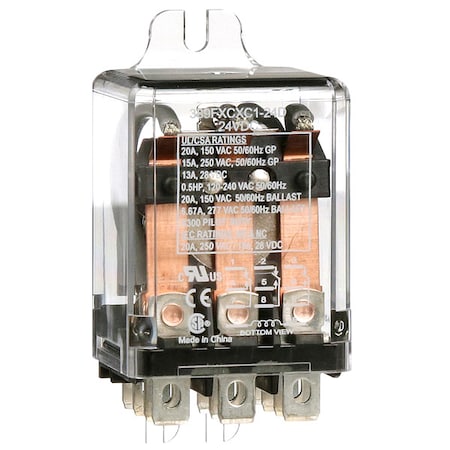

Enclosed Power Relay, 3Pdt, 20A, 24Vdc

Enclosed Power Relay, 3Pdt, 20A, 24Vdczoom

Attributes

Key Value
AC Contact Rating - Rel.20A @ 150V
Alternate Mfr Part Numb.I897200
Alternate Part No.528-389FXCXC1-24D
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth1.4 in
Body Depth - Relay1.4 in
Body Height2.9 in
Body Height - Relay2.9 in
Body Width1.53 in
Body Width - Relay1.53 in
BrandMagnecraft / Schneider .
Coil Resistance400 Ohms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Power
Coil Voltage24 V, 24 VDC
Coil Volts24V DC
Contact Current Rating20 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Alloy
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage24
Current Rating20 A
Current Stock22
DC Contact Rating - Rel.13A @ 28V
DiodeNo
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 389F .
FeaturesFlag Indicator
FunctionGeneral Purpose
Gross Weight0.0022 lbs
HP @ 240V1/2
Hz - Electrical50/60 Hz
In-stock15
International ShippingNo
Item - RelayEnclosed Power Relay
Item Number389FXCXC1-24D
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider Electric, Sch.
Manufacturer Part No.389FXCXC1-24D
Manufacturer Part NumberC897200M
Max Current13 A
Mechanical LatchNo
MountingSide Flange
Mounting - RelaySide Flange
Mounting StyleSocket, Panel
Mounting TypePanel Mount
Mpn389FXCXC1-24D
Net Weight0.0022 lbs
Nominal Coil Voltage24 VDC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.9 in
Overall Height - Relay2.9 in
Pins11
Power Consumption3.5 VA/1.44 W
Power Consumption - Rel.3.5 W
Primary TypePower Relays
ProductPower Relays
Product CategoriesRelays
Product CategoryGeneral Purpose Relays
Product Header389F Series Power Relay
Product Series389F
Published Coil Voltage24 VDC
Push-to-TestNo
Rating @ 24/28/30 VDC13 A
Relay TypeElectromechanical
RoHSNo
RoHs StatusLead free / RoHS Compli.
Safety GuidedNo
Series389F Series
SKUZO-G3267345
StandardsUL, CSA, CE, CE Certifi.
Status IndicatorNo
SubCategoryElectrical
Switching Voltage300 V
Termination.250 " Flat Blade, QC T.
Termination StyleQuick Connect Terminal
TypeStandard
Voltage Rating150 V
