Marathon Electric 4355

B006KM6M9K

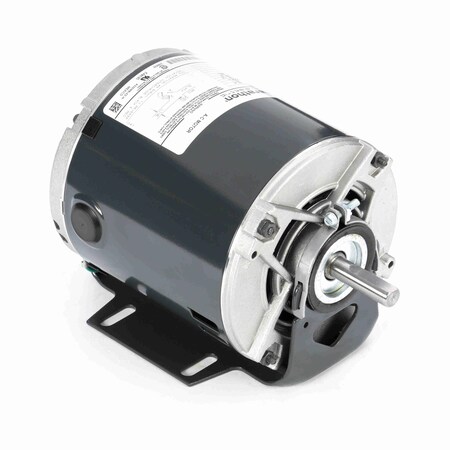

Marathon 4355 48 Frame Open Drip Proof 5KH39QN5525 Belt Drive Motor, 1/4 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Sleeve Bearing, Resilient Ring Mount

Marathon 4355 48 Frame Open Drip Proof 5KH39QN5525 Belt Drive Motor, 1/4 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Sleeve Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.5KH39QN5525
Amps5.1
BearingsBall
BrandMarathon
C-Dimension8.94 (in.)
Catalog Number4355
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.528
Electrical TypeSplit Phase
EnclosureODP
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Misce.
Frame48
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48
Frame Type48
Frequency60
frequency rating:60 Hz
full load current:5.10 A
full load efficiency:52.80 %
Gross Weight0 lbs
HP1/4
Hz60
Insulation ClassB
IP Code-
ip rating:12
Item Number4355
KVA CodeR
ManufacturerMarathon Electric
Manufacturer Model #5KH39QN5525
Manufacturer Part Number5KH39QN5525
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:1/4 hp, 0.25 hp
Motor OrientationAny
motor phase:1 ph
Motor Shell Length5.16"
motor supply voltage:115 V
MountingBase
Mounting OrientationAny
Mounting TypeResilient Base
mounting type:Resilient Base
Net Weight12.5 lbs
Number of Speeds1
ODE Bearing TypeBall
Overall Length8.94"
overall length (c-dimen.8.93 in
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationCounterclockwise/Clockw.
RPM1700 - 1800, 1725
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
service factor:1.35
Shaft Diameter1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension1.5 (in.)
Shaft Length1.5"
Shaft Type-
Ship Weight13 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Type of Overload Protec.NONE
ULRecognized
Voltage115
Volts115
weight:12.5 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com4355135.01In StockMARATHON135.0 @ 1
thumbzoommotionindustries.com00550070163.021In StockMarathon Electric163.02 @ 1
thumbzoomGalco4355-MARA177.241In StockMarathon Electric12.5177.24 @ 1
thumbzoomMRO Supply2269667180.281In StockMarathon Electric180.28 @ 1
us.rs-online.com72650115199.631In StockMarathon Motors199.63 @ 1
thumbzoomemotorpro.com4355219.351In StockMarathon13.0219.35 @ 1
thumbzoommidwestapplianceparts.com4355-MT-P227.51In StockMarathon227.5 @ 1
thumbzoomDreisilkerMA-RBC-4355232.791In StockMarathon232.79 @ 1
thumbzoomindustrialstores.com4355243.641In Stock10Marathon Motors243.64 @ 1
thumbzoomZoroG2533359246.391In StockMarathon246.39 @ 1
