Marathon Electric B193

B00C0YSVB4

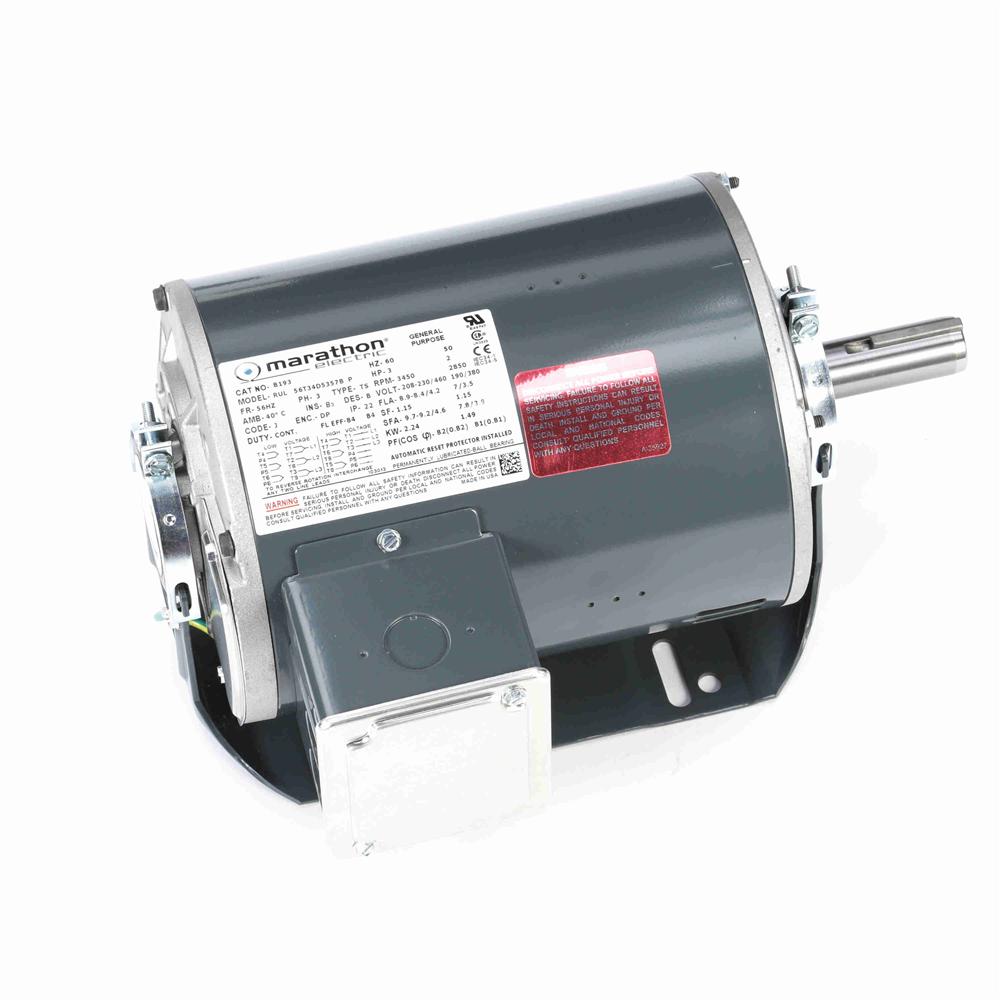

Marathon B193 56HZ Frame Open Drip Proof 56T34D5357 Belt Drive Motor, 3 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B193 56HZ Frame Open Drip Proof 56T34D5357 Belt Drive Motor, 3 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Amps8.9-8.4/4.2
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Duty CycleContinuous
Efficiency0.84
Efficiency %84 %
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Family SeriesMarathon Electric Motors
Frame56HZ
Frequency50 Hz, 60 Hz
Gross Weight0 lbs
Horsepower3 hp
HP3
Hz60
Insulation ClassB
Item NumberB193
Kilowatts2.2 kW
ManufacturerMarathon Electric
Manufacturer Model #056T34D5357
Manufacturer Part Number056T34D5357
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Shell Length7.56"
MountingBase
Mounting OrientationHorizontal
Mounting TypeResilient Base
NEMA Frame56HZ
Net Weight35 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Overall Length12.22 ", 12.22"
Phase3
Product TypeThree Phase
RotationReversible
RPM3,450 RPM, 3400 - 3600,.
Service Factor1.15
Shaft Diameter0.63 ", 5/8"
Shaft Length2.28"
Ship Weight34 lbs.
Thermal ProtectionAutomatic
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoB193-MARA128.141In StockMarathon Electric35.0128.14 @ 1
thumbzoomMRO Supply2269634128.821In StockMarathon Electric128.82 @ 1
thumbzoomelectricmotorwholesale.comB193371.01In StockMARATHON371.0 @ 1
thumbzoomcshincorporated.comMB193534.551In StockMarathon35.0534.55 @ 1
thumbzoomemotorpro.comB193651.451In StockMarathon34.0651.45 @ 1
