Marathon Electric B304

B0042GGUZM

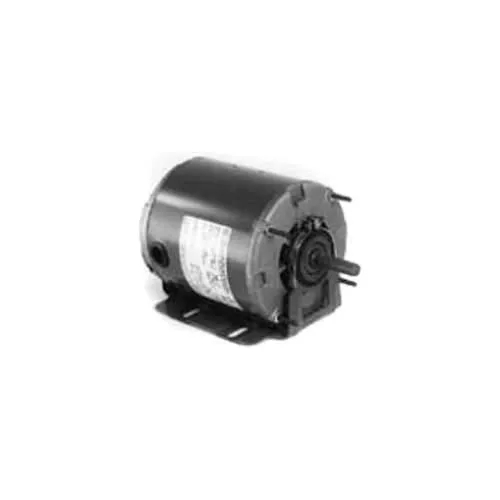

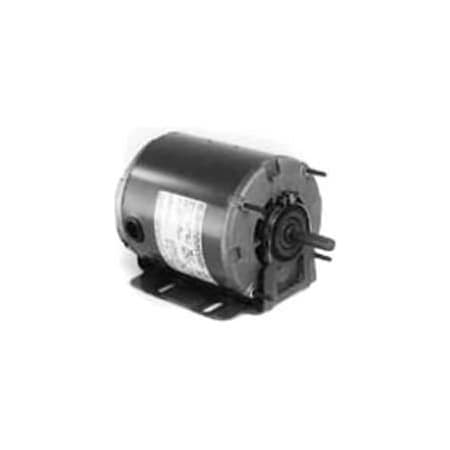

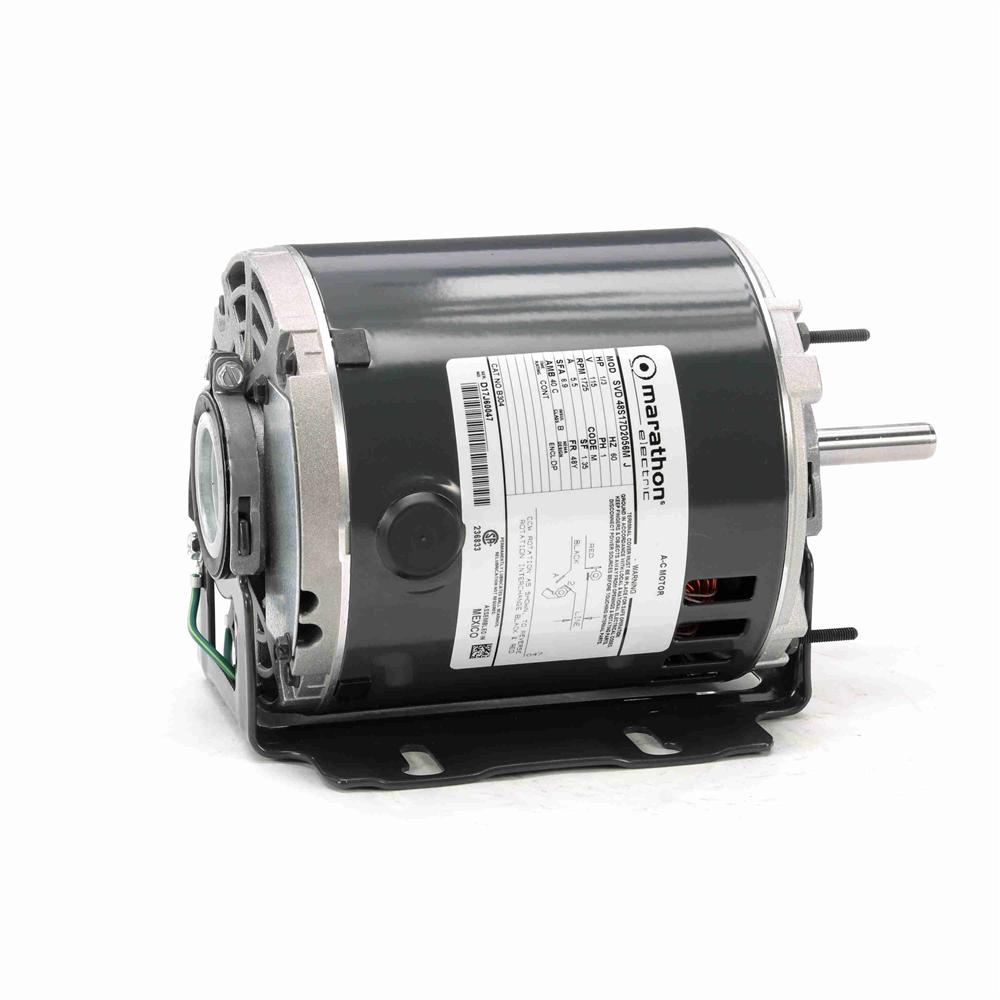

Marathon B304 HVAC Motor

Marathon B304 HVAC Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2056
Amps5.5
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1725 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.32 (in.)
Catalog NumberB304
CEN
CompositionRolled Steel
Country of Origin (subj.United States, Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceMA#B304
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48YZ
Frame Type48Y
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:5.50 A
full load efficiency:64.00 %
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
insulation class:B
IP Code22
ip rating:12
Item NumberB304
Kilowatts0.25 kW
KVA CodeM
ManufacturerMarathon Electric
Manufacturer Model #048S17D2056
Manufacturer Part Number048S17D2056
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp, 1/3 hp
Motor OrientationHorizontal
motor phase:1 ph
motor supply voltage:115 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
mounting type:Resilient Base/Extended.
NEMA Frame48Y
Net Weight15 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.32 ", 9.32"
overall length (c-dimen.9.32 in
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
service factor:1.35
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension2.01 (in.)
Shaft Length2.01"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Type of Overload Protec.No
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115
weight:15 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netB304153.861In StockMarathon Motors153.86 @ 1
thumbzoomelectricmotorwholesale.comB304154.01In StockMARATHON154.0 @ 1
thumbzoommotionindustries.com02453545155.941In StockMarathon Electric155.94 @ 1
thumbzoomGalcoB304-MARA165.171In StockMarathon Electric15.0165.17 @ 1
thumbzoomemotorpro.comB304184.321In StockMarathon15.0184.32 @ 1
us.rs-online.com72650154186.041In StockMarathon Motors186.04 @ 1
thumbzoommidwestapplianceparts.comB304-MT-P191.171In StockMarathon191.17 @ 1
thumbzoomVoomi SupplyB304201.061In StockMarathon Motors201.06 @ 1
thumbzoomDreisilkerMA-RBC-B304202.781In StockMarathon202.78 @ 1
thumbzoomNational Supply NetworkB871664207.41In StockMARATHON MOTORS207.4 @ 1
thumbzoomindustrialstores.comB304209.312Marathon Motors209.3 @ 1
thumbzoomMRO Supply2269645210.41In StockMarathon Electric210.4 @ 1
thumbzoomGlobal IndustrialWBB871664219.951In StockMarathon Motors219.95 @ 1
thumbzoomptacsolutions.comB304234.0212Marathon Motors234.02 @ 1
kirbyrisk.com504842240.11In StockMarathon240.1 @ 1
thumbzoomZoroG704954392310.381In StockMarathon Motors310.38 @ 1
uri.comB304487.841In StockMarathon15.0487.84 @ 1
