Marathon Electric B322

B0042GKJY0

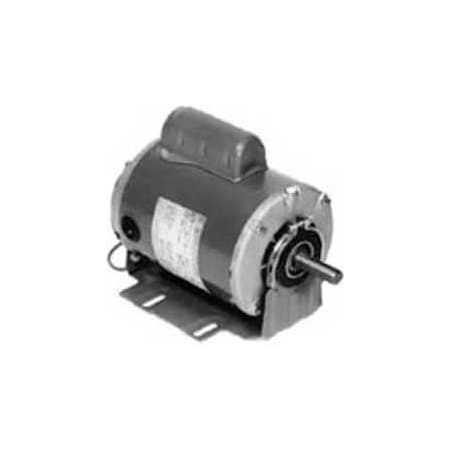

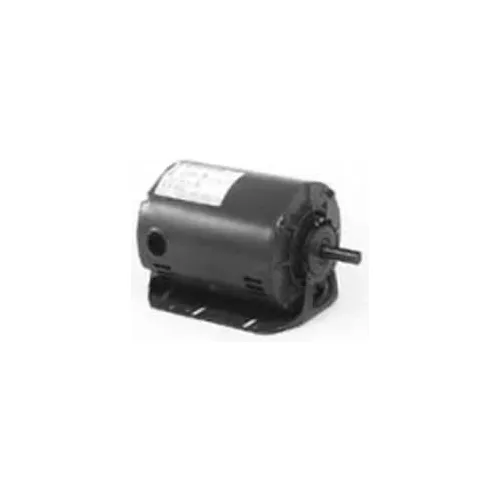

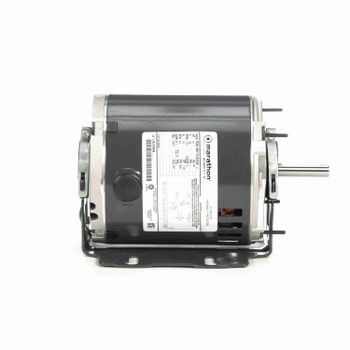

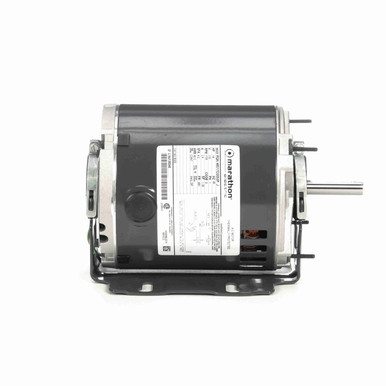

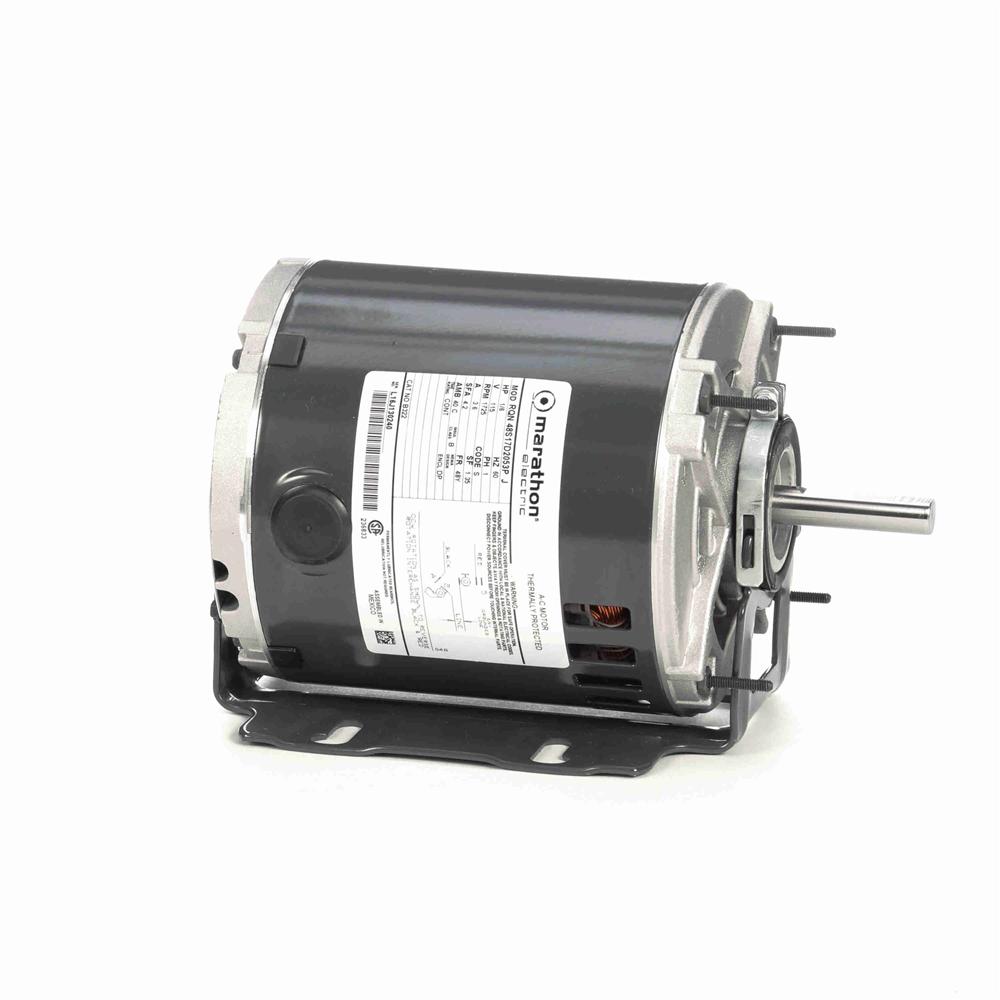

Marathon B322 Belt Drive Blower Motor, Single/Split Phase, Protection - Auto, 1/6 hp, 1725 RPM, 115V, 3.6 amp

Marathon B322 Belt Drive Blower Motor, Single/Split Phase, Protection - Auto, 1/6 hp, 1725 RPM, 115V, 3.6 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2053
Amps3.6
BearingsBall
BrandMarathon
C-Dimension9.32 (in.)
Catalog NumberB322
CEY
Country of Origin (subj.Mexico
CSAY
Current Rating3.6 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency55, 0.55
Electrical TypeSplit Phase
EnclosureODP
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower Rating0.17 HP
HP1/6
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code22
KVA CodeS
Manufacturer Model #048S17D2053
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.32"
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725 RPM, 1725, 1700 - .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.88 (in.)
Shaft Length1.88"
Shaft TypeSingle Special Extension
Ship Weight13 lbs.
Special FeaturesService Factor - 1.35
Speeds1
StandardsUL Recognized
Supply Voltage115 VAC
Thermal ProtectionAutomatic
TypeSplit Phase
Type of Overload Protec.Automatic
ULRecognized
UPC Code722856039361
Voltage115
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netB322131.911In StockMarathon Motors131.91 @ 1
thumbzoomcshincorporated.comMB322133.11In StockMarathon15.0133.1 @ 1
thumbzoomelectricmotorwholesale.comB322135.01In StockMARATHON135.0 @ 1
thumbzoomapexindustrialautomation.comB322137.95168Marathon137.95 @ 1
AmazonTPB0042GKJY0140.181In Stock2Marathon Electric140.18 @ 1
thumbzoomGalcoB322-MARA141.581In StockMarathon Electric141.58 @ 1
thumbzoomemotorpro.comB322158.031In StockMarathon13.0158.03 @ 1
us.rs-online.com72238214167.8312Marathon Motors167.83 @ 1
thumbzoomNational Supply NetworkB871674171.51In StockMARATHON MOTORS171.5 @ 1
thumbzoomDreisilkerMA-RBC-B322173.811In StockMarathon173.81 @ 1
thumbzoomMRO Supply2269650179.841In StockMarathon Electric179.84 @ 1
thumbzoommidwestapplianceparts.comB322-MT-P183.661In StockMarathon183.66 @ 1
kirbyrisk.com505023205.81In StockMarathon205.8 @ 1
thumbzoomGuardianMARSB322209.321In StockMarathon209.32 @ 1
thumbzoomZoroG504954349311.011In StockMarathon Motors311.01 @ 1
thumbzoomGlobal IndustrialWBB871607375.951In StockMarathon Motors375.95 @ 1
