Marathon Electric B401

B01EIZ6HKY

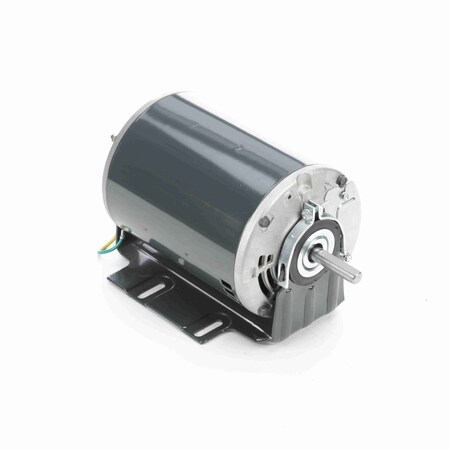

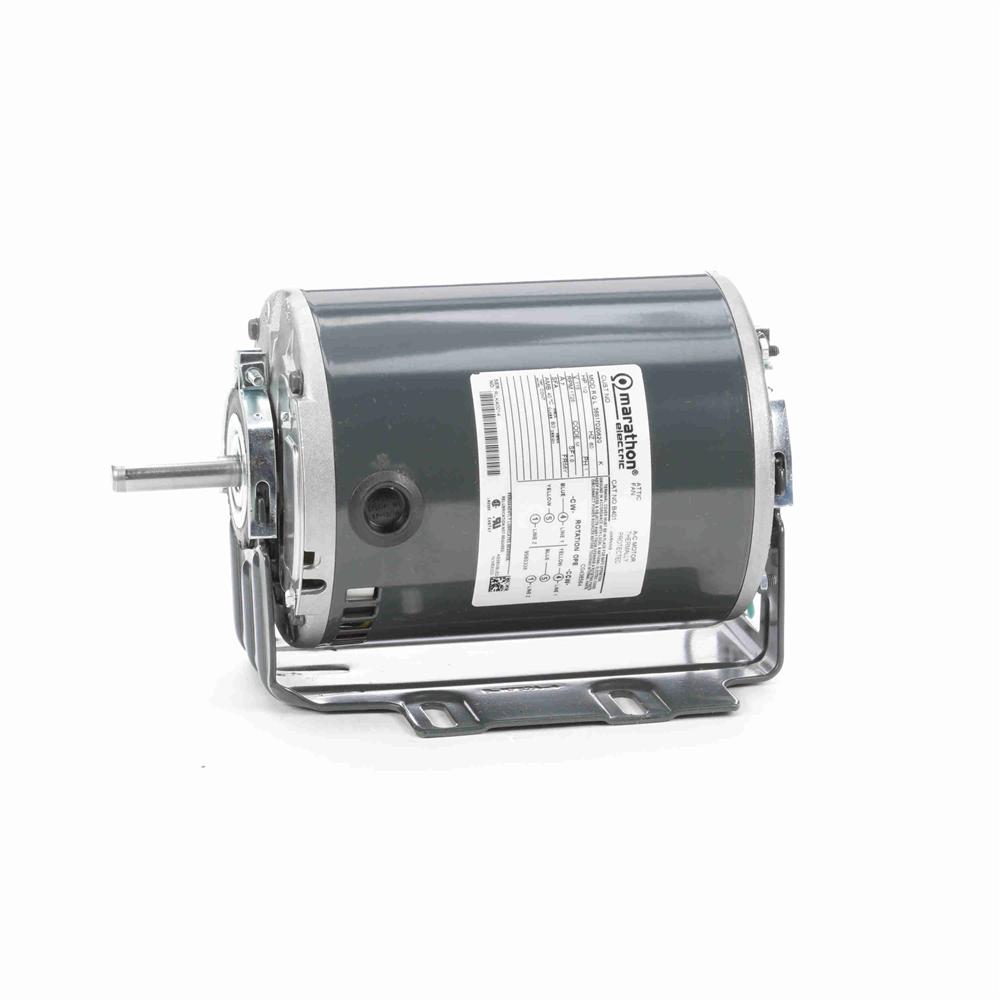

Marathon B401 56S17D2062 Series Attic Fan Motor, Totally Enclosed 56YZ Frame, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Base, 1/2 hp, 1800 RPM, 115 VAC

Marathon B401 56S17D2062 Series Attic Fan Motor, Totally Enclosed 56YZ Frame, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Base, 1/2 hp, 1800 RPM, 115 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.056S17D2062
Amps7.0, 7
applications:Attic Fan
ApprovalsCE, CSA, UR
base rpm:1725 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.50 (in.)
Catalog NumberB401
CEY
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.68
Efficiency %68 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DPAO (Drip-Proof Air Ov.
Family SeriesMarathon Electric Motors
Frame56Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56YZ
Frame Type56Y
Frequency60, 60 Hz
frequency rating:60 Hz
Full Load Current7 A
full load current:7.80 A
full load efficiency:68.00 %
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
insulation class:B
IP Code22
ip rating:12
Item NumberB401
Kilowatts0.37 kW
KVA CodeM
ManufacturerMarathon Electric
Manufacturer Model #056S17D2062
Manufacturer Part Number056S17D2062
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Ventilation Fan Motor
motor horsepower:0.50 hp, 1/2 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length6.5"
motor supply voltage:115 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeResilient Base
mounting type:Resilient Base
NEMA Frame56Y
Net Weight18 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.5 ", 10.5"
overall length (c-dimen.10.47 in
Phase1
Product CategoryHVAC/R Motors > HVAC/R.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.50 in
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight18 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
TypeHVAC/R Motors, NEMA Mot.
Type of Overload Protec.Automatic
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115
weight:18 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomasapelectricmotors.comMARB401152.821In StockMARATHON152.82 @ 1
thumbzoommotionindustries.com04228219182.531In StockMarathon Electric182.53 @ 1
thumbzoomGalcoB401-MARA198.431In StockMarathon Electric18.0198.43 @ 1
thumbzoomMRO Supply2269392200.361In StockMarathon Electric200.36 @ 1
thumbzoomapexindustrialautomation.comB401201.08132Marathon201.08 @ 1
us.rs-online.com72650270223.511In StockMarathon Motors223.51 @ 1
thumbzoomDreisilkerMA-RBC-B401244.681In StockMarathon244.68 @ 1
thumbzoomemotorpro.comB401250.71In StockMarathon18.0250.7 @ 1
thumbzoommidwestapplianceparts.comB401-MT-P260.01In StockMarathon260.0 @ 1
thumbzoomZoroG2530321268.831In Stock10Marathon268.83 @ 1
thumbzoomGuardianMARSB401307.821In StockMarathon307.82 @ 1
