Marathon B608

B004QXTHN8

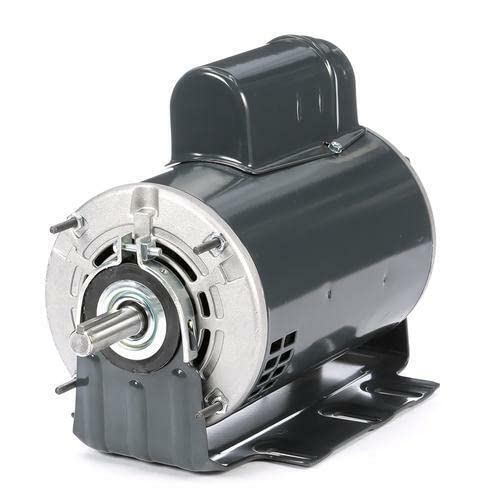

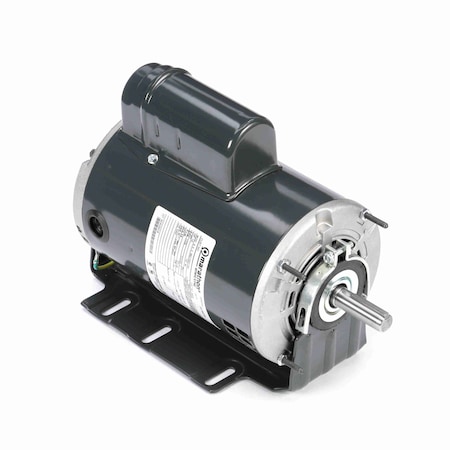

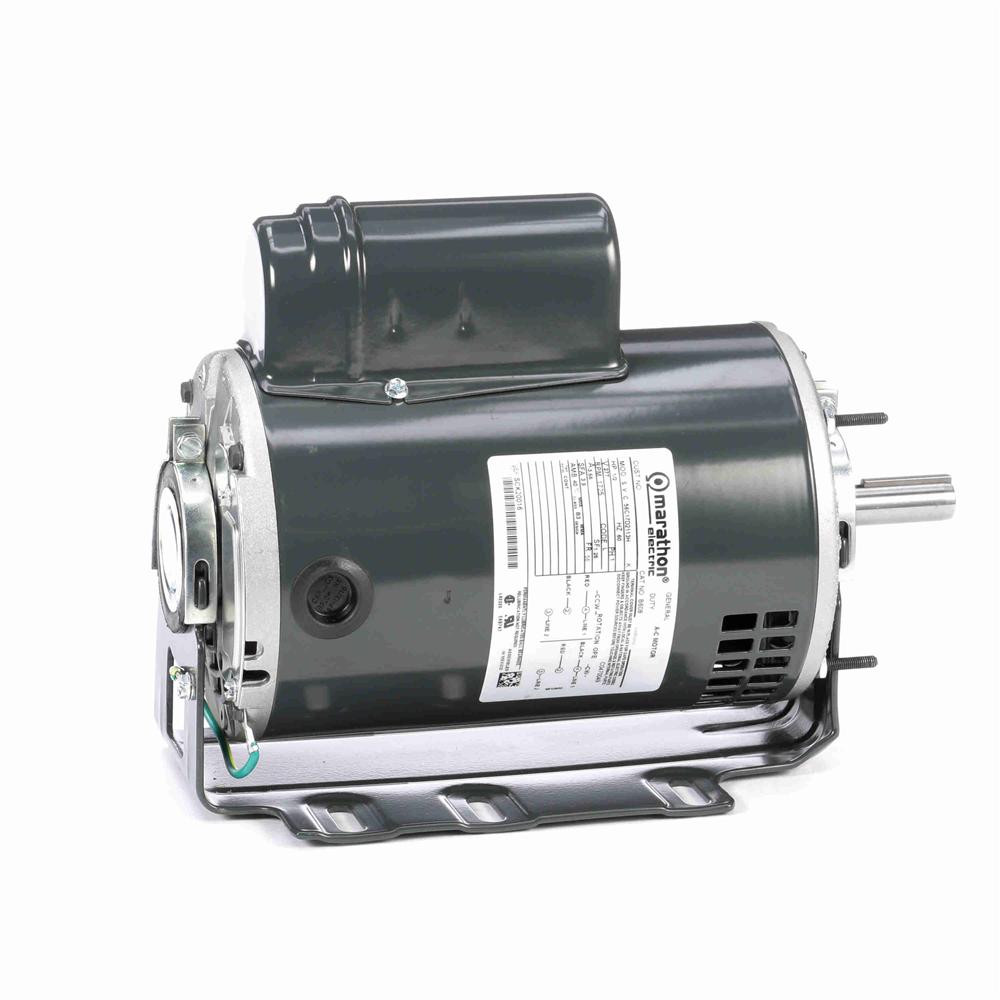

Marathon B608 56 Frame Open Drip Proof 56C17D2113 Belt Drive Motor, 1/2 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B608 56 Frame Open Drip Proof 56C17D2113 Belt Drive Motor, 1/2 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D2113
Amps3.6, 3.55
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension11.72 (in.)
Catalog NumberB608
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.66
Efficiency %66 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code22
Item NumberB608
Kilowatts0.37 kW
KVA CodeL
ManufacturerMarathon Electric
Manufacturer Model #056C17D2113
Manufacturer Part Number056C17D2113
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationHorizontal
Motor Shell Length7.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame56
Net Weight28 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.72", 11.72 "
Package Quantity1
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeT
Ship Weight23 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage277
Voltage (AC)277 VAC
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB608236.01In StockMARATHON236.0 @ 1
thumbzoomapexindustrialautomation.comB608333.351204Marathon333.35 @ 1
thumbzoomGlobal IndustrialWBB871750335.951In Stock40Marathon Motors335.95 @ 1
thumbzoomGalcoB608-MARA342.121In StockMarathon Electric28.0342.12 @ 1
thumbzoomcshincorporated.comMB608346.421In StockMarathon27.0346.42 @ 1
thumbzoomMRO Supply2269641346.591In StockMarathon Electric346.59 @ 1
thumbzoomktool.netB608351.751In StockMarathon Motors351.75 @ 1
us.rs-online.com72650212385.371In StockMarathon Motors385.37 @ 1
thumbzoomemotorpro.comB608408.331In StockMarathon23.0408.33 @ 1
thumbzoomZoroG2530778416.991In StockMarathon416.99 @ 1
thumbzoomDreisilkerMA-RBC-B608423.261In StockMarathon423.26 @ 1
thumbzoommidwestapplianceparts.comB608-MT-P433.2911Marathon433.29 @ 1
thumbzoomNational Supply NetworkB871813453.731In StockMARATHON MOTORS453.73 @ 1
cbtcompany.comB608457.071In StockMarathon Electric Motors457.07 @ 1
ptacsolutions.com300005807462.471In StockMARATHON ELECTRIC462.47 @ 1
