Marathon Electric B609

B007ZQLLSW

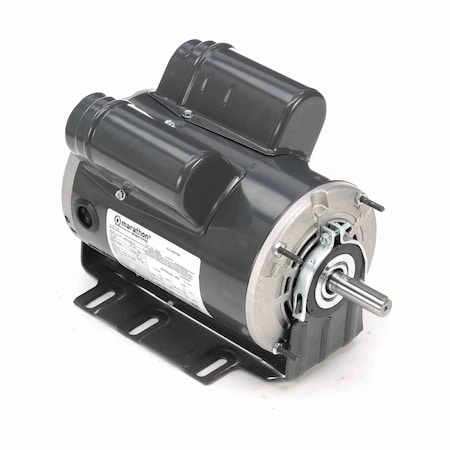

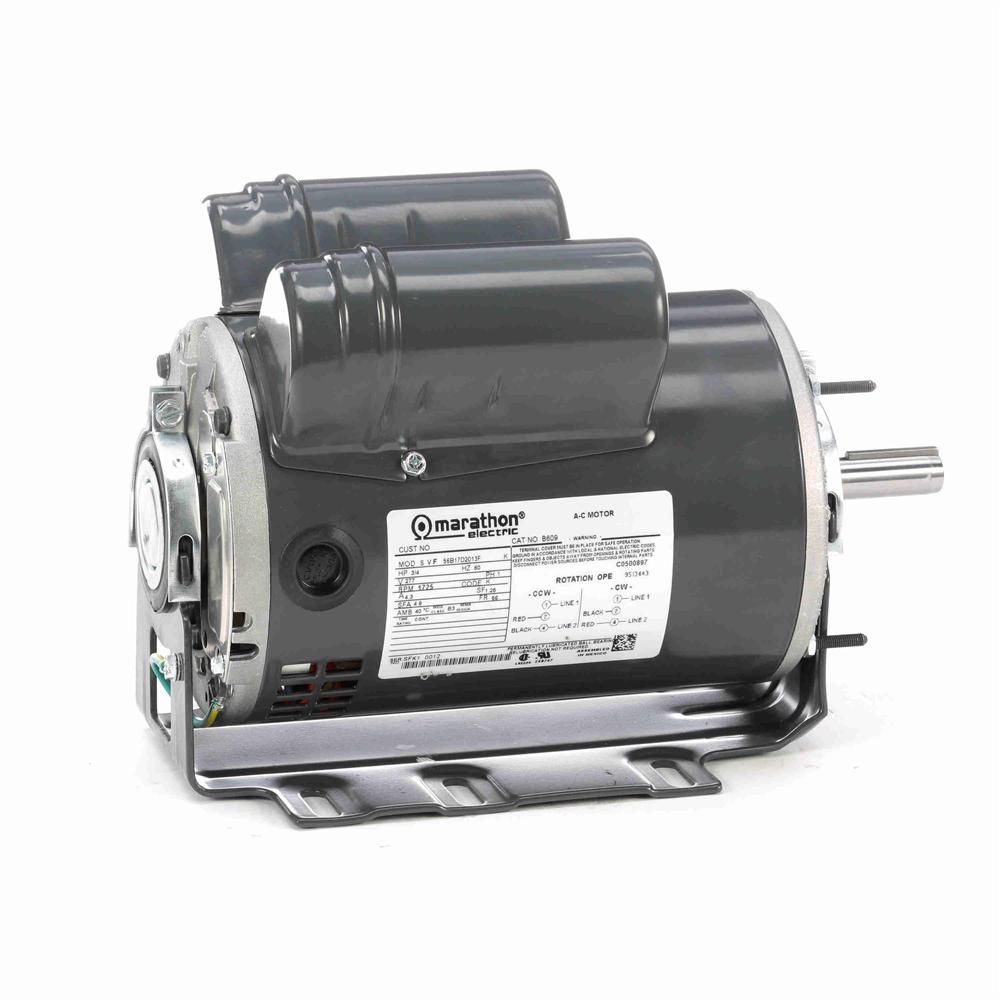

Marathon B609 56 Frame Open Drip Proof 56B17D2013 Belt Drive Motor, 3/4 hp, 1725 rpm, 277 VAC, 1 Phase, 1 Speed, Ball Bearing, Resilient Ring Mount, Capacitor Start

Marathon B609 56 Frame Open Drip Proof 56B17D2013 Belt Drive Motor, 3/4 hp, 1725 rpm, 277 VAC, 1 Phase, 1 Speed, Ball Bearing, Resilient Ring Mount, Capacitor Startzoom

Attributes

Key Value
Alternate Mfr Part Numb.056B17D2013
Amps4.3
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1725 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension11.47 (in.)
Catalog NumberB609
CEN
CompositionRolled Steel
CSAY
Current Rating4.3 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.72, 72
Efficiency %72 %
Electrical TypeCapacitor Start Capacit.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame56
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56
Frame Type56
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:4.30 A
full load efficiency:72.00 %
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
IP Code22
ip rating:12
Item NumberB609
Kilowatts0.56 kW
KVA CodeK
ManufacturerMarathon Electric
Manufacturer Model #056B17D2013
Manufacturer Part Number056B17D2013
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter6-1/2"
motor horsepower:0.75 hp, 3/4 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length7.5"
motor supply voltage:277 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
mounting type:Resilient Base/Extended.
NEMA Frame56
Net Weight26 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.47", 11.47 "
overall length (c-dimen.11.47 in
Package Quantity1
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start/Capacit.
RotationReversible, Selective C.
RPM1725 rpm, 1725, 1700 - .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
service factor:1.25
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.63 in
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeT
Ship Weight27 lbs.
Special FeaturesService Factor - 1.25
Speeds1
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage277 VAC
synchronous rpm:1800 rpm
TypeCapacitor Start Capacit.
Type of Overload Protec.No
ULRecognized
UPC Code722856040374
Voltage277
Voltage (AC)277 VAC
Volts277
weight:27 lbs
