Marathon H236

B004VRZROW

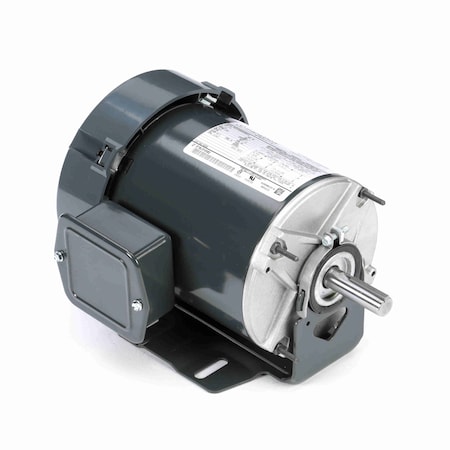

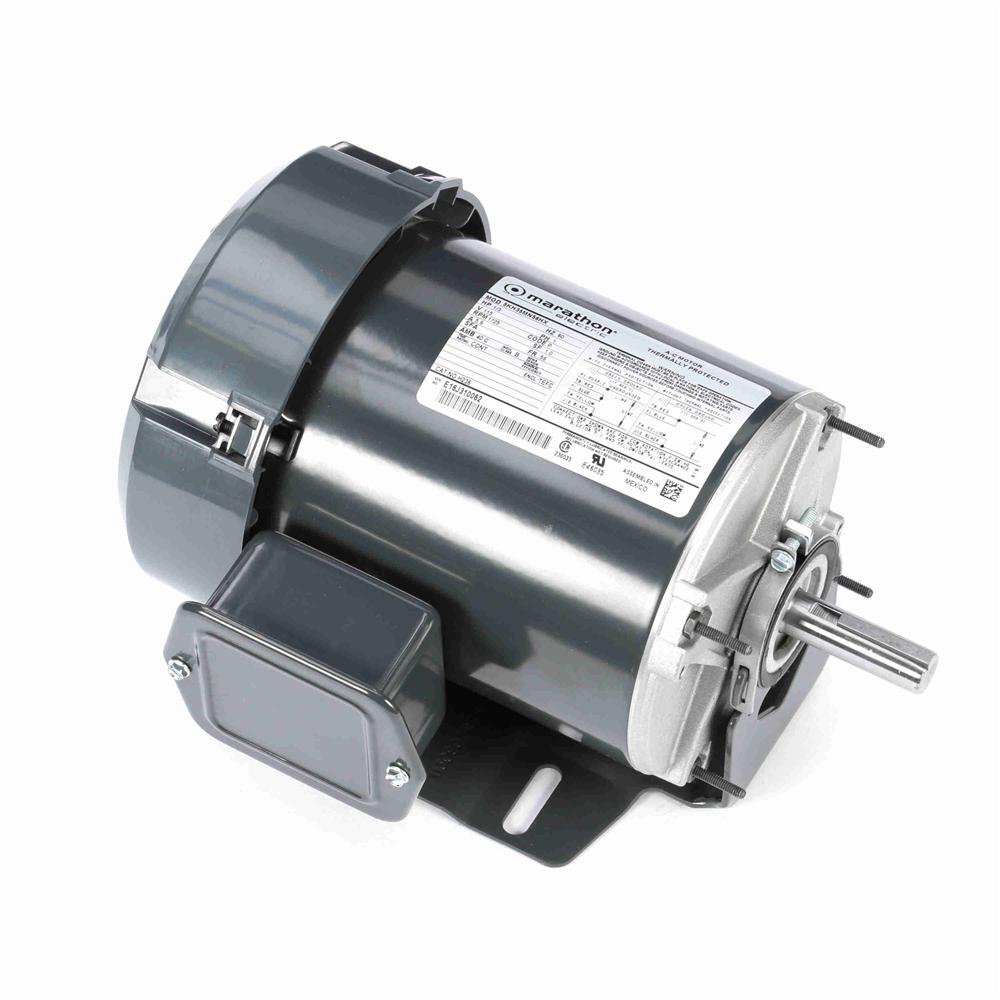

Marathon H236, 5KH35MN56X, 1/3 Hp, 115, 56 FR, 1725 Rpm, Totally Enclosed Motor

Marathon H236, 5KH35MN56X, 1/3 Hp, 115, 56 FR, 1725 Rpm, Totally Enclosed Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.5KH35MN56X
Amps5.9
BearingsBall
BrandMarathon
C-Dimension10.9 (in.)
Catalog NumberH236
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceH236
DutyContinuous
Duty CycleContinuous
Efficiency0.62
Electrical TypeSplit Phase
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60
Gross Weight0 lbs
HP1/3
Hz60
Insulation ClassB
IP Code-
KVA CodeP
Manufacturer Model #5KH35MN56X
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationANY
Motor Shell Length5.79"
MountingBase
Mounting OrientationANY
Mounting TypeResilient Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.9"
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Countercloc.
RPM1700 - 1800, 1725
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension1.88 (in.)
Shaft Length1.88"
Shaft Type-
Ship Weight20 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.AUTO
ULRecognized
Voltage115
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comH236180.01In StockMARATHON180.0 @ 1
thumbzoomGalcoH236-MARA250.411In StockMarathon Electric250.41 @ 1
thumbzoomMRO Supply2269764253.171In StockMarathon Electric253.17 @ 1
thumbzoomapexindustrialautomation.comH236253.75161Marathon253.75 @ 1
thumbzoomSquare OneH236268.641In StockMARATHON268.64 @ 1
us.rs-online.com72650157282.061In StockMarathon Motors282.06 @ 1
thumbzoomDreisilkerMA-RBC-H236309.191In StockMarathon309.19 @ 1
thumbzoomemotorpro.comH236309.971In StockMarathon20.0309.97 @ 1
thumbzoomZoroG2530312315.931In Stock10Marathon315.93 @ 1
thumbzoomNational Supply NetworkB871973318.941In StockMARATHON MOTORS318.94 @ 1
thumbzoommidwestapplianceparts.comH236-MT-P321.4911Marathon321.49 @ 1
