Marathon N612A

mpnN612A
brandname: Marathon
manufacturername: Marathon

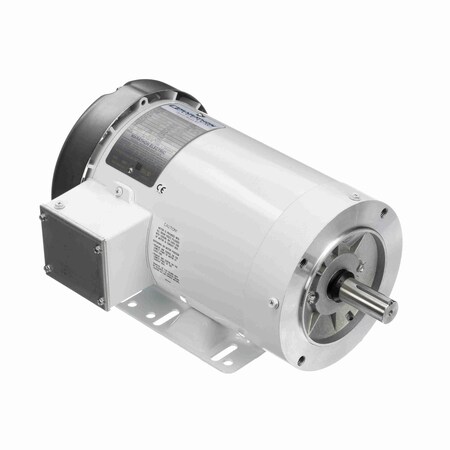

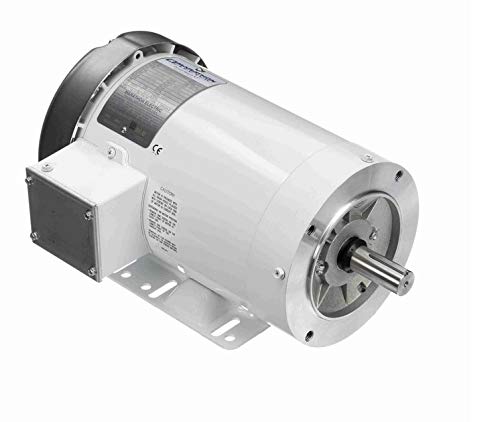

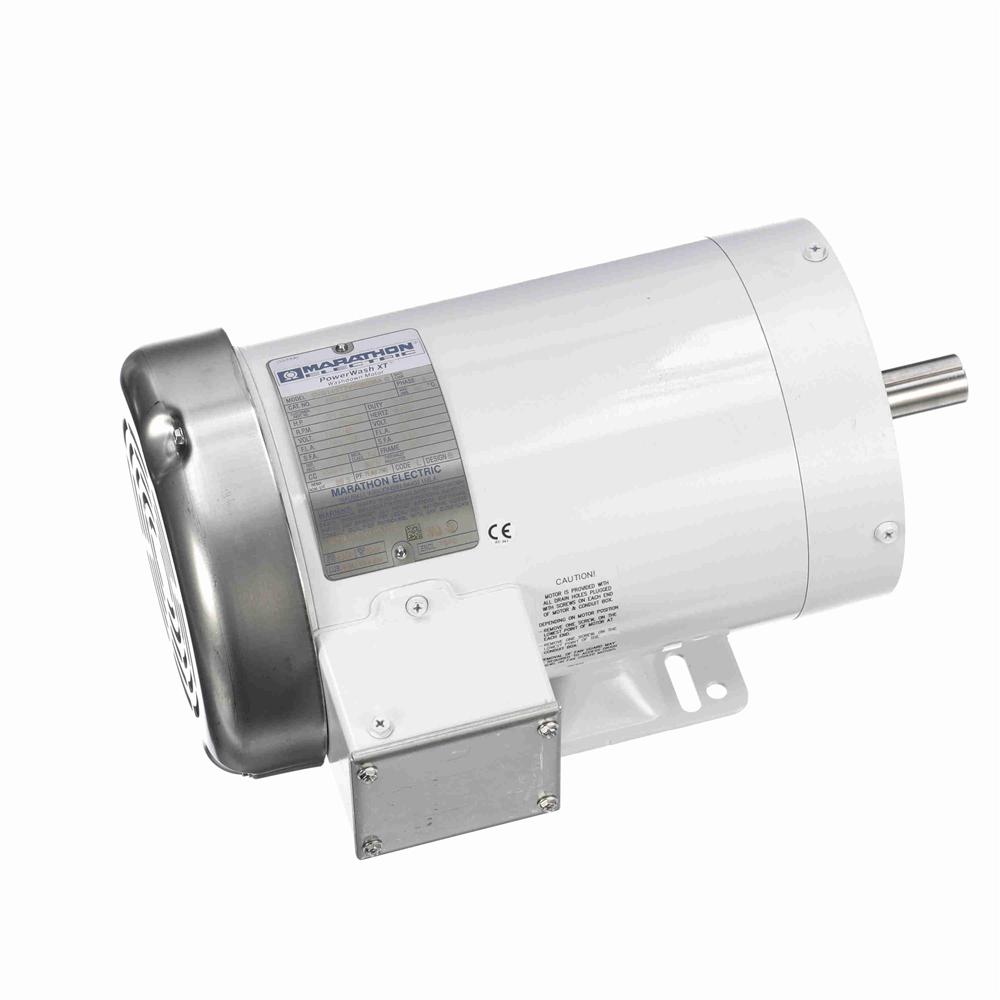

2 hp 1800 RPM 3-Phase 145TC Frame TEFC (with base) 208-230/460V Marathon Motor # N612A

2 hp 1800 RPM 3-Phase 145TC Frame TEFC (with base) 208-230/460V Marathon Motor # N612A

zoom

Brand: Marathon
PartNumber: N612A
PackageQuantity: 1
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Amps	5.8/2.9
Approvals	CE, CSA, UR
Bearing Type	Ball
Bearings	Ball
Composition	Rolled Steel
Country of Origin (subj.	United States
duty / condition type:	Inverter Duty
Duty Cycle	Continuous
Efficiency	0.865
Efficiency %	86.5 %
Enclosure	Totally Enclosed Fan Co.
Enclosure Material	Steel
Enclosure Type	TEFC (Totally Enclosed .
enclosure type:	TEFC (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	145TC
frame material:	Rolled Steel
frame size:	145TC
Frequency	60 Hz
frequency rating:	60 Hz
full load efficiency:	86.50 %
Gross Weight	0 lbs
Horsepower	2 hp
HP	2
Hz	60
Insulation Class	F
insulation class:	F
ip rating:	55
Item Number	N612A
Kilowatts	1.5 kW
Manufacturer	Marathon Electric
Manufacturer Model #	145TTWR6026
Manufacturer Part Number	145TTWR6026
Maximum Ambient Tempera.	40? C
motor category:	General Purpose Motor (.
motor horsepower:	2.00 hp, 2 hp
motor phase:	3 ph
Motor Shell Length	8"
motor supply voltage:	208-230/460 V
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	Rigid
mounting type:	Rigid Base/C-Face Flange
NEMA Frame	145TC
Net Weight	48 lbs
Number of Poles	4
Number of Speeds	1
Overall Length	13.72 ", 13.72"
overall length (c-dimen.	13.75 in
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	1745, 1,745 RPM
Service Factor	1.15
service factor:	1.15
Shaft Diameter	0.88 ", 7/8"
shaft diameter:	0.88 in
Shaft Length	2"
Ship Weight	48 lbs.
standards met:	UL, CSA
synchronous rpm:	1800 rpm
Voltage (AC)	230 VAC, 460 VAC
Volts	230, 460
weight:	46 lbs

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	N612A	566.0	1	2		MARATHON		566.0 @ 2
	AmazonTP	B006KM6T5C	695.29	1	2	2	Marathon		695.29 @ 2
	emotorpro.com	N612A	731.03	1	2		Marathon	48.0	731.03 @ 2
	motionindustries.com	04738059	832.77	1	2		Marathon Electric		832.77 @ 2
	Galco	N612A-MARA	1072.0	1	2		Marathon Electric	48.0	1072.0 @ 2
	Zoro	G1732148	1168.3	1	2	5	Marathon		1168.3 @ 2
