Marathon Electric R328A

B006KM6S4O

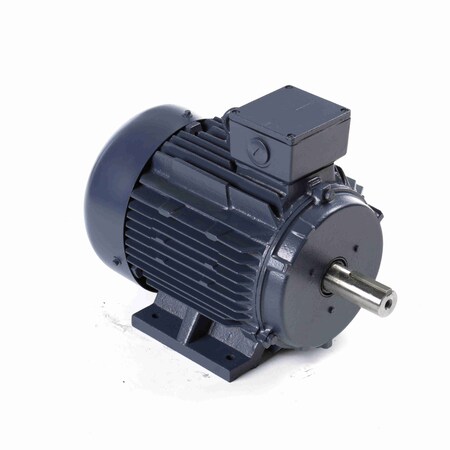

Marathon R328A Motor

Marathon R328A Motorzoom

Attributes

Key Value
Amps18.4/9.2 A
applications:Pumps, Compressors, Con.
ApprovalsCE, UR
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.China
Duty CycleContinuous
Efficiency92.4%
Efficiency %92.4 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame132S
frame material:Cast Iron
frame size:132S
Frequency60 Hz
frequency rating:50/60 Hz
full load efficiency:91.70 %
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7 1/2, 7-1/2
Hz60
IEC Frame132S
Insulation ClassF
insulation class:F
ip rating:55
Item NumberR328A
Kilowatts5.6 kW
kw:5.60 kW
ManufacturerMarathon Electric
Manufacturer Model #132STFC6526
Manufacturer Part Number132STFC6526
Maximum Ambient Tempera.40? C
motor phase:3 ph
motor supply voltage:200/400//230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base/B3 Flange
Net Weight178 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Overall Length18.26", 18.26 "
Phase3
Product Type3 Phase
RotationReversible
RPM1700 - 1800, 1770, 1,77.
Service Factor1.15
service factor:1.15
Shaft Diameter38mm, 1.5 "
shaft diameter:33 mm
Shaft Length80mm
Ship Weight178 lbs.
standards met:UL, CSA
synchronous rpm:1800 rpm
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460
weight:150 g

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR328A793.01In StockMARATHON793.0 @ 1
thumbzoomMRO Supply2269045976.471In StockMarathon Electric976.47 @ 1
emotorpro.comR328A994.581In StockMarathon178.0994.58 @ 1
thumbzoommotionindustries.com047382451107.341In StockMarathon Electric1107.34 @ 1
thumbzoomGalcoR328A-MARA1118.51In StockMarathon Electric178.01118.5 @ 1
thumbzoomcbtcompany.comR328A1328.721In StockMarathon Electric Motors1328.72 @ 1
thumbzoomZoroG26262581496.551In Stock10Marathon1496.55 @ 1
