Marathon Electric X459

B007ZQLYV6

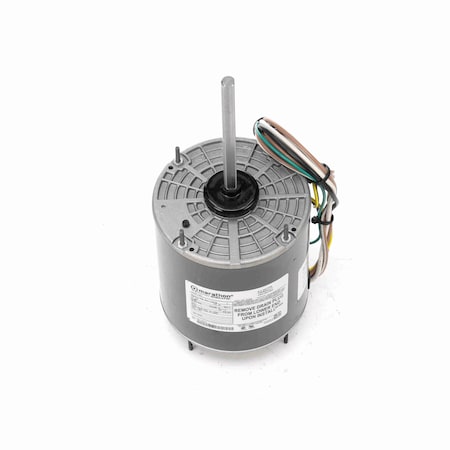

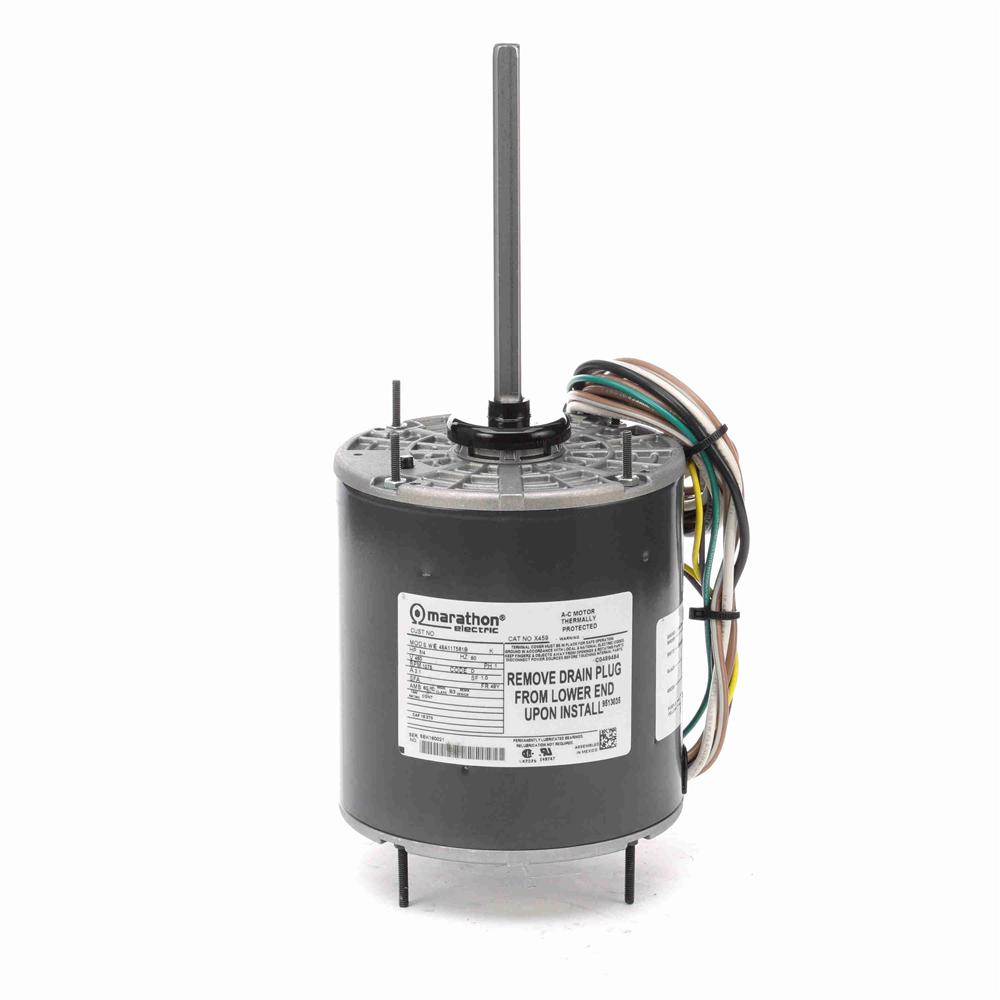

Marathon X459 48Y Frame Condenser Fan/Heat Pump Motor, Single Phase PSC, Shaft Dimension 1/2" x 6", 2.1 amp, 3/4 hp, 1075/1 RPM, 460V

Marathon X459 48Y Frame Condenser Fan/Heat Pump Motor, Single Phase PSC, Shaft Dimension 1/2" x 6", 2.1 amp, 3/4 hp, 1075/1 RPM, 460Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11T581
Amps2.1
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.50 (in.)
Capacitor15MFD/370VAC Required
Catalog NumberX459
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
Current Rating2.1 A
DE Bearing TypeBall
DEM ReferenceMA#X459
DutyContinous
Duty CycleContinuous
Efficiency0.68, 68
Efficiency %68 %
Electrical TypePermanent Split Capacit.
EnclosureTEAO, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEAO (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code43
Item NumberX459
Kilowatts0.56 kW
KVA CodeD
ManufacturerMarathon Electric
Manufacturer Model #048A11T581
Manufacturer Part Number048A11T581
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.5"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Net Weight23 lbs
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.5", 12.5 "
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 RPM, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension6.06 (in.)
Shaft Length6.06"
Shaft TypeSingle Special Extension
Ship Weight23 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized
Supply Voltage460 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856037923
Voltage460
Voltage (AC)460 VAC
Volts460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX459211.01In StockMARATHON211.0 @ 1
thumbzoomasapelectricmotors.comMARX459213.41In StockMARATHON213.4 @ 1
thumbzoomGalcoX459-MARA244.81In StockMarathon Electric23.0244.8 @ 1
thumbzoomapexindustrialautomation.comX459248.07111Marathon248.07 @ 1
thumbzoomemotorpro.comX459273.21In StockMarathon23.0273.2 @ 1
thumbzoommidwestapplianceparts.comX459-MT-P283.3411Marathon283.34 @ 1
thumbzoomGlobal IndustrialWBB871670286.951In StockMarathon Motors286.95 @ 1
us.rs-online.com72237961290.171In StockMarathon Motors290.17 @ 1
thumbzoomNational Supply NetworkB871697299.081In StockMARATHON MOTORS299.08 @ 1
thumbzoomDreisilkerMA-RBC-X459300.551In StockMarathon300.55 @ 1
thumbzoomindustrialstores.comX459303.4411Marathon Motors303.44 @ 1
thumbzoomMRO Supply2269491304.251In StockMarathon Electric304.25 @ 1
thumbzoomnorthstock.comX459329.631In StockMarathon329.63 @ 1
ptacsolutions.comX459349.291In StockMarathon Motors349.29 @ 1
thumbzoomZoroG2530653362.121In Stock10Marathon362.12 @ 1
