Marathon Y994

B007ZQPC0U

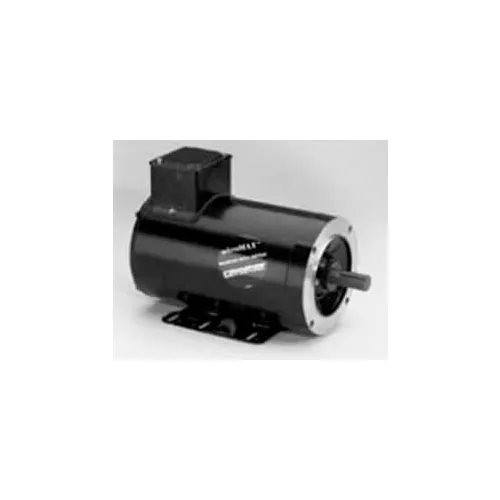

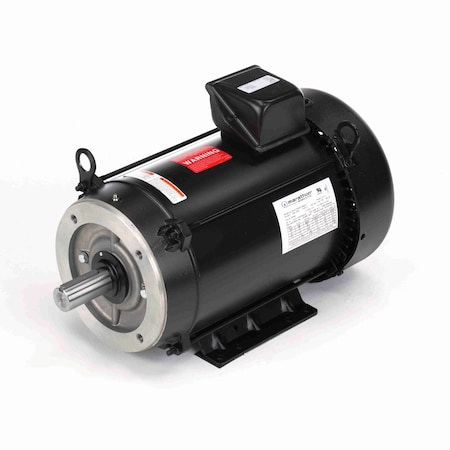

Marathon Y994 Motor

Marathon Y994 Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.213THFW7726
ApprovalsCE, CSA, UL
Bearing TypeBall
CompositionSteel
Conduit Box LocationExterior
Conduit Box PositionF3
Country of Origin (subj.Mexico
CT Speed Range1000:1
Duty CycleContinuous
EnclosureTEFC, Totally Enclosed .
Encoder AcceptableNo
Family SeriesMarathon Electric Motor.
FinishBlack
Frame213TC
Full Load Amps21.4/10.7
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7 1/2
Hz60
Ins. ClassH
Inverter DutyYes
ItemVector Motor
Item NumberY994
Length Less Shaft17 7/8 in
ManufacturerMarathon Electric
Manufacturer Part Number213THFW7726
Manufacturers Warranty .3 Years
Max. Ambient Temp.40 Degrees C
Max. Operating Frequency120 Hz
Max. Speed4,000 RPM
Model Number213THFW7726
Motor ApplicationCrane
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupEnergy Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal, Vertical Sh.
Motor Mounting TypeRigid Base
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeC-Face Footed
Nameplate RPM1,770
NEMA DesignB
Net Weight98 lbs
No. of Speeds1
Nominal Efficiency89.5 %
Overall Length21 in, 20.97 "
Phase3, Three
Product SeriesHIGH PERFORMANCE INVERT.
RPM1,800 RPM, 1700 - 1800
Shaft Dia.1 3/8 in
Shaft Length3 1/8 in
Speed Range1,000:1
StandardsUL Recognized (E49747),.
Torque22.3 ft-lb
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC, 230/460
Voltage (AC)230 VAC, 460 VAC
Weight128 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY9941012.017MARATHON1012.0 @ 7
AmazonTPB0042G8WKS1186.93172Marathon1186.93 @ 7
thumbzoomMRO Supply22703591210.5317Marathon Electric1210.53 @ 7
thumbzoomapexindustrialautomation.comY9941319.1717Marathon1319.17 @ 7
thumbzoomGalcoY994-MARA1353.8817Marathon Electric98.01353.88 @ 7
us.rs-online.com734323991583.017Marathon Motors1583.0 @ 7
thumbzoomAutomation DirectY9941612.017Marathon135.01612.0 @ 7
thumbzoomGlobal IndustrialWBB8681321743.01717Marathon Motors1743.0 @ 7
thumbzoomNational Supply NetworkB8681321833.6771428617MARATHON MOTORS1833.67714286 @ 7
thumbzoomZoroG25304981911.3817Marathon1911.38 @ 7
industrialmotors.comY9941959.617MARATHON ELECTRIC1959.6 @ 7
grainger.caAOSY9942448.1291218817MARATHON130.02448.12912188 @ 7
