mpn:
brand:
manufacturer:
MPN:
Description:
AC
Weight:
385.0
Weight:
385.0 LB
Preferred Price:
3329.42
Price:
3329.42
Min Simple Price:
1881.03
Absolute Min Price:
2671.06
Min Price:
2671.06
Dimensions:
[35.0, 26.0, 21.0]
qty:
21
simpleSku:
jEzMjc:::254TTGN6531
sku:
jEzMjc::MO:254TTGN6531@y0
condition:
11
seller:
Galco
amzMan:
marathon electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Application |
| Approval | Approval |
| CC Number | CC003A |
| Classification | Hazardous Duty Division 1 Explosion Proof |
| Composition, Motor Frame Material | Cast Iron |
| Conduit Box Location | Exterior |
| Constant Torque Speed Range | Constant Torque Speed Range |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency %, Nominal Efficiency | 92.4 % |
| Enclosure | XPFC, Totally Enclosed Fan Cooled |
| Family Series | Marathon Electric Motors |
| Frame Material | Frame Material |
| Frame Remarks | Rigid |
| Frame, NEMA Frame | 254T |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 37.5/18.8 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Hazardous Location Division | Division 1 |
| Horsepower | 15 hp |
| HP | 15 |
| Hz | 60 |
| Includes | (11) Leads In Conduit Box |
| Ins. Class | F |
| Insulation Class | Insulation Class |

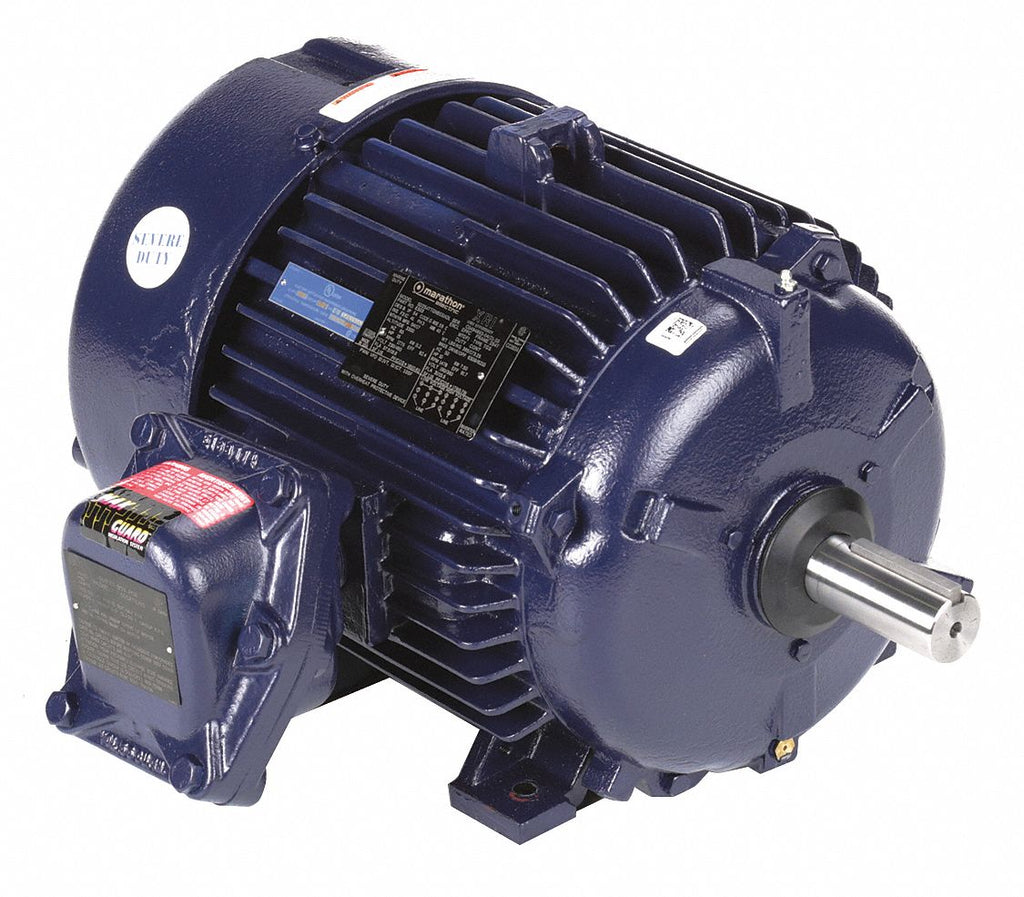

| Item | Hazardous Location Motor |
| Item Condition | Factory New |
| Item Number | 254TTGN6531 |
| Kilowatts | 11.2 kW |
| Lead Length | 8 in |
| Length Less Shaft | 19 5/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | E503 |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor FLA | Motor FLA |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Mounting Type | Footed |
| Nameplate RPM | 1,775 |
| NEMA Design | B |
| Net Weight | 385 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Number of Speeds | Number of Speeds |
| Overall Length | 23 1/2 in |
| Phase | 3, Three |
| RPM | 1,775 RPM, 1800 |
| Service Factor | Service Factor |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 3/16 in |
| Speeds | Speeds |
| Standards | UL Listed (E12044), CSA Certified (LR47504) |
| Temp. Code | T3B |
| Unspsc | Unspsc |
| Usable @ 200V, Usable @ 208V | No |
| Variable Torque Speed Range | Variable Torque Speed Range |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230/460 |
| Weight | 24 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 254TTGN6531-MARA | 1881.03 | 1881.03 | 1 | In Stock | Marathon Electric | 385.0 | 1881.03 @ Qty: 1+ | |
 | mecampbell.com | 254TTGN6531 | 1993.6 | 1993.6 | 1 | In Stock | 33 | Marathon Motors | 1993.6 @ Qty: 1+ | |
 | Dealers Electric | 254TTGN6531 | 2691.51 | 2691.51 | 1 | In Stock | Marathon Electric | 385.0 | 2691.51 @ Qty: 1+ | |
| grainger.ca | AOS254TTGN6531 | 3096.9779117 | 3096.9779117 | 1 | In Stock | MARATHON | 430.0 | 3096.9779117 @ Qty: 1+ | ||
 | sustainablesupply.com | C1565645 | 3790.01 | 3790.01 | 1 | In Stock | Marathon | 430.0 | 3790.01 @ Qty: 1+ | |
 | Raptor Supplies | AE6YHY | 4673.8191825 | 4673.8191825 | 1 | In Stock | MARATHON MOTORS | 4673.8191825 @ Qty: 1+ |
