Marathon Electric B400

B0042GEPLI

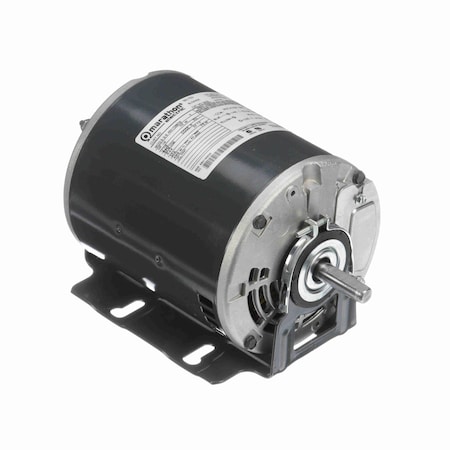

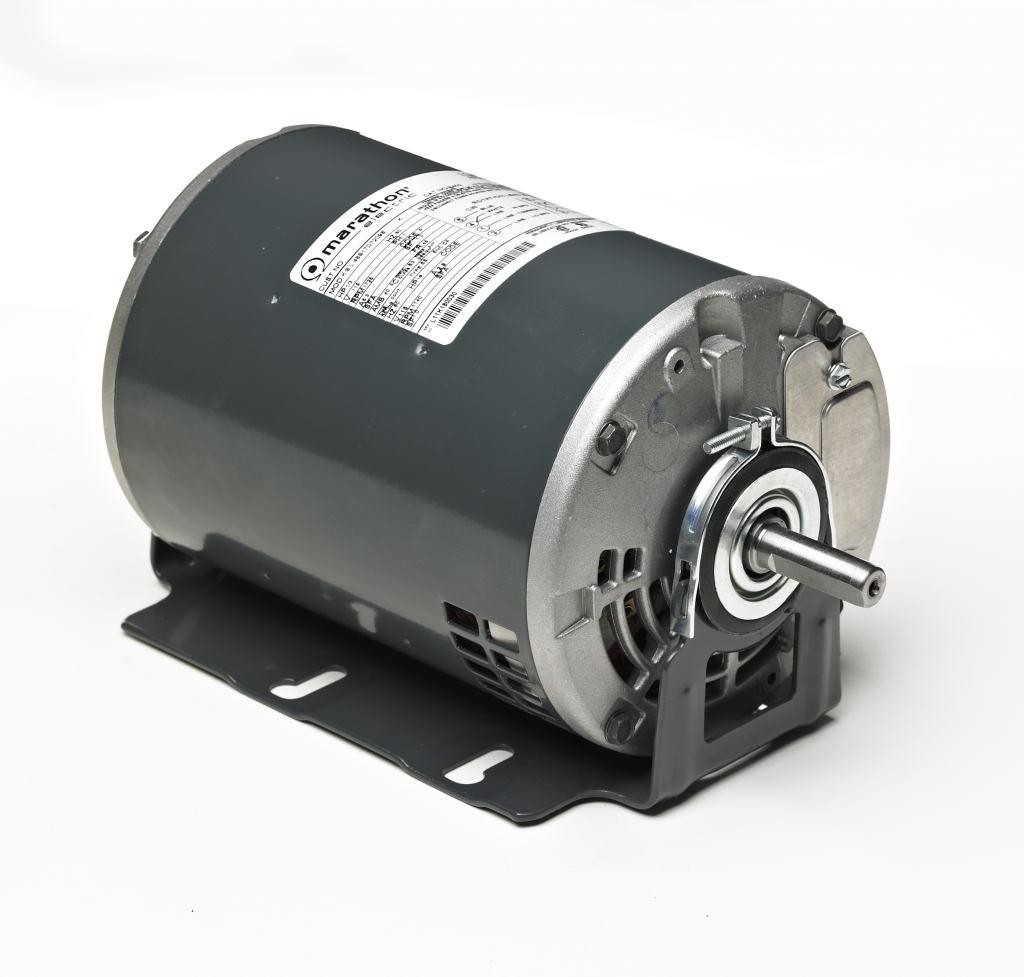

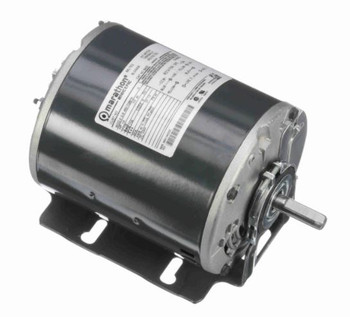

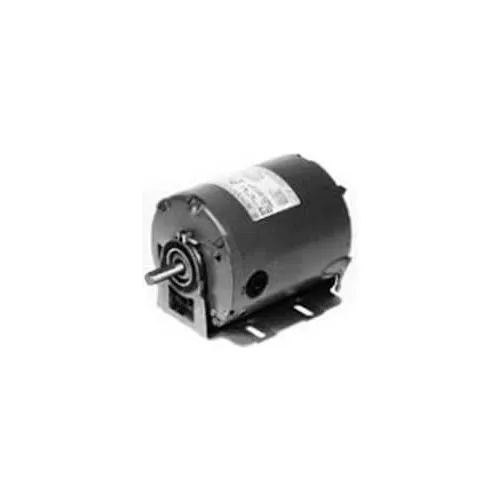

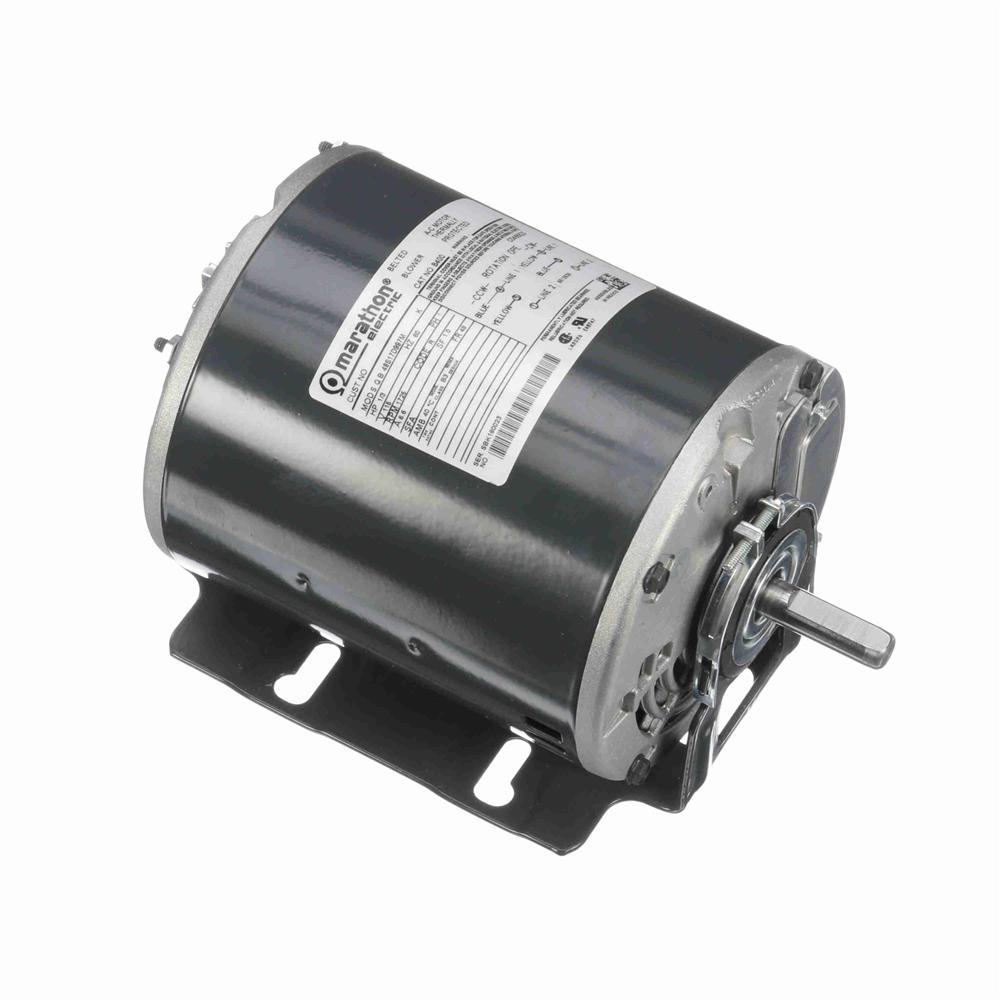

Marathon B400 48Y Frame Totally Enclosed 48S17D997 Attic Fan Motor, 1/3 hp, 1800 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Base

Marathon B400 48Y Frame Totally Enclosed 48S17D997 Attic Fan Motor, 1/3 hp, 1800 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D997
Amps6.6
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.34 (in.)
Catalog NumberB400
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.615
Efficiency %61.5 %
Electrical TypeSplit Phase
EnclosureDrip Proof Air Over, DP.
Enclosure MaterialSteel
Enclosure TypeDrip Proof Air Over, OD.
Family SeriesMarathon Electric Motors
Frame48
Frame MaterialRolled Steel
Frame Type48
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code22
Item NumberB400
Kilowatts0.25 kW
KVA CodeR
ManufacturerMarathon Electric
Manufacturer Model #048S17D997
Manufacturer Part Number048S17D997
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.75"
MountingBase
Mounting OrientationHorizontal
Mounting TypeResilient Base
NEMA Frame48
Net Weight14 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.34 ", 9.34"
Phase1
Product CategoryHVAC/R Motors > HVAC/R.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension1.59 (in.)
Shaft Length1.59"
Shaft TypeNEMA 48
Ship Weight14 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB400124.012MARATHON124.0 @ 1
thumbzoomasapelectricmotors.comMARB400140.671In StockMARATHON140.67 @ 1
thumbzoomapexindustrialautomation.comB400160.77111Marathon160.77 @ 1
thumbzoomMRO Supply2269393165.871In StockMarathon Electric165.87 @ 1
thumbzoomcshincorporated.comMB400177.131In StockMarathon14.0177.13 @ 1
thumbzoomGalcoB400-MARA190.01In StockMarathon Electric14.0190.0 @ 1
thumbzoomDreisilkerMA-RBC-B400202.571In StockMarathon202.57 @ 1
us.rs-online.com72650257208.551In StockMarathon Motors208.55 @ 1
thumbzoomemotorpro.comB400210.31In StockMarathon14.0210.3 @ 1
thumbzoommidwestapplianceparts.comB400-MT-P218.111In StockMarathon218.11 @ 1
thumbzoomGlobal IndustrialWBB868887225.951In StockMarathon Motors225.95 @ 1
thumbzoomNational Supply NetworkB868887231.421In StockMARATHON MOTORS231.42 @ 1
thumbzoomcbtcompany.comB400232.461In StockMarathon Electric Motors232.46 @ 1
thumbzoomindustrialstores.comB400233.591In Stock26Marathon Motors233.59 @ 1
thumbzoomGuardianMARSB400246.231In StockMarathon246.23 @ 1
thumbzoomZoroG806604577247.341In Stock10Marathon247.34 @ 1
thumbzoomptacsolutions.comB400267.01In StockMarathon Motors267.0 @ 1
