Marathon Electric B606

B007ZQLL5U

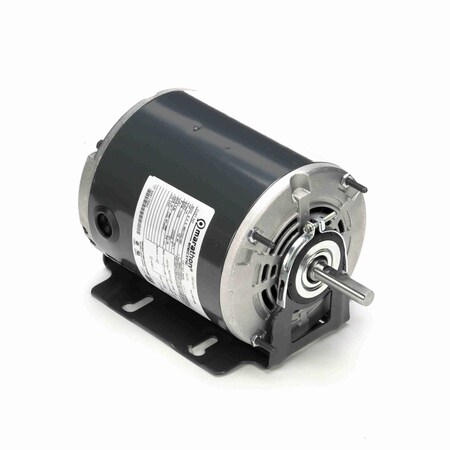

Marathon B606 Motor

Marathon B606 Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2116
Amps2.1
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.47 (in.)
Catalog NumberB606
CEN
CompositionRolled Steel
CSAY
Current Rating2.1 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.595, 59.5
Efficiency %59.5 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code22
Item NumberB606
Kilowatts0.19 kW
KVA CodeP
ManufacturerMarathon Electric
Manufacturer Model #048S17D2116
Manufacturer Part Number048S17D2116
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.5"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame48Z
Net Weight15 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.47 ", 9.47"
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725 RPM, 1725, 1700 - .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight13 lbs.
Special FeaturesService Factor - 1.35
Speeds1
StandardsUL Recognized
Supply Voltage277 VAC
TypeSplit Phase
Type of Overload Protec.No
ULRecognized
UPC Code722856039378
Voltage277
Voltage (AC)277 VAC
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB606149.01In StockMARATHON149.0 @ 1
thumbzoomGalcoB606-MARA200.341In StockMarathon Electric15.0200.34 @ 1
thumbzoomMRO Supply2269653202.541In StockMarathon Electric202.54 @ 1
thumbzoomcshincorporated.comMB606208.01In StockMarathon13.0208.0 @ 1
us.rs-online.com72238288237.511In StockMarathon Motors237.51 @ 1
thumbzoomemotorpro.comB606246.961In StockMarathon13.0246.96 @ 1
thumbzoomDreisilkerMA-RBC-B606247.351In StockMarathon247.35 @ 1
thumbzoomZoroG302161628360.931In Stock10Marathon360.93 @ 1
