Marathon R330A

B006KM6AAQ

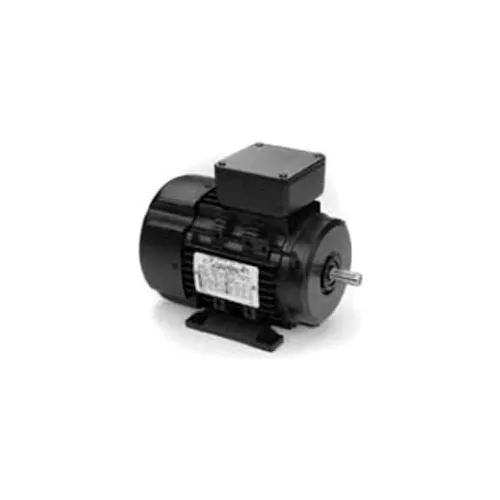

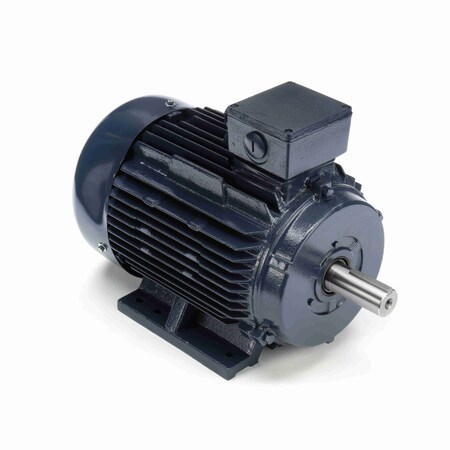

10 hp 7.5 kw 3600 RPM 132S Frame 230/460V Marathon Electric Metric Motor # R330A

10 hp 7.5 kw 3600 RPM 132S Frame 230/460V Marathon Electric Metric Motor # R330Azoom

Attributes

Key Value
Amps24/12 A
applications:Pumps, Compressors, Con.
ApprovalsCE, CSA, UR
base rpm:3600 / 3000 rpm
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.China
Duty CycleContinuous
Efficiency90.2%
Efficiency %90.2 %
EnclosureTotally Enclosed Fan Co.
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame132S
frame material:Cast Iron
frame size:132S
Frequency60 Hz
frequency rating:50/60 Hz
full load efficiency:90.20 %
Gross Weight0 lbs
Horsepower10 hp
HP10
Hz60
IEC Frame132S
Insulation ClassF
insulation class:F
ip rating:55
Item NumberR330A
Kilowatts7.5 kW
kw:7.50 kW
ManufacturerMarathon Electric
Manufacturer Model #132STFC6502
Manufacturer Part Number132STFC6502
Maximum Ambient Tempera.40? C
motor phase:3 ph
motor supply voltage:200/400//230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base/B3 Flange
Net Weight192 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles2
Number of Speeds1
Overall Length18.26", 18.26 "
Phase3
Product Type3 Phase
RotationReversible
RPM3535, 3,535 RPM
Service Factor1.15
service factor:1.15
Shaft Diameter38mm, 1.5 "
shaft diameter:33 mm
Shaft Length80mm
Ship Weight163 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage (AC)230 VAC, 460 VAC
Volts230/460
weight:163 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR330A870.0110MARATHON870.0 @ 10
AmazonTPB006KM6AAQ974.291102Marathon974.29 @ 10
thumbzoomZoroG26254511001.9110Marathon1001.9 @ 10
thumbzoomapexindustrialautomation.comR330A1152.8110Marathon1152.8 @ 10
thumbzoommotionindustries.com047389361225.63110Marathon Electric1225.63 @ 10
thumbzoomGalcoR330A-MARA1310.0110Marathon Electric192.01310.0 @ 10
thumbzoomNational Supply NetworkB8706371317.689110MARATHON MOTORS1317.689 @ 10
thumbzoomemotorpro.comR330A1404.98110Marathon163.01404.98 @ 10
thumbzoomGlobal IndustrialWBB8706371644.011014Marathon Motors1644.0 @ 10
