Marathon R342A

B006KM5WR8

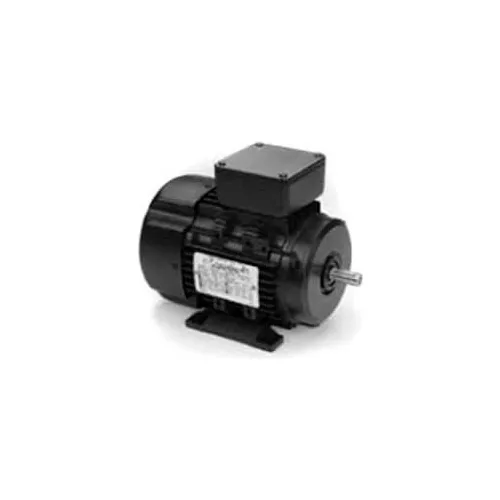

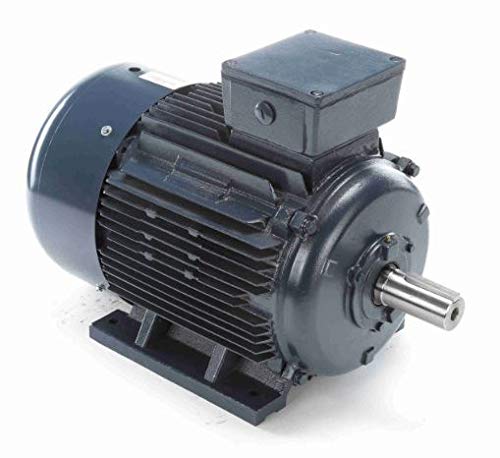

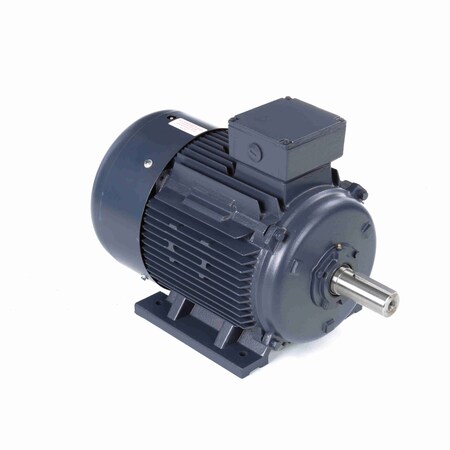

30 hp 22 kw 3600 RPM 180M Frame 230/460V Marathon Electric Metric Motor # R342A

30 hp 22 kw 3600 RPM 180M Frame 230/460V Marathon Electric Metric Motor # R342Azoom

Attributes

Key Value
Amps69/34.5 A
applications:Pumps, Compressors, Con.
ApprovalsCE, CSA
base rpm:3600 / 3000 rpm
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.China
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency93%
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame180M
frame material:Cast Iron
frame size:180M
Frequency60 Hz
frequency rating:50/60 Hz
full load efficiency:92.40 %
Gross Weight0 lbs
Horsepower30 hp
HP30
Hz60
IEC Frame180M
Insulation ClassF
insulation class:F
ip rating:55
Item NumberR342A
Kilowatts22.4 kW
kw:22.4 kW
ManufacturerMarathon Electric
Manufacturer Model #180MTFC6511
Manufacturer Part Number180MTFC6511
Maximum Ambient Tempera.40? C
motor phase:3 ph
motor supply voltage:200/400//230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base/B3 Flange
Net Weight432 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles2
Number of Speeds1
Overall Length26.77", 26.77 "
Phase3
Product Type3 Phase
RotationReversible
RPM3550, 3400 - 3600, 3,55.
Service Factor1.15
service factor:1.15
Shaft Diameter1.89 ", 48mm
shaft diameter:42.5 mm
Shaft Length110mm
Ship Weight355 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460
weight:355 g

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR342A2234.01In StockMARATHON2234.0 @ 1
AmazonTPB006KM5WR82650.981In Stock2Marathon2650.98 @ 1
thumbzoomMRO Supply22690592794.521In StockMarathon Electric2794.52 @ 1
thumbzoomapexindustrialautomation.comR342A3167.121In StockMarathon3167.12 @ 1
thumbzoommotionindustries.com047389483468.521In StockMarathon Electric3468.52 @ 1
thumbzoomGalcoR342A-MARA3599.01In StockMarathon Electric432.03599.0 @ 1
thumbzoomGlobal IndustrialWBB8706263833.01In Stock17Marathon Motors3833.0 @ 1
thumbzoomemotorpro.comR342A3859.931In StockMarathon355.03859.93 @ 1
thumbzoomNational Supply NetworkB8706263934.191In StockMARATHON MOTORS3934.19 @ 1
thumbzoomZoroG26294144361.331In Stock10Marathon4361.33 @ 1
