Marathon Electric R398A

B006KM628Q

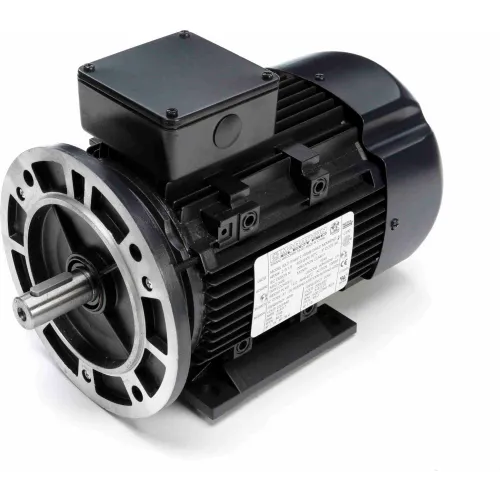

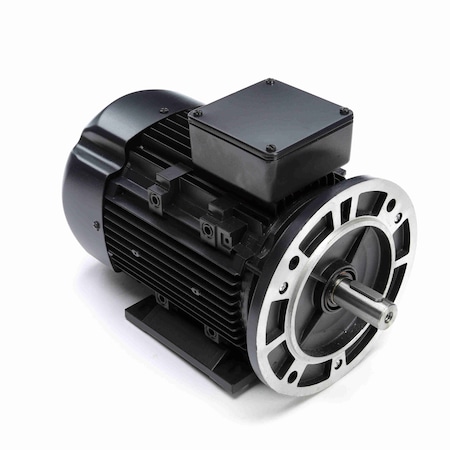

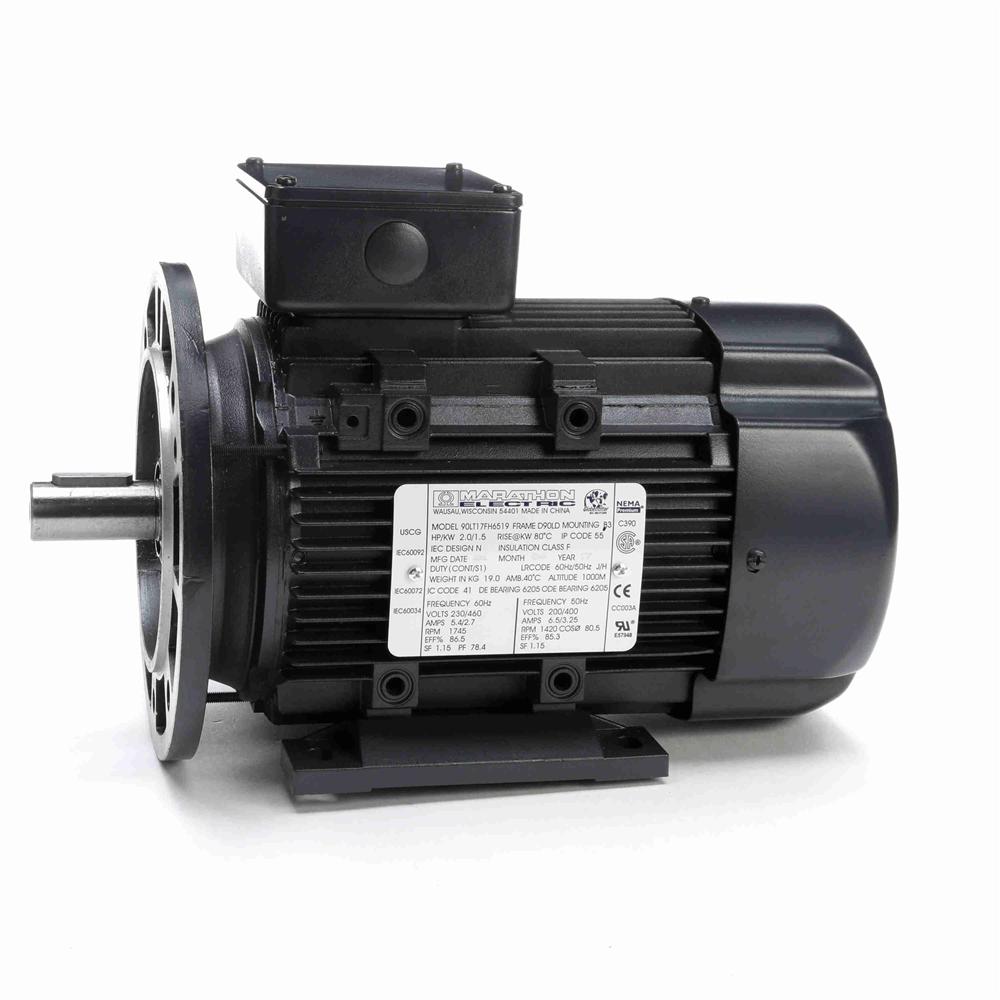

Marathon R398A 90LD Frame Totally Enclosed Fan Cooled 90LT17FH6519 IEC Motor, 2-1.5 KW, 1800/1500 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, D-Flange with Rigid Base

Marathon R398A 90LD Frame Totally Enclosed Fan Cooled 90LT17FH6519 IEC Motor, 2-1.5 KW, 1800/1500 RPM, 230/460 VAC, 3 Phase, 2 Speeds, Ball Bearing, D-Flange with Rigid Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.090LT17FH6519
Amps5.4/2.7
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionAluminum
Country of Origin (subj.China
Duty CycleContinuous
Efficiency0.875
Efficiency %87.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame90L
Frequency60 Hz
Gross Weight0 lbs
Horsepower2 hp
HP2
Hz60
IEC Frame90L
Insulation ClassF
Item NumberR398A
Kilowatts1.5 kW
ManufacturerMarathon Electric
Manufacturer Model #090LT17FH6519
Manufacturer Part Number090LT17FH6519
Maximum Ambient Tempera.40? C
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid
Net Weight45 lbs
Number of Poles4
Number of Speeds1
Overall Length12.83 ", 12.83"
Phase3
Product TypeThree Phase
RotationReversible
RPM1745, 1700 - 1800, 1,74.
Service Factor1.15
Shaft Diameter1 ", 24mm
Shaft Length47mm
Ship Weight45 lbs.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comR398A387.01In StockMARATHON387.0 @ 1
thumbzoomGalcoR398A-MARA588.211In StockMarathon Electric45.0588.21 @ 1
thumbzoomMRO Supply2269089591.321In StockMarathon Electric591.32 @ 1
thumbzoomapexindustrialautomation.comR398A596.05133Marathon596.05 @ 1
us.rs-online.com73430922662.571In StockMarathon Motors662.57 @ 1
thumbzoomemotorpro.comR398A690.361In StockMarathon45.0690.36 @ 1
thumbzoomNational Supply NetworkB2777059738.111In StockMARATHON MOTORS738.11 @ 1
thumbzoomGlobal IndustrialWBB2777059785.01In StockMarathon785.0 @ 1
thumbzoomcbtcompany.comR398A785.851In StockMarathon Electric Motors785.85 @ 1
thumbzoomZoroG2627999790.01In StockMarathon790.0 @ 1
kirbyrisk.com2439289855.021In StockMarathon855.02 @ 1
