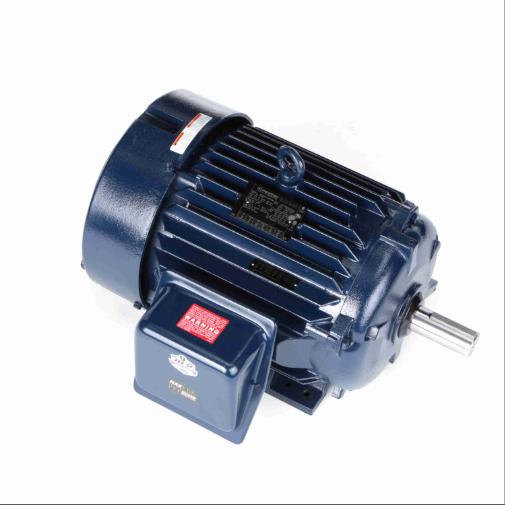

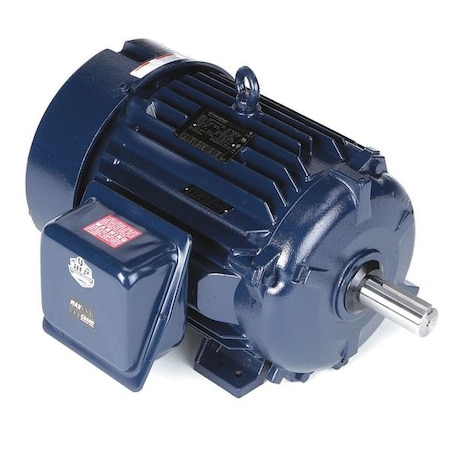

Marathon Electric/Regal Beloit - 286THFNA8028-30 HP Vector Motor, 3-Phase, 1776 Nameplate RPM, 230/460 Voltage, Frame 286T

Marathon Electric/Regal Beloit - 286THFNA8028-30 HP Vector Motor, 3-Phase, 1776 Nameplate RPM, 230/460 Voltage, Frame 286Tzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
ApplicationApplication
ApprovalApproval
BaseRigid
ClassificationInverter Vector Duty: B.
CompositionCast Iron
Conduit Box LocationExterior
Conduit Box PositionF1, F2
Constant Torque Speed R.Constant Torque Speed R.
Country of Origin (subj.United States
DutyContinuous
Duty CycleContinuous
EfficiencyEfficiency
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Encoder AcceptableYes
Encoder Shaft1 in x 1-3/4 in
Encoder Shaft Dimensions1 in x 1 3/4 in
Family SeriesMarathon Electric Motors
FinishEnamel
Frame286T
Frame MaterialCast Iron, Frame Materi.
Frame RemarksRigid
Frequency RatingFrequency Rating
Full Load Amps77.0/38.5
Gross Weight0 lbs
Horsepower30 hp
HP30
Hz60
Ins. ClassH
Insulation ClassInsulation Class
Insulation FeatureClass F
ItemVector Motor
Item ConditionFactory New
Item Number286THFNA8028
Kilowatts22.4 kW
ManufacturerMarathon Electric
Manufacturer Part NumberY570
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Max. Operating Frequency120 Hz
Max. Speed1,800 RPM
Motor ApplicationCrane
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupEnergy Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor FLAMotor FLA
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionT-Stat
Mounting TypeFooted
Nameplate RPM1,776
NEMA DesignA
NEMA Frame286T
Net Weight497 lbs
No. of Speeds1
Nominal Efficiency93 %
Nominal Voltage240 VAC, 277 VAC, 347 V.
Number of SpeedsNumber of Speeds
Overall Length29 15/16 in
Phase3, Three
RPM1,776 RPM, 1800
RPM Range1,701-1,800
Service Factor1, Service Factor
Shaft Dia.1 7/8 in
Shaft Length4 13/16 in
Speed Range2,000:1
SpeedsSpeeds
StandardsCE, CSA, UL Recognized
UnspscUnspsc
Usable @ 200VNo
Usable @ 208VNo
Variable Torque Speed R.Variable Torque Speed R.
Voltage230/460V AC
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Warranty3 yr
Weight497 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG99229724146.01In Stock26Marathon Motors371.04146.0 @ 1
thumbzoomGalco286THFNA8028-MARA4154.671In StockMarathon Electric497.04154.67 @ 1
thumbzoommecampbell.com286THFNA80284510.881In Stock33Marathon Motors4510.88 @ 1
thumbzoomDealers Electric286THFNA80284641.63112Marathon Electric371.04641.63 @ 1
AmazonTPB00K4G7WII5493.651In Stock30Marathon Electric / Regal Beloit5493.65 @ 1
thumbzoomRaptor SuppliesAF8KGU7001.6949991In StockMARATHON MOTORS7001.694999 @ 1
thumbzoompumpproducts.com286THFNA80287598.841In StockMarathon7598.84 @ 1
