- mpn056C17G5324
- brandname: Marathon Motors
- manufacturername: Marathon Motors

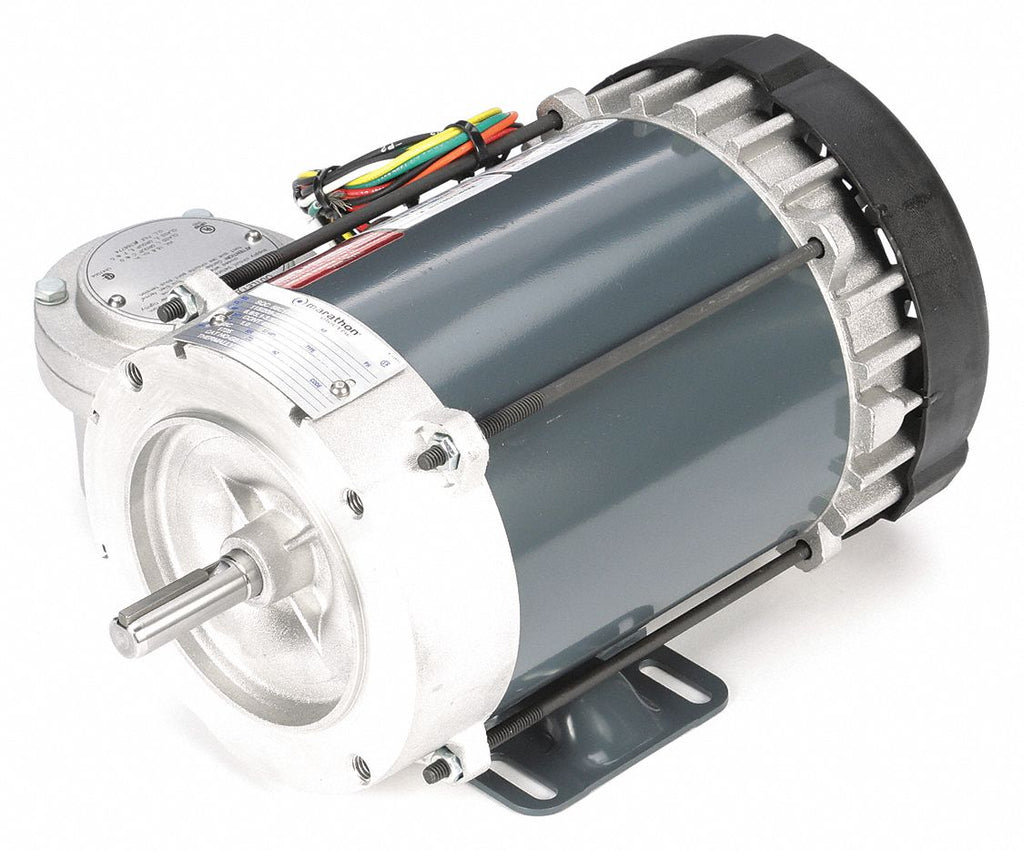

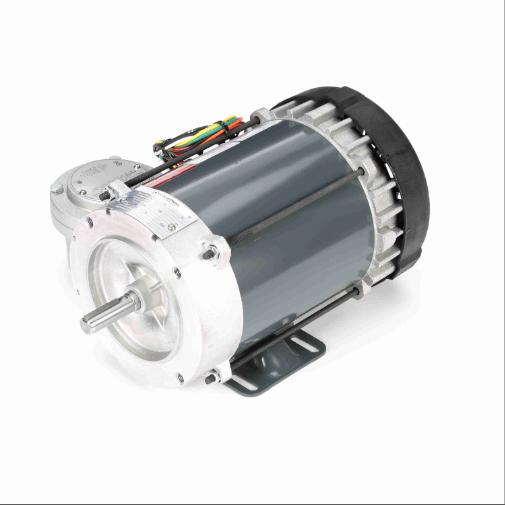

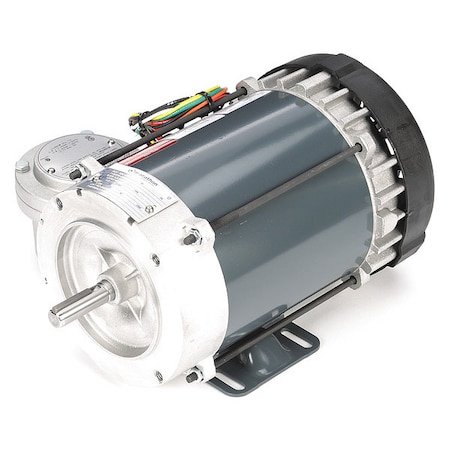

Marathon Motors 1/3 HP Hazardous Location Motor,Capacitor-Start,1725 Nameplate RPM,115/208-230 Voltage,Frame 56C


- Brand: CAI - MARATHON MOTORS
- PartNumber: 056C17G5324
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
Key | Value |
---|
Application | Application |
Approval | Approval |
Brand | Marathon Motors |
Composition | Rolled steel |
Construction | Rolled steel |
Current Stock | 4 |
Drive End Flange Type | C-Face |
Duty | Continuous |
Efficiency | Efficiency |
Efficiency % | 55 % |
Enclosure | TEFC, XPFC, Totally Enc. |
Family Series | Marathon Electric Motors |
FL Amps | 6.6/3.1-3.3 |
FL Efficiency | 55 |
Frame | 56C |
Frame Material | Rolled steel, Frame Mat. |
Frame Remarks | Footed |
Frequency Rating | Frequency Rating |
Gross Weight | 0 lbs |
Hazardous Location Class | 1 C,D / 2 F,G |
Hertz | 60 |
Horsepower | 1/3 hp |
HP | 0.33, .33, 1/3 |
Includes | Explosion Proof Conduit. |
Ins. Class | B |
Insulation Class | Insulation Class |
International Shipping | No |
Item Condition | Factory New |
Item Number | 056C17G5324 |
Kilowatts | 0.25 kW |
KW | 0.25 |
Lead Length | 18 in |
Length Less Shaft | 11 3/8 in |
Manufacturer | Marathon Electric, Mara. |
Manufacturer Part Number | G871 |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Totally Enclosed Fan-Co. |
Motor FLA | Motor FLA |
Motor Mounting Type | Face/Base |
Motor Service Factor | 1 |
Motor Shaft Design | Keyed |
Motor Thermal Protection | Auto |
Mounting | Footed, Mounting |
mounting | C-face w/ rigid base |
Mounting Type | Footed |
Mpn | 056C17G5324 |
Nameplate RPM | 1,725 |
NEMA Design | N |
NEMA Frame | 56C |
Net Weight | 30 lbs |
Nominal Efficiency | 55 % |
Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
Number of Speeds | 1, Number of Speeds |
Overall Length | 13 7/16 in |
Part Number | 056C17G5324 |
Phase | 1, Single |
Product Type | Explosion Proof |
RPM | 1800, 1,725 RPM |
RPM Range | 1,701-1,800 |
Service Factor | 1, Service Factor |
Shaft Dia. | 5/8 in |
Shaft Length | 2 1/16 in |
SKU | ZO-G1290651 |
Speed (RPM) | 1725 |
Speeds | Speeds |
SubCategory | Motors/Ac Motors |
Unspsc | Unspsc |
Voltage | 115/208-230V AC, 110-12. |
Voltage (AC) | 110-120 VAC, 208 VAC, 3. |
Volts | 115/208-230 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Galco | 056C17G5324-MARA | 578.2 | 1 | In Stock | | Marathon Electric | 30.0 | 578.2 @ 1 |
  | Zoro | G1290651 | 578.2 | 1 | 14 | | Marathon Motors | 27.55 | 578.2 @ 1 |
  | Dealers Electric | 056C17G5324 | 587.84 | 1 | In Stock | | Marathon Electric | 30.0 | 587.84 @ 1 |
  | motorsandcontrol.com | G871 | 646.22 | 1 | In Stock | | Marathon Motors | | 646.22 @ 1 |
  | sustainablesupply.com | C2792360 | 674.51 | 1 | In Stock | | Marathon | 27.55 | 674.51 @ 1 |
  | simsupply.com | ZO-G1290651 | 676.25 | 1 | 4 | | Marathon Motors | | 676.25 @ 1 |
  | mecampbell.com | 056C17G5324 | 688.88 | 1 | In Stock | 33 | Marathon Motors | | 688.88 @ 1 |
  | Raptor Supplies | AJ2LRY | 817.4644335 | 1 | In Stock | | MARATHON MOTORS | | 817.4644335 @ 1 |
  | pumpproducts.com | 056C17G5324 | 966.03 | 1 | In Stock | | Marathon | | 966.03 @ 1 |
