mpn:
brand:
manufacturer:
MPN:
Weight:
2.625
Weight:
2.625 LB
Preferred Price:
413.45
Price:
413.45
Min Simple Price:
233.59
Absolute Min Price:
331.69
Min Price:
331.69
Dimensions:
[14.0, 1.0, 1.0]
qty:
21
simpleSku:
NDY2MA:::056T17W99024
sku:
NDY2MA::DD:056T17W99024@y0
condition:
11
seller:
Galco
amzMan:
cai - marathon motors
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| CC Number | CC003A |
| Composition, Motor Frame Material | Rolled Steel |
| Country of Origin (subject to change) | United States |
| Duty | Continuous |
| Efficiency % | 86.5 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Marathon Electric Motors |
| Frame, NEMA Frame | 56c |
| Full Load Amps | 4.8/2.4 |
| Gross Weight | 0 lbs |
| Horsepower | 1-1/2 hp |
| HP | 1-1/2 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | No |

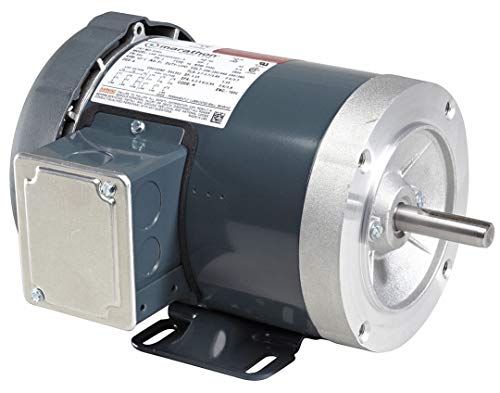

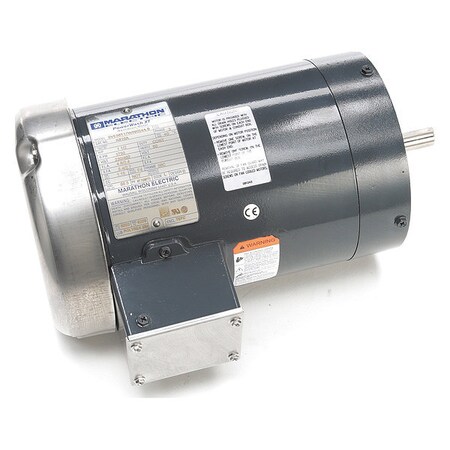

| Item | General Purpose Motor |
| Item Number | 056T17W99024 |
| Kilowatts | 1.1 kW |
| Length Less Shaft | 11-7/16" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | K610A |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Mounting Type | Round |
| Nameplate RPM | 1750 |
| Net Weight | 42 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 72.5% |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Overall Length | 13-3/8" |
| Phase | 3 |
| RPM | 1,750 RPM |
| RPM Group, RPM Range | 1701-1800 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-15/16" |
| Standards | UL (E49747), CSA (LR2025), CE Approved |
| Voltage | 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 056T17W99024-MARA | 233.59 | 233.59 | 1 | In Stock | Marathon Electric | 42.0 | 233.59 @ Qty: 1+ | |
 | Zoro | G8497977 | 598.63 | 598.63 | 1 | In Stock | Marathon Motors | 598.63 @ Qty: 1+ |
