- mpn056T34D5366
- brandname: Marathon Motors
- manufacturername: Marathon Motors

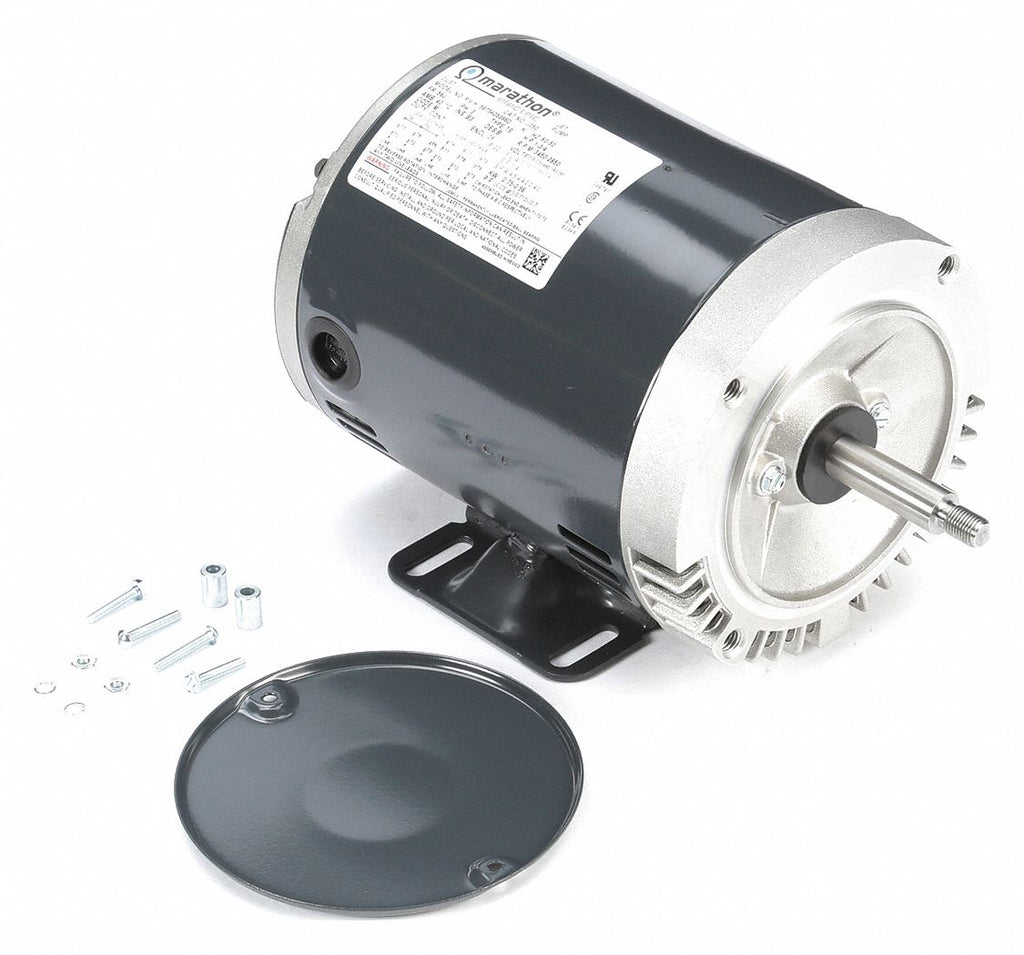

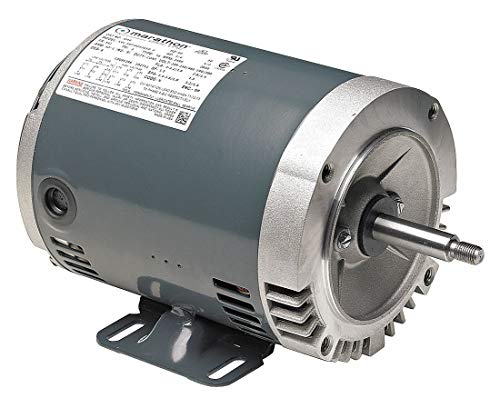

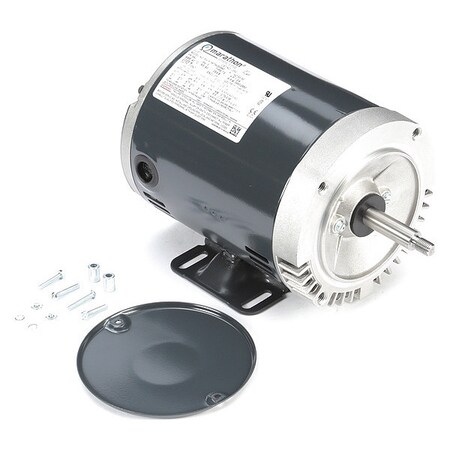

Marathon Motors 1 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 208-230/460 Voltage, 56J Frame
- Brand: CAI - MARATHON MOTORS
- PartNumber: 056T34D5366
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 7/8 in |
| Classification | Centrifugal Pump Jet Pu. |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 74 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 56J |
| Frame Remarks | C-Face Rigid |
| Full Load Amps | 3.7-3.7/1.90 |
| Full Load Amps @ 50Hz | 3.7-3.7/1.90 |
| Gross Weight | 0 lbs |
| Height | 6 11/16 in |
| Horsepower | 1 hp |
| HP | 1 |
| HP @ 50Hz | 1 |
| Hz | 60/50 |
| Includes | Drip Cover |
| Ins. Class | B |
| Item | Jet Pump Motor |
| Item Condition | Factory New |
| Item Number | 056T34D5366 |
| Kilowatts | 0.75 kW |
| Length Less Shaft | 8 3/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | J050 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Sh. |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 3,450 |
| NEMA Design | B |
| NEMA Frame | 56J |
| Net Weight | 25 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 74 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 10 15/16 in |
| Phase | 3, Three |
| RPM | 3,450 RPM, 3600 |
| RPM @ 50Hz | 3,450 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.4 |
| Service Factor @ 50Hz | 1.4 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Shaft Material | Stainless Steel |
| Standards | CE Mark, CSA Certified,. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage @ 50Hz | 230-460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 25 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 056T34D5366-MARA | 91.11 | 1 | In Stock | | Marathon Electric | 25.0 | 91.11 @ 1 |
 | Dealers Electric | 056T34D5366 | 260.96 | 1 | In Stock | | Marathon Electric | 25.0 | 260.96 @ 1 |
 | Zoro | G5555146 | 277.14 | 1 | In Stock | | Marathon Motors | 23.2 | 277.14 @ 1 |
 | sustainablesupply.com | C1488866 | 321.19 | 1 | In Stock | | Marathon | 23.2 | 321.19 @ 1 |
