- mpn056T34D5367
- brandname: Marathon Motors
- manufacturername: Marathon Motors

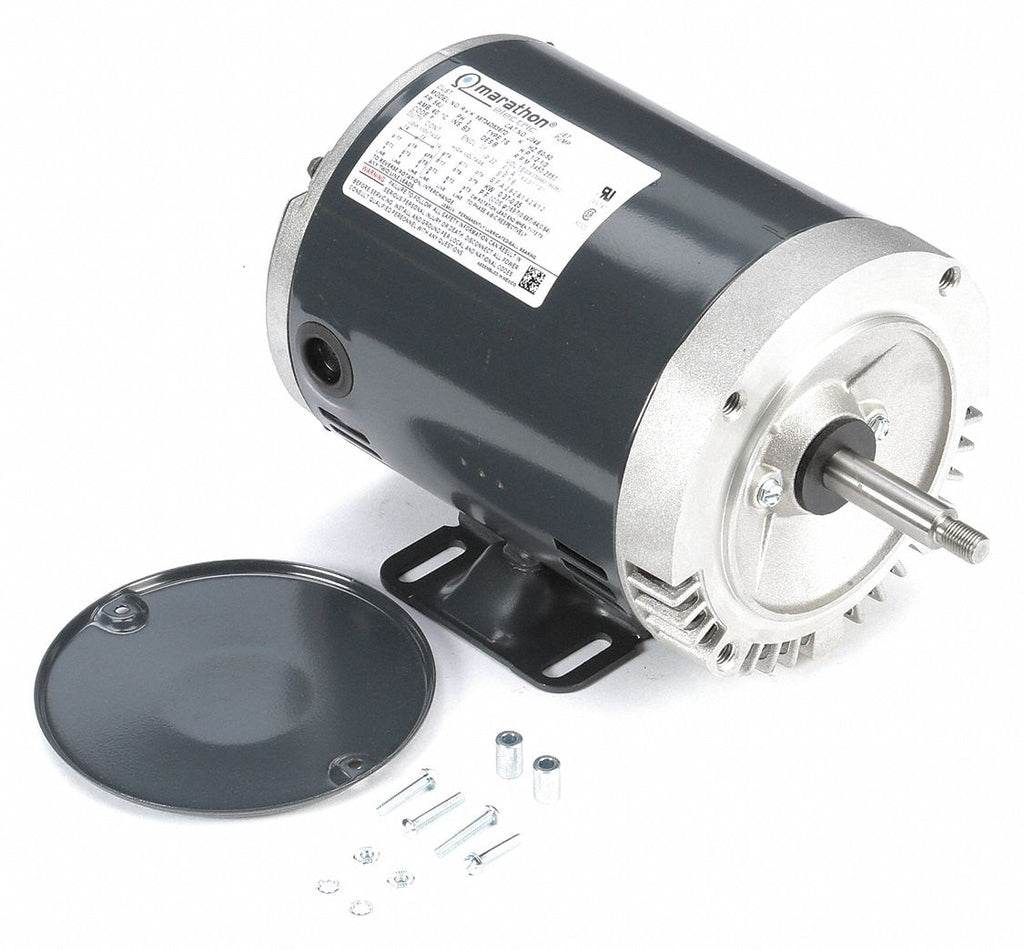

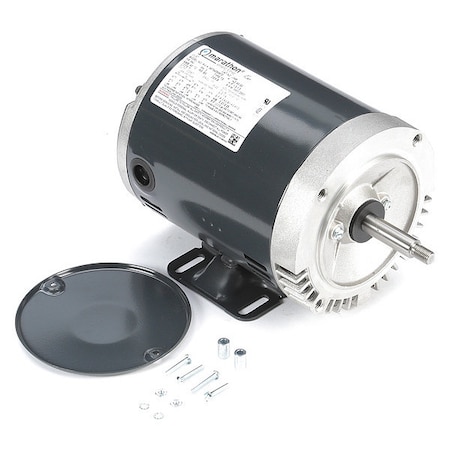

Motor, 3-Ph, 1/2 HP, 208-230/460V, 56J
- Brand: Marathon Industries
- PartNumber: 056T34D5367
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 7/8 in |
| Classification | Centrifugal Pump Jet Pu. |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 66 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 56J |
| Frame Remarks | C-Face Rigid |
| Full Load Amps | 2.2-1.90/1.10 |
| Full Load Amps @ 50Hz | 2.2-1.90/1.10 |
| Gross Weight | 0 lbs |
| Height | 6 11/16 in |
| Horsepower | 1/2 hp |
| HP | 1/2, .50 |
| HP @ 50Hz | 1/2 |
| Hz | 60/50 |
| Includes | Drip Cover |
| Ins. Class | B |
| Item | General Purpose Pump Mo. |
| Item Condition | Factory New |
| Item Number | 056T34D5367 |
| Kilowatts | 0.37 kW |
| Length Less Shaft | 8 3/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | J048 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Sh. |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 3,450 |
| NEMA Design | B |
| NEMA Frame | 56J |
| Net Weight | 20 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 66 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 10 15/16 in |
| Phase | 3, Three |
| RPM | 3,450 RPM, 3600 |
| RPM @ 50Hz | 3,450 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.6 |
| Service Factor @ 50Hz | 1.6 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Shaft Material | Stainless Steel |
| Standards | CE Mark, CSA Certified,. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage @ 50Hz | 460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
| Weight | 20 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Dealers Electric | 056T34D5367 | 190.94 | 1 | In Stock | | Marathon Electric | 25.0 | 190.94 @ 1 |
 | sustainablesupply.com | C1488865 | 211.06 | 1 | In Stock | | Marathon | 20.6 | 211.06 @ 1 |
 | Zoro | G5787223 | 212.52 | 1 | In Stock | | Marathon Motors | 20.6 | 212.52 @ 1 |
 | Galco | 056T34D5367-MARA | 264.5 | 1 | In Stock | | Marathon Electric | 20.0 | 264.5 @ 1 |
