CAI - MARATHON MOTORS 056T34D5368

B07J29Z79N

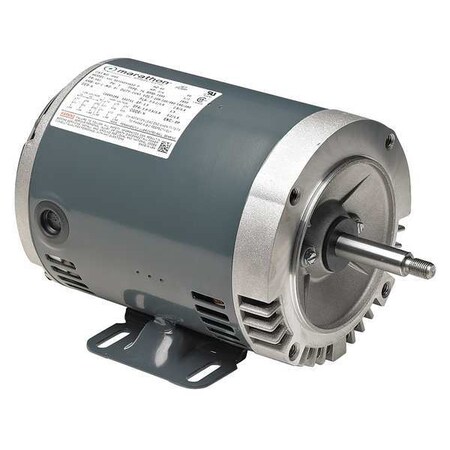

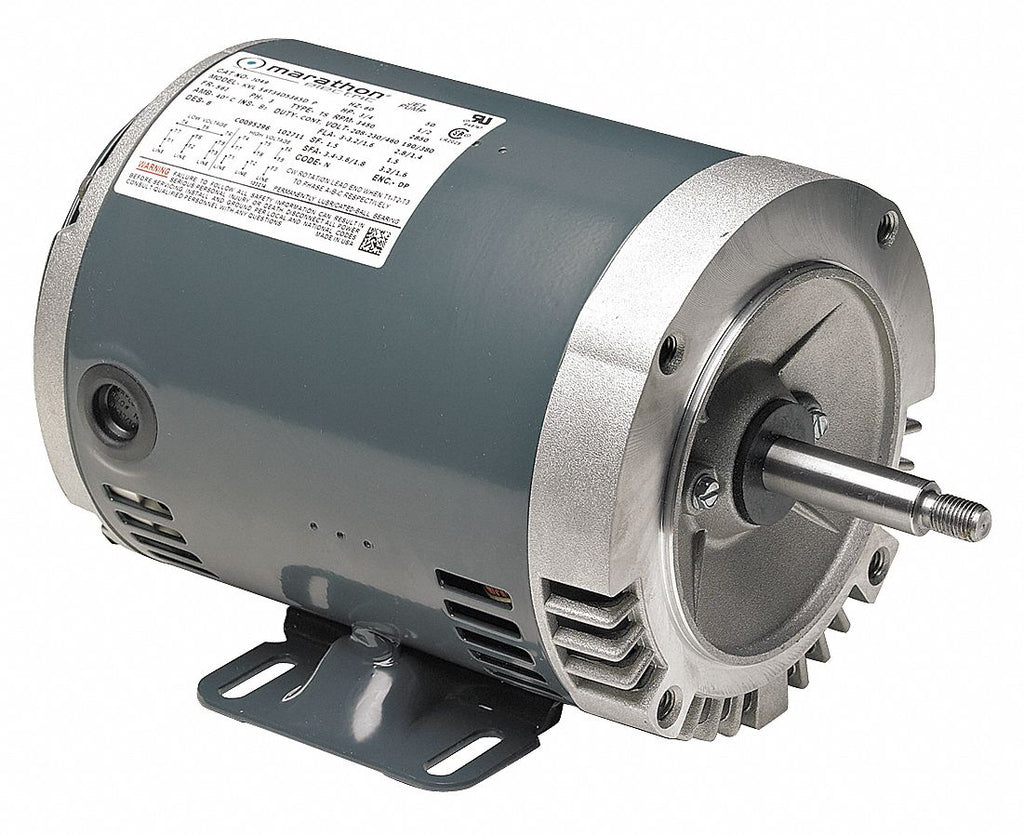

Marathon Motors 1/3 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 230/460 Voltage, 56J Frame

Marathon Motors 1/3 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 230/460 Voltage, 56J Framezoom

Attributes

Key Value
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
ClassificationCentrifugal Pump Jet Pu.
CompositionRolled Steel
Conduit Box LocationExterior
Conduit Box PositionF1
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Efficiency %67.7 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
Frame56J
Frame RemarksC-Face Rigid
Full Load Amps1.20-1.10/0.55
Full Load Amps @ 50Hz1.20-1.10/0.55
Gross Weight0 lbs
Height6 11/16 in
Horsepower1/3 hp
HP.33, 1/3
HP @ 50Hz1/3
Hz60/50
IncludesDrip Cover
Ins. ClassB
ItemGeneral Purpose Pump Mo.
Item ConditionFactory New
Item Number056T34D5368
Kilowatts0.25 kW
Length Less Shaft7 7/8 in
ManufacturerMarathon Electric
Manufacturer Part NumberJ047
Max. Ambient Temp.40 Degrees C
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.75
Motor Shaft DesignThreaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationJet Pump
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM3,450
NEMA DesignB
NEMA Frame56J
Net Weight21 lbs
No. of Speeds1
Nominal Efficiency67.7 %
Nominal Voltage208 VAC, 240 VAC, 277 V.
Overall Length10 7/16 in
Phase3, Three
RPM3,450 RPM, 3600
RPM @ 50Hz3,450
RPM Range3,001-3,600
Service Factor1.75
Service Factor @ 50Hz1.75
Shaft Dia.5/8 in
Shaft Length2 9/16 in
Shaft MaterialStainless Steel
StandardsCE Mark, CSA Certified,.
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC
Voltage (AC)208 VAC, 230 VAC, 460 V.
Voltage @ 50Hz460
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460
Weight21 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0473116158.891In Stock15Marathon Motors21.0158.89 @ 1
thumbzoomDealers Electric056T34D5368193.121In StockMarathon Electric25.0193.12 @ 1
thumbzoomGalco056T34D5368-MARA203.711In StockMarathon Electric21.0203.71 @ 1
AmazonTPB00J72PMMI256.141In Stock30Marathon Electric / Regal Beloit256.14 @ 1
thumbzoomsustainablesupply.comC2903236278.281In StockMarathon21.0278.28 @ 1
