- mpn056T34F5328
- brandname: Marathon Motors
- manufacturername: Marathon Motors

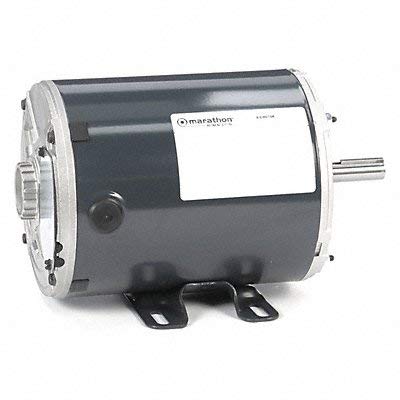

Marathon Motors Motor 3-Ph 1/2 HP 3450 RPM 208-230/460V
- Brand: Marathon Motors
- PartNumber: 056T34F5328
- PackageQuantity: 1
- Manufacturer: Marathon Motors
- Label: Marathon Motors
Attributes
| Key | Value |
|---|
| Classification | General Purpose |
| Composition | Rolled Steel |
| Country of Origin (subj. | Multiple |
| Duty | Continuous |
| Efficiency % | 66 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frame Remarks | Rigid |
| Full Load Amps | 2.0-2.2/1.1 |
| Gross Weight | 0 lbs |
| Horsepower | 1/2 hp |
| HP | 1/2, .50 |
| Hz | 60/50 |
| Ins. Class | B |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 056T34F5328 |
| Kilowatts | 0.37 kW |
| Length Less Shaft | 9-1/2" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | G308 |
| Manufacturers Warranty . | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 3450 |
| NEMA Frame | 56 |
| Net Weight | 22 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 66.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 11-13/16" |
| Phase | 3 |
| RPM | 3,450 RPM, 3600 |
| RPM Group | 3001-3600 |
| RPM Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL (E49747), CSA (LR202. |
| Voltage | 208-230/460 |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 056T34F5328-MARA | 77.63 | 1 | In Stock | | Marathon Electric | 22.0 | 77.63 @ 1 |
 | Zoro | G5631823 | 178.44 | 1 | In Stock | | Marathon Motors | | 178.44 @ 1 |
 | Dealers Electric | 056T34F5328 | 199.38 | 1 | In Stock | | Marathon Electric | 25.0 | 199.38 @ 1 |
 | Purvis | G308 | 271.57 | 1 | In Stock | | Marathon | | 271.57 @ 1 |
 | Raptor Supplies | AD6EWA | 496.215135 | 1 | In Stock | | MARATHON MOTORS | | 496.215135 @ 1 |
