- mpn056T34F5940
- brandname: Marathon Motors
- manufacturername: Marathon Motors

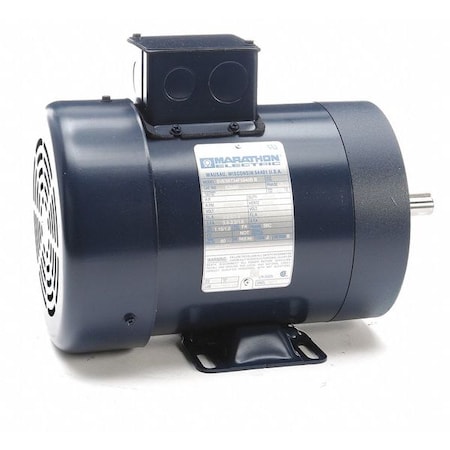

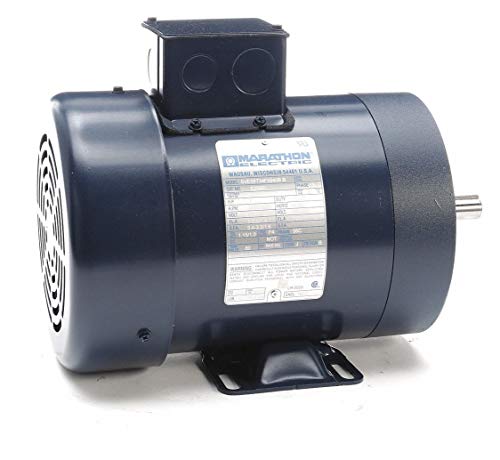

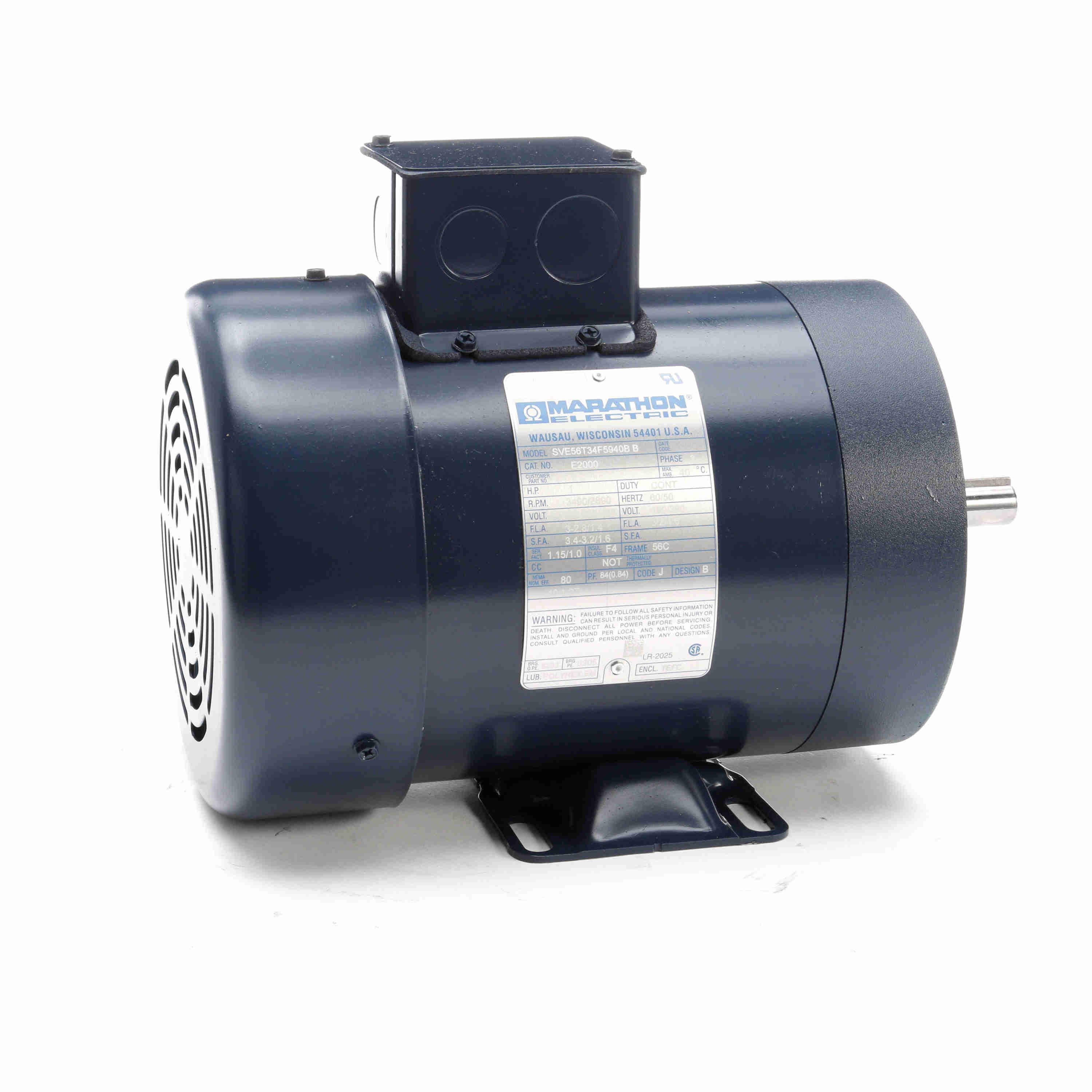

Marathon Motors 1 HP General Purpose Motor,3-Phase,3490 Nameplate RPM,Voltage 230/460,Frame 56C
- Brand: CAI - MARATHON MOTORS
- PartNumber: 056T34F5940
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Application |
| Approval | Approval |
| Classification | NEMA Premium XRI Effici. |
| Composition | Rolled Steel |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Efficiency | Efficiency |
| Efficiency % | 80 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56C |
| Frame Material | Frame Material |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1 |
| Insulation Class | Insulation Class |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 056T34F5940 |
| Kilowatts | 0.75 kW |
| Length Less Shaft | 9 5/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | E2000 |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Mounting |
| Mounting Type | Footed |
| Nameplate RPM | 3,490 |
| NEMA Frame | 56C |
| Net Weight | 28 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 11 11/16 in |
| Phase | 3 |
| RPM | 3600, 3,490 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Speeds | Speeds |
| Standards | CSA, UL recognized |
| Unspsc | Unspsc |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5773406 | 548.99 | 1 | In Stock | | Marathon Motors | 27.75 | 548.99 @ 1 |
 | Galco | 056T34F5940-MARA | 684.25 | 1 | In Stock | | Marathon Electric | 28.0 | 684.25 @ 1 |
 | sustainablesupply.com | C1517150 | 688.56 | 1 | In Stock | | Marathon | 28.0 | 688.56 @ 1 |
 | Dealers Electric | 056T34F5940 | 696.08 | 1 | In Stock | | Marathon Electric | 28.0 | 696.08 @ 1 |
 | mecampbell.com | 056T34F5940 | 815.72 | 1 | In Stock | 51 | Marathon Motors | | 815.72 @ 1 |
 | pumpproducts.com | 056T34F5940 | 1199.26 | 1 | In Stock | | Marathon | | 1199.26 @ 1 |
 | Raptor Supplies | AD6EDM | 1459.5831315 | 1 | In Stock | | MARATHON MOTORS | | 1459.5831315 @ 1 |
