- mpn056T8O5531
- brandname: Marathon Motors
- manufacturername: Marathon Motors

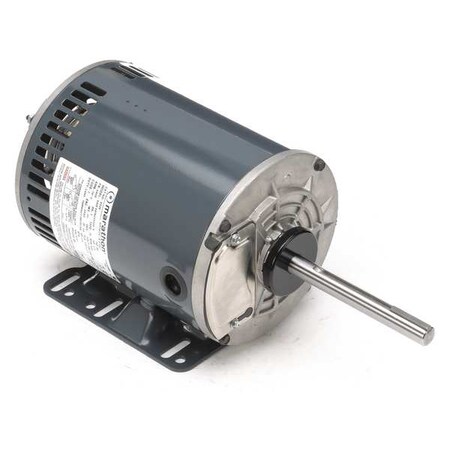

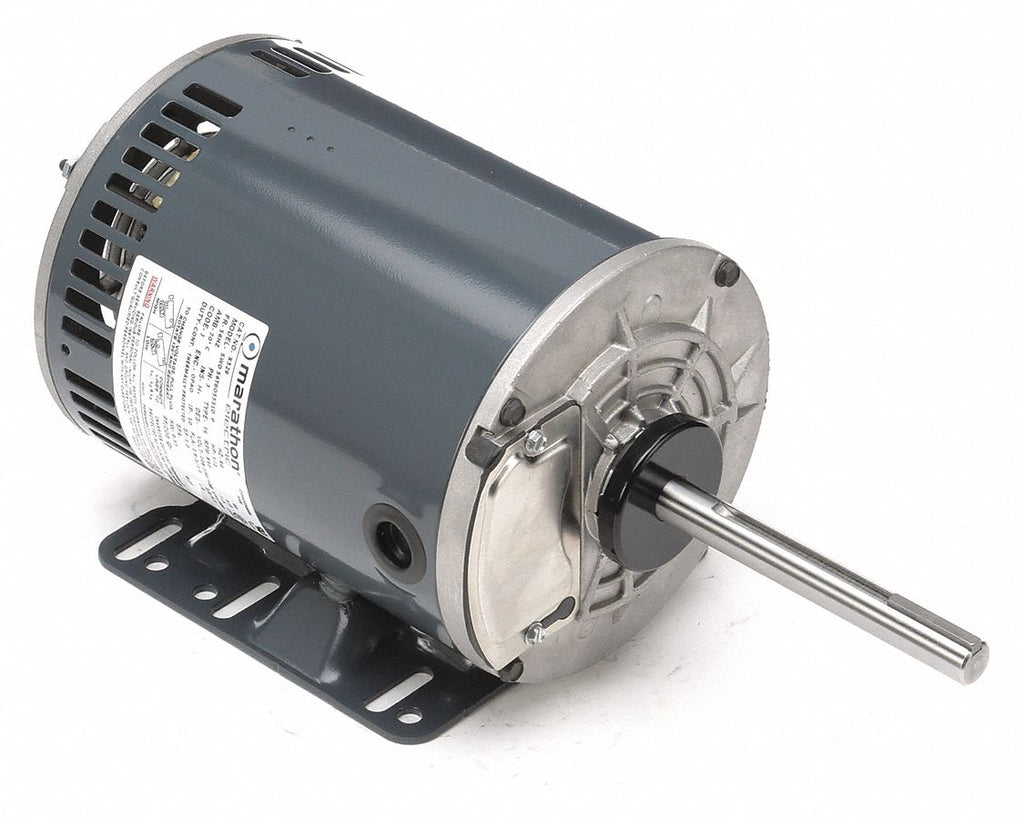

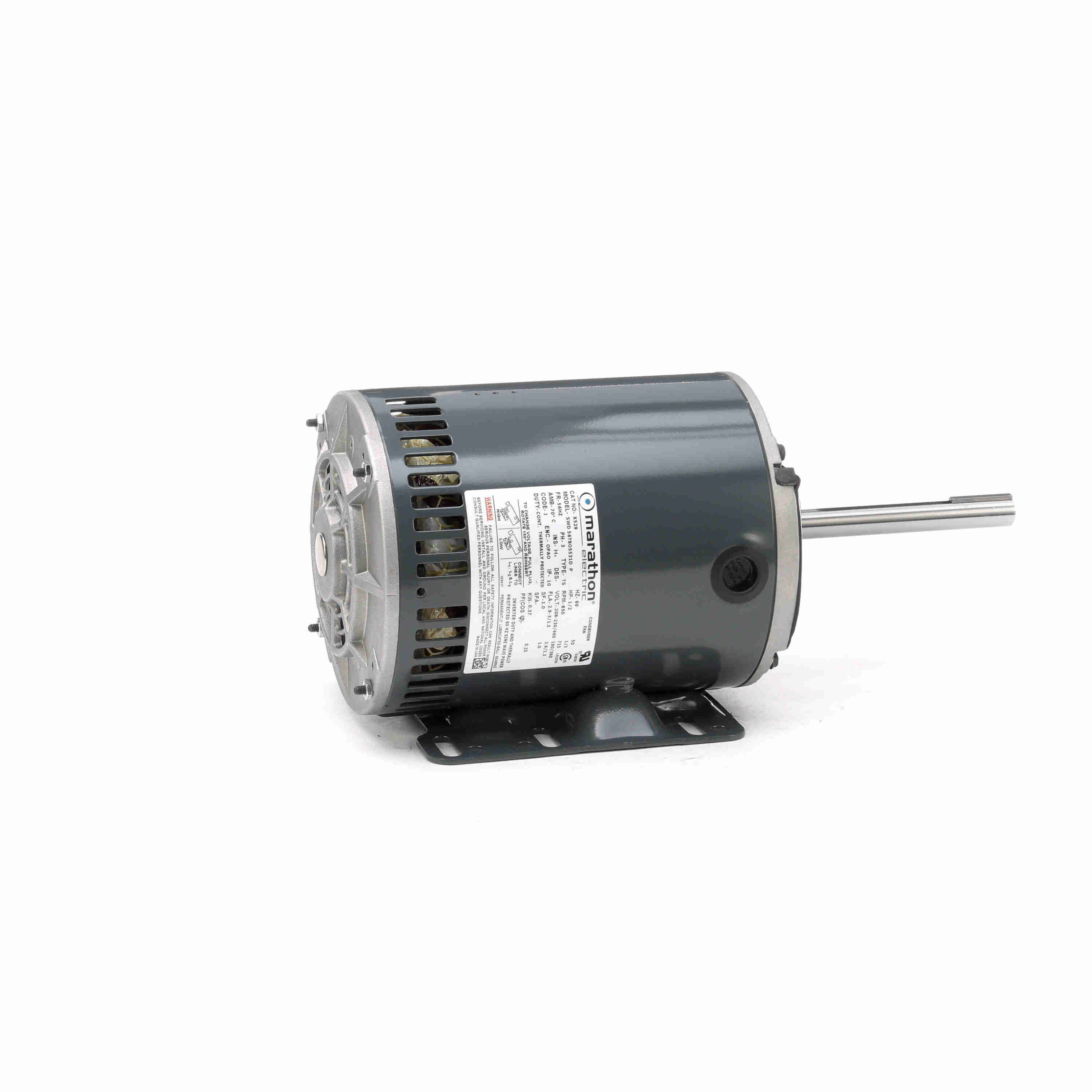

Fan Motor,1/2 HP,850 RPM,60/50Hz
- Brand: CAI - MARATHON MOTORS
- PartNumber: 056T8O5531
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Condenser Fan |
| Body Dia. | 6 1/2 in |
| Brand | Marathon Motors |
| Classification | Commercial Condenser Fa. |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 1 |
| Drive End Flange Type | Standard |
| Efficiency % | 65 % |
| Enclosure | OPAO, Open |
| Family Series | Marathon Electric Motors |
| FL Amps | 2.9-3.0/1.5 |
| FL Efficiency | 65 |
| Frame | 56HZ |
| Frame Remarks | C-Face Rigid |
| Full Load Amps | 3.0-2.9/1.50 |
| Gross Weight | 0 lbs |
| Hertz | 50, 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2, .50 |
| Ins. Class | H |
| International Shipping | No |
| Item Condition | Factory New |
| Item Number | 056T8O5531 |
| Kilowatts | 0.37 kW |
| KW | 0.37 |
| Length Less Shaft | 9 11/16 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | X529 |
| Max. Ambient Temp. | 70 Degrees C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Round Belly Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed with Single Flat |
| Motor Sub Application | Condenser Fan |
| Mounting | Footed |
| Mounting Type | Footed |
| Mpn | 056T8O5531 |
| Nameplate RPM | 850 |
| NEMA Frame | 56HZ |
| Net Weight | 31 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Number of Speeds | 1 |
| Overall Length | 14 11/16 in |
| Part Number | 056T8O5531 |
| Phase | 3 |
| Product Type | HVAC |
| RPM | 900, 850 RPM |
| RPM Range | 0-1,000 |
| Service Factor | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 5 in |
| SKU | ZO-G5529605 |
| Speed (RPM) | 850 |
| SubCategory | Motors/Ac Motors |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5529605 | 599.0 | 1 | In Stock | | Marathon Motors | 29.2 | 599.0 @ 1 |
 | Galco | 056T8O5531-MARA | 631.57 | 1 | In Stock | | Marathon Electric | 31.0 | 631.57 @ 1 |
 | Dealers Electric | 056T8O5531 | 664.84 | 1 | In Stock | | Marathon Electric | 31.0 | 664.84 @ 1 |
 | motorsandcontrol.com | X529 | 705.87 | 1 | In Stock | | Marathon Motors | | 705.87 @ 1 |
 | simsupply.com | ZO-G5529605 | 751.75 | 1 | In Stock | | Marathon Motors | | 751.75 @ 1 |
 | sustainablesupply.com | C2792390 | 782.94 | 1 | In Stock | | Marathon | 29.2 | 782.94 @ 1 |
 | Raptor Supplies | AJ2MQC | 975.848796 | 1 | In Stock | | MARATHON MOTORS | | 975.848796 @ 1 |
 | pumpproducts.com | 056T8O5531 | 1092.57 | 1 | In Stock | | Marathon | | 1092.57 @ 1 |
