CAI - MARATHON MOTORS 182TTFBD6003

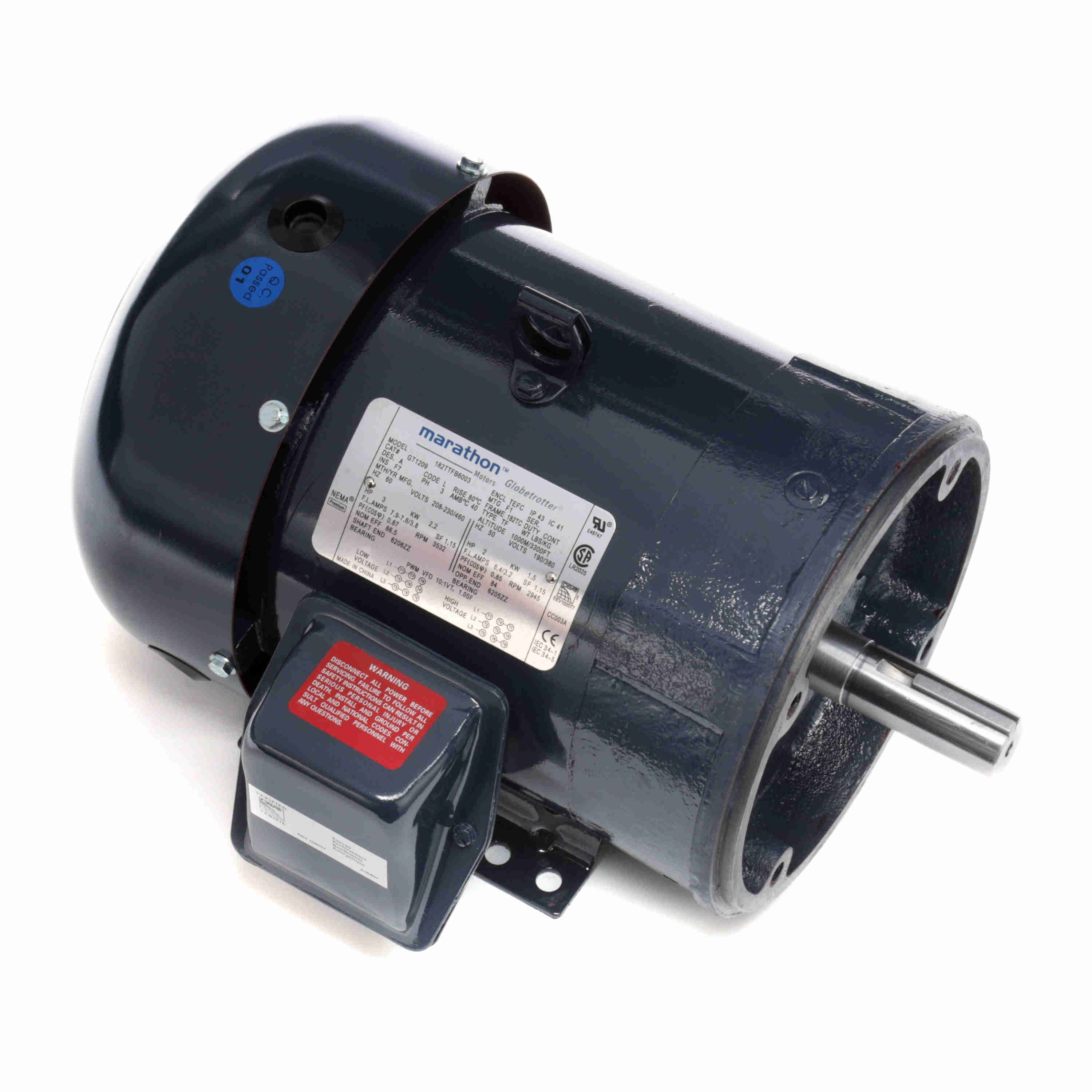

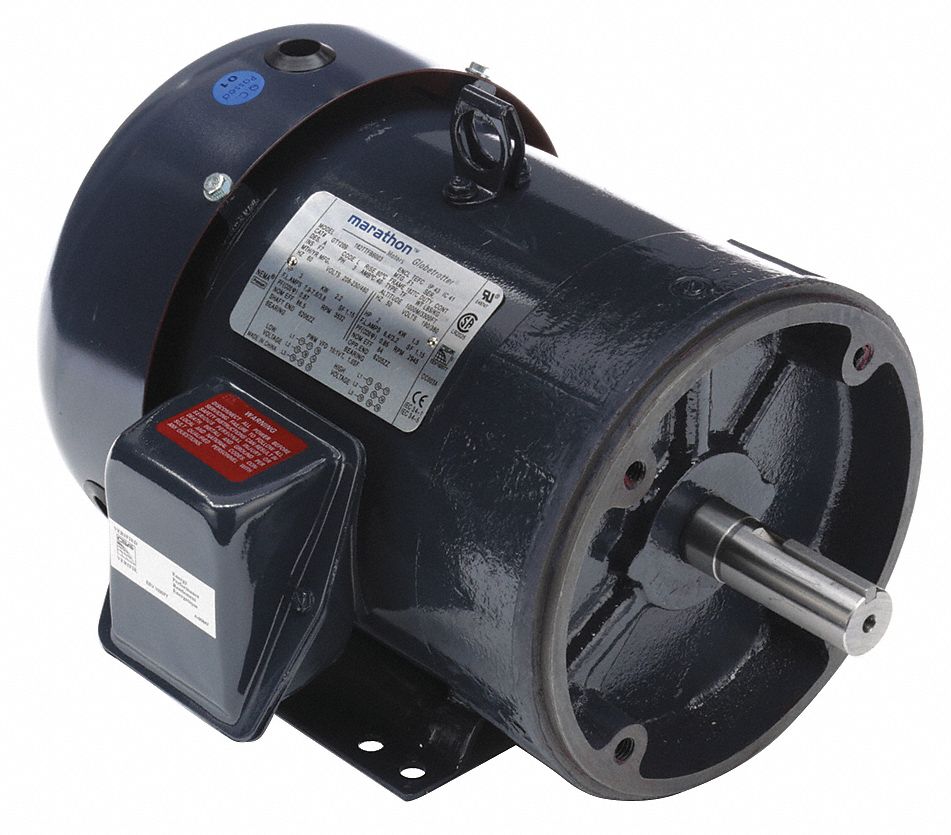

Marathon Motors 3 HP General Purpose Motor,3-Phase,3530 Nameplate RPM,Voltage 230/460,Frame 182TC

Marathon Motors 3 HP General Purpose Motor,3-Phase,3530 Nameplate RPM,Voltage 230/460,Frame 182TCzoom

Attributes

Key Value
Capacitor RequiredNo
CC NumberCC003A
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Family SeriesMarathon Electric Misce.
Frame182TC
Frame MaterialRolled steel
Full Load Amps8.2/4.1
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
HP3
Hz60
Ins. ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Item Number182TTFBD6003
Length Less Shaft13 1/8 in
ManufacturerMarathon Electric
Manufacturer Part NumberGT1209A
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Nameplate RPM3,530
NEMA DesignA
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency86.5 %
Overall Length15 7/8 in
PhaseThree
RPM Group3001-3600
RPM Range3,001-3,600
Shaft Dia.1 1/8 in
Shaft Length2 7/8 in
StandardsCE, CSA (LR2025), UL (E.
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Weight83 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco182TTFBD6003-MARA490.081In StockMarathon Electric490.08 @ 1
thumbzoomZoroG5528397527.011In Stock26Marathon Motors79.0527.01 @ 1
thumbzoomsustainablesupply.comC2791478812.571In StockMarathon79.0812.57 @ 1
thumbzoomRaptor SuppliesAD4WHR929.5011181In StockMARATHON MOTORS929.501118 @ 1
thumbzoompumpproducts.com182TTFBD60031322.821In StockMarathon1322.82 @ 1
