Marathon Electric 184TTDW14017

B0199U2RM0

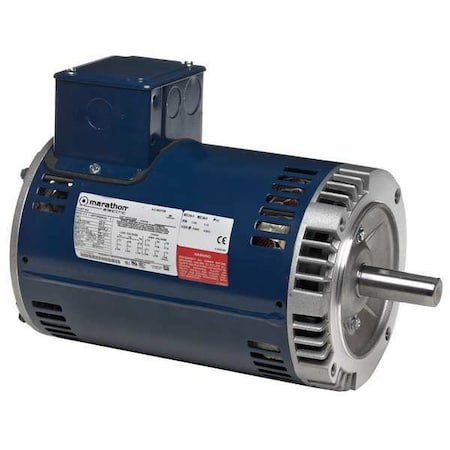

Marathon 184TTDW14017 General Purpose Motor, 3 Phase, Open Drip Proof, C-Face, Ball Bearing, 7-1/2 hp, 3600 RPM, 1 Speed, 208-230/460 VAC, 184TC Frame

Marathon 184TTDW14017 General Purpose Motor, 3 Phase, Open Drip Proof, C-Face, Ball Bearing, 7-1/2 hp, 3600 RPM, 1 Speed, 208-230/460 VAC, 184TC Framezoom

Attributes

Key Value
ConstructionRolled Steel
Country of Origin (subj.Multiple
Drive End Flange TypeC-Face
DutyContinuous
EnclosureOpen
FL Amps17.6/8.8
FL Efficiency87.5
Frame184TC
Frame MaterialRolled Steel
Full Load Amps20.0-17.6/8.8
Hertz50, 60
HP7-1/2, 7.5
Hz60/50
Ins. ClassF
ItemGeneral Purpose Motor
KW5.5
Length Less Shaft11-5/8"
ManufacturerMarathon Motors
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupEnergy Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingRound
Nameplate RPM3470
No. of Speeds1
Nominal Efficiency87.5%
Number of Speeds1
Overall Length14-1/4"
Part Number184TTDW14017
Phase3
Product TypeGeneral Purpose
RPM Group3001-3600
RPM Range3001-3600
Shaft Dia.1-1/8"
Shaft Length2-3/4"
Speed (RPM)3470
StandardsUL, CSA
Voltage230V, 460V, 208-230/460
Voltage Compatibility208, 230, 240, 460, 208.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG5625733866.01In Stock15Marathon Motors866.0 @ 1
