- mpn213THTL7726
- brandname: Marathon Motors
- manufacturername: Marathon Motors

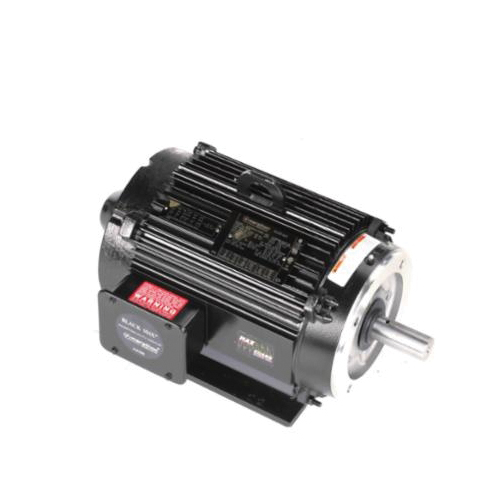

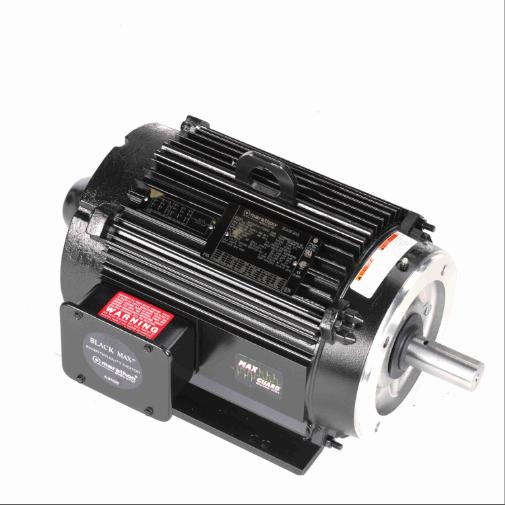

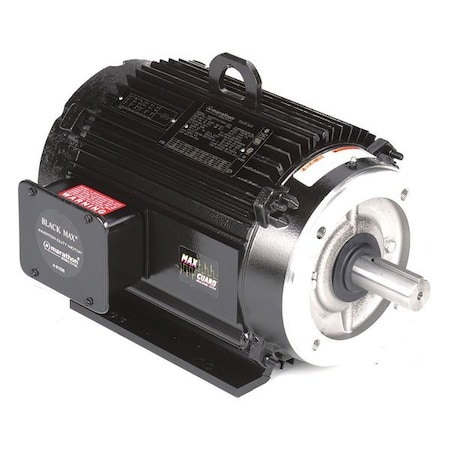

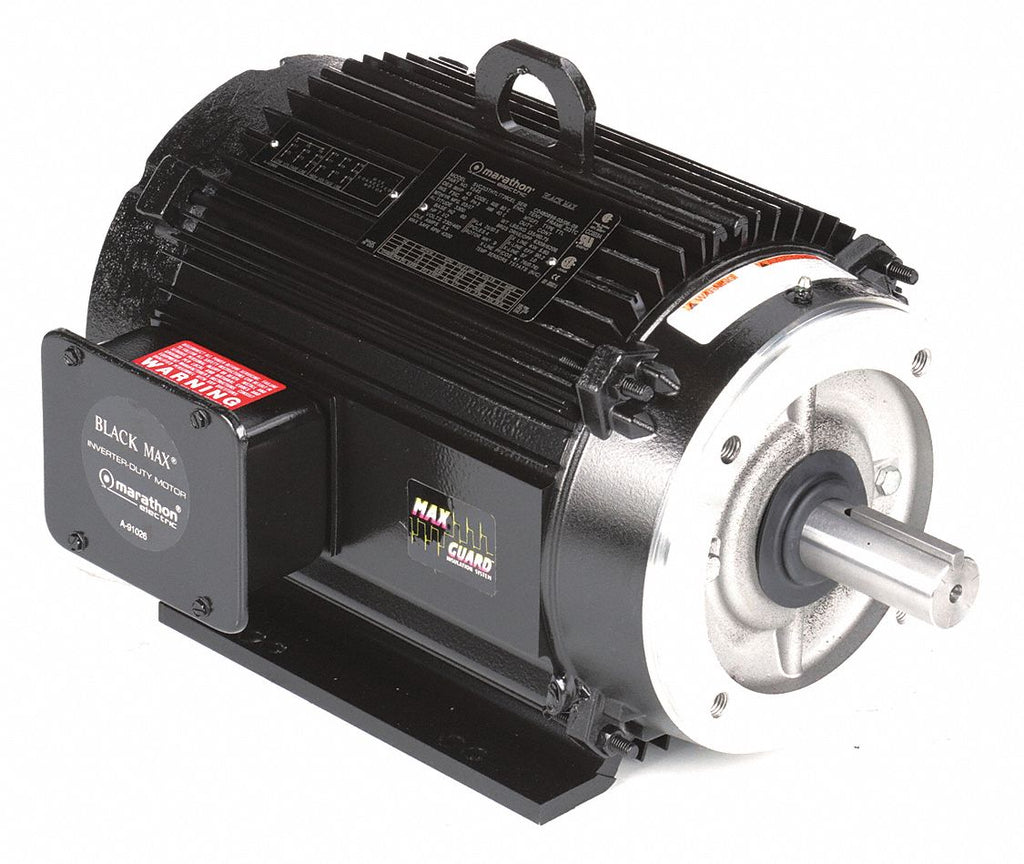

Marathon,7.50 HP Variable Speed Motor, 3 Phase, 1800 RPM, 230/460 V, 213TC Frame, TENV (213THTL7726)
- Brand: Marathon Electric
- PartNumber: 213THTL7726
- Model: 213THTL7726
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Regal Beloit
- Label: Regal Beloit
Attributes
| Key | Value |
|---|
| Classification | Inverter Vector Duty: B. |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency % | 90.2 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Shaft Dimensions | 5/8 in x 1 3/4 in |
| Family Series | Marathon Electric Motors |
| Finish | Black |
| FL Amps | 21.0/10.5 |
| FL Efficiency | 90.2 |
| Frame | 213TC |
| Frame Material | Aluminum |
| Frame Remarks | C-Face Rigid |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7.5 |
| Hz | 60 |
| Item | Vector Motor |
| Item Condition | Factory New |
| Item Number | 213THTL7726 |
| Kilowatts | 5.5 kW |
| KW | 5.5 |
| Length Less Shaft | 17 7/16 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | Y545 |
| Manufacturers Warranty . | 3 Years |
| Max. Speed | 4,200 RPM |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 1,765 |
| NEMA Frame | 213TC |
| Net Weight | 135 lbs |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | 1 |
| Overall Length | 20 9/16 in |
| Part Number | 213THTL7726 |
| Phase | 3 |
| Product Type | Vector Duty |
| RPM | 1,765 RPM, 1800 |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Speed (RPM) | 1765 |
| Speed Range | 1,000:1 |
| Torque | 22.3 ft-lb |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230/460 |
| Warranty | 3 yr |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1888774 | 1895.99 | 1 | 1 | | Marathon Motors | 130.0 | 1895.99 @ 1 |
 | Galco | 213THTL7726-MARA | 1910.01 | 1 | In Stock | | Marathon Electric | 135.0 | 1910.01 @ 1 |
 | motorsandcontrol.com | Y545 | 2134.72 | 1 | In Stock | | Marathon Motors | | 2134.72 @ 1 |
 | Dealers Electric | 213THTL7726 | 2195.96 | 1 | 11 | | Marathon Electric | 146.0 | 2195.96 @ 1 |
 | Purvis | Y545 | 2335.07 | 1 | In Stock | | Marathon | | 2335.07 @ 1 |
 | sustainablesupply.com | C1564950 | 2960.66 | 1 | In Stock | | Marathon | 130.0 | 2960.66 @ 1 |
 | pumpproducts.com | 213THTL7726 | 3492.4 | 1 | In Stock | | Marathon | | 3492.4 @ 1 |
 | Raptor Supplies | AE6KKW | 3651.0640335 | 1 | In Stock | | MARATHON MOTORS | | 3651.0640335 @ 1 |
