- mpn213THTL7776
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

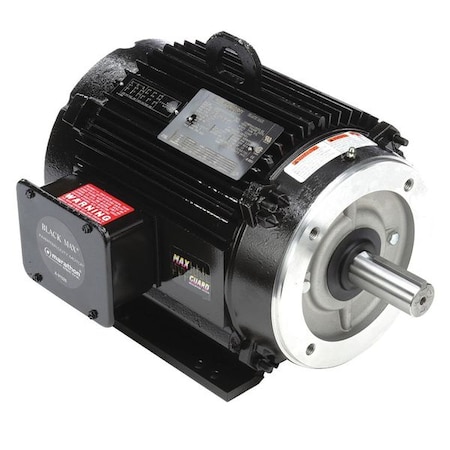

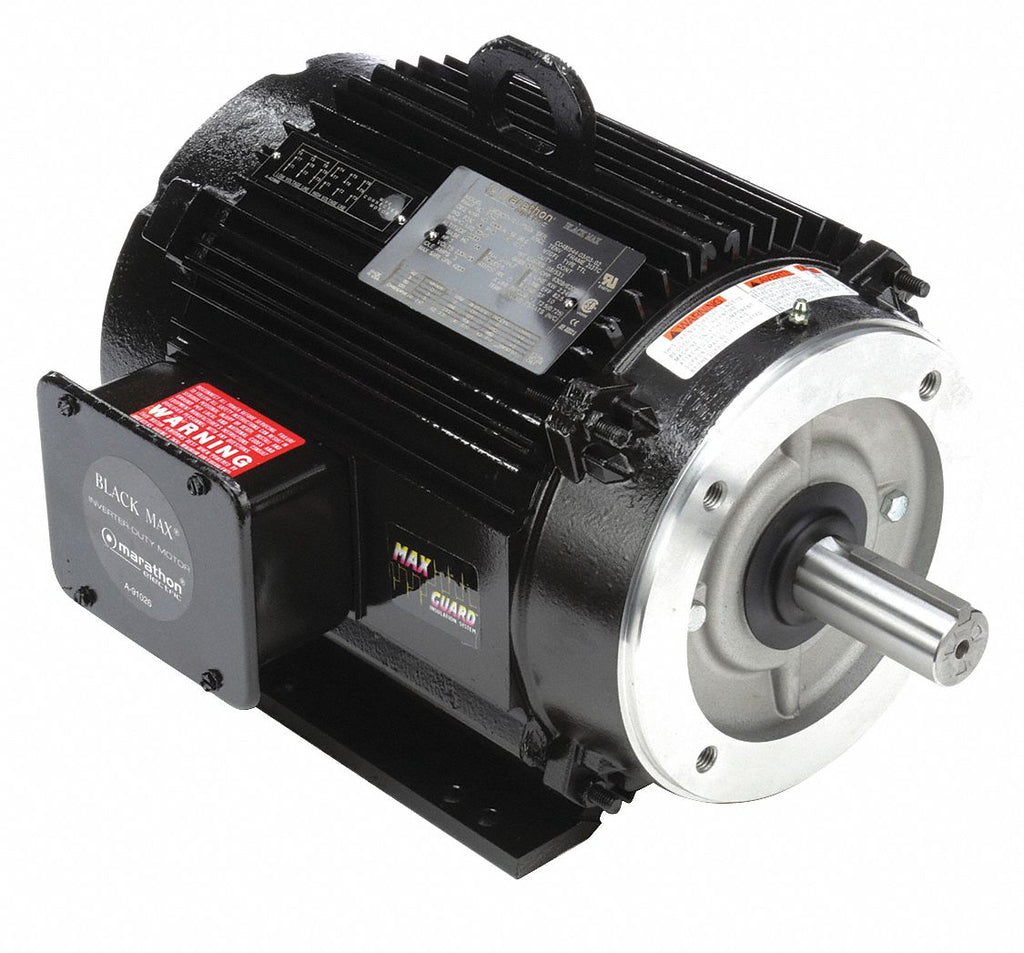

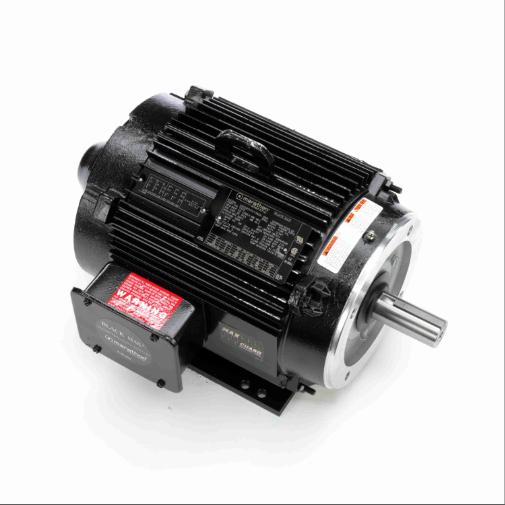

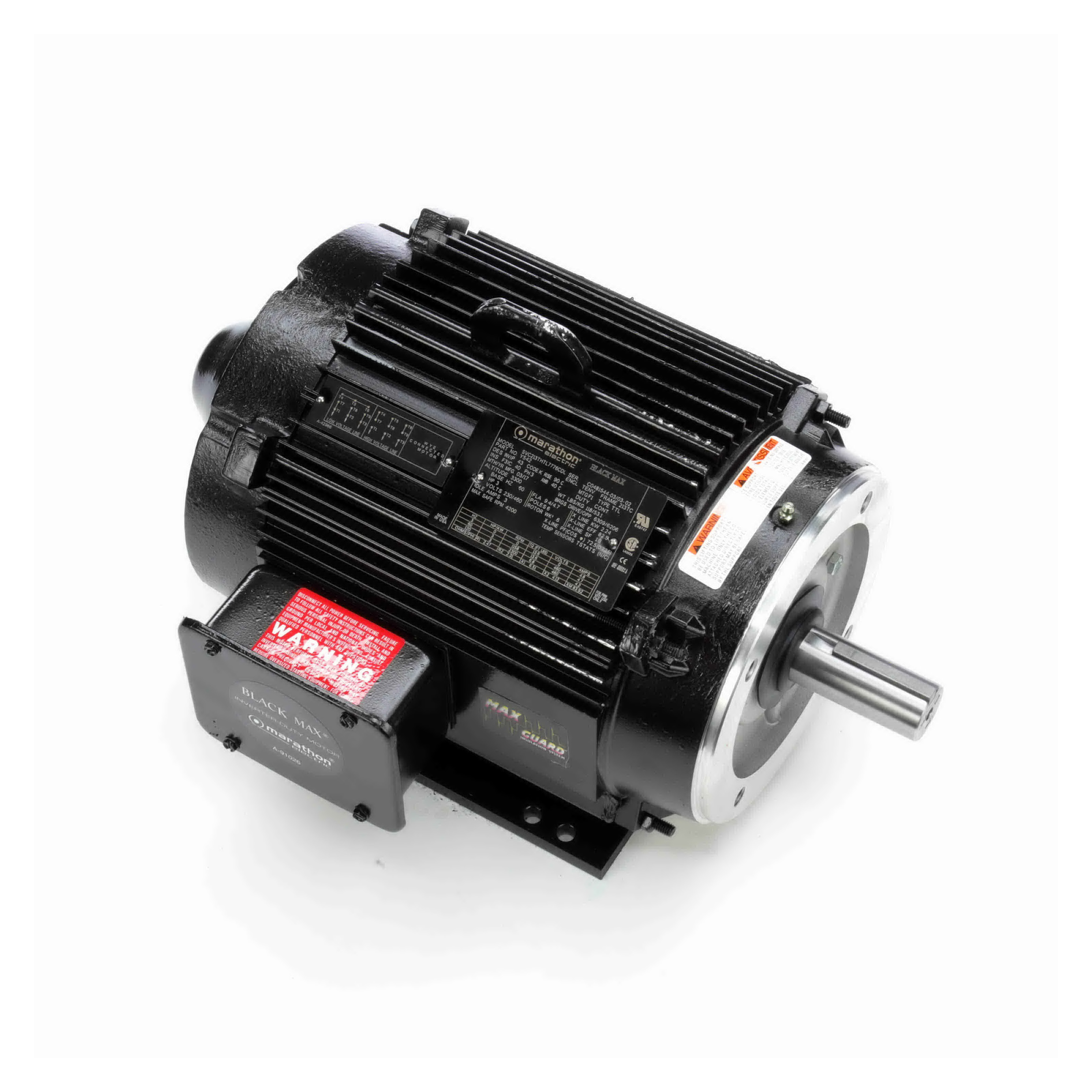

Marathon,3 HP Variable Speed Motor, 3 Phase, 1200 RPM, 230/460 V, 213TC Frame, TENV
- Brand: Marathon Electric
- PartNumber: 213THTL7776
- Model: MY542
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | Application |
| Approval | Approval |
| Base | Rigid |
| Classification | Inverter Vector Duty: B. |
| Composition | Aluminum |
| Conduit Box Position | F1, F2 |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Construction | Aluminum |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 82.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Acceptable | Yes |
| Encoder Shaft | Yes |
| Encoder Shaft Dimensions | 5/8 in x 1 5/8 in |
| Family Series | Marathon Electric Motors |
| Finish | Black |
| FL Amps | 9.4/4.7 |
| FL Efficiency | 82.5 |
| Frame | 213TC |
| Frame Material | Frame Material, Aluminum |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 9.4/4.7 |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Insulation Feature | MAX GUARD Class F |
| Item | Vector Motor |
| Item Condition | Factory New |
| Item Number | 213THTL7776 |
| Kilowatts | 2.2 kW |
| KW | 2.2 |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | Y542 |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 4,200 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 1,160 |
| NEMA Design | A |
| NEMA Frame | 213TC |
| Net Weight | 118 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | 1, Number of Speeds |
| Overall Length | 19 1/16 in |
| Part Number | 213THTL7776 |
| Phase | 3, Three |
| Product Type | Vector Duty |
| RPM | 1,160 RPM, 1200 |
| RPM Range | 1,101-1,200 |
| Service Factor | 1, Service Factor |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Speed (RPM) | 1160 |
| Speed Range | 1,000:1 |
| Speeds | Speeds |
| Standards | CE, UL Recognized |
| Torque | 13.6 ft-lb |
| Unspsc | Unspsc |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
| Weight | 118 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5649673 | 1645.0 | 1 | In Stock | 26 | Marathon Motors | 118.0 | 1645.0 @ 1 |
 | Galco | 213THTL7776-MARA | 1732.11 | 1 | In Stock | | Marathon Electric | 118.0 | 1732.11 @ 1 |
 | motorsandcontrol.com | Y542 | 1825.84 | 1 | In Stock | | Marathon Motors | | 1825.84 @ 1 |
 | mecampbell.com | 213THTL7776 | 1935.9 | 1 | In Stock | 33 | Marathon Motors | | 1935.9 @ 1 |
 | Dealers Electric | 213THTL7776 | 2010.05 | 1 | 12 | | Marathon Electric | 105.0 | 2010.05 @ 1 |
 | Purvis | Y542 | 2117.67 | 1 | In Stock | | Marathon | | 2117.67 @ 1 |
 | sustainablesupply.com | C1517456 | 2330.08 | 1 | In Stock | | Marathon | 118.0 | 2330.08 @ 1 |
 | Raptor Supplies | AD6NWA | 2873.4331275 | 1 | In Stock | | MARATHON MOTORS | | 2873.4331275 @ 1 |
 | pumpproducts.com | 213THTL7776 | 3168.71 | 1 | In Stock | | Marathon | | 3168.71 @ 1 |
