Marathon Industries 213TTDWD16345

B07HCNBY41

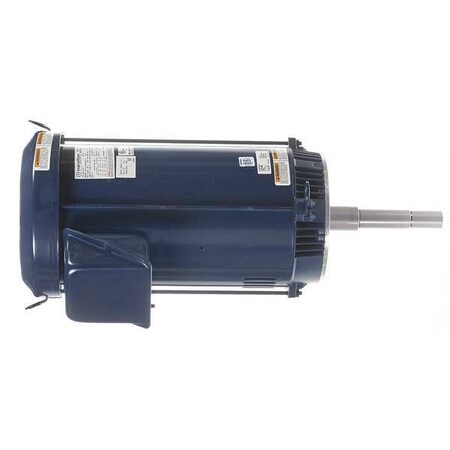

Close-Coupled Pump Motor 7-1/2 HP

Close-Coupled Pump Motor 7-1/2 HPzoom

Attributes

Key Value
CategoryElectric Motor
CC NumberCC003A
CompositionRolled Steel
Country of Origin (subj.Mexico
DutyContinuous
Efficiency %91 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
Frame213JPV
Frame RemarksFOOTLESS
Full Load Amps23.0
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7.50, 7-1/2
Hz60
Ins. ClassB
Inverter RatedNo
ItemClose-Coupled Pump Motor
Item ConditionFACTORY NEW
Item Number213TTDWD16345
Kilowatts5.5 kW
Length Less Shaft14-11/16"
ManufacturerMarathon Electric
Manufacturer Part NumberU185A
Max. Ambient Temp.40 Degrees C
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
mountingC-face (NO base)
Mounting TypeRound
Nameplate RPM1765
NEMA Frame213JPV
Net Weight145 lbs
Nominal Efficiency91.7%
Nominal Voltage208 VAC
Overall Length22-13/16"
Phase3
RPM1,765 RPM, 1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.1-3/8"
Shaft Length8-1/8"
StandardsUL (E49747), CSA (LR202.
Voltage200
Voltage (AC)200 VAC
Voltage Compatibility200, 200-208, 200-230, .
Volts200

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG03556731056.011In Stock35Marathon Motors1056.01 @ 1
thumbzoomGalco213TTDWD16345-MARA1150.681In StockMarathon Electric145.01150.68 @ 1
Grainger53UE871275.01In Stock35MARATHON MOTORS1275.0 @ 1
thumbzoomDealers Electric213TTDWD163451662.961In StockMarathon Electric145.01662.96 @ 1
