Marathon Industries 215TTFS6881

B07HCNWP5N

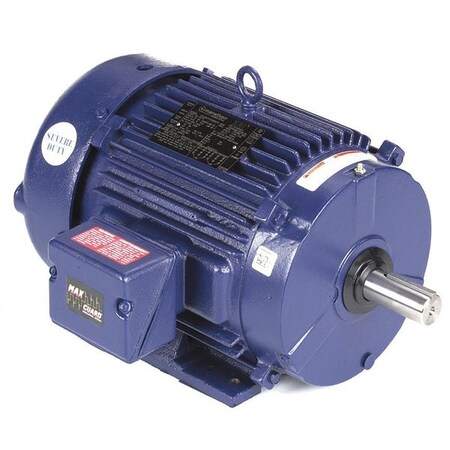

Severe Duty Mtr 3-Ph TEFC 5 HP

Severe Duty Mtr 3-Ph TEFC 5 HPzoom

Attributes

Key Value
CC NumberCC003A
ClassificationBlue Chip Severe Duty A.
CompositionCast Iron
Country of Origin (subj.United States
DutyContinuous
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame215T
Frame MaterialCast Iron
Frame RemarksRigid
Full Load Amps13.8/6.9
Gross Weight0 lbs
Horsepower5 hp
HP5
Hz60
IncludesMax Guard Insulation
Ins. ClassF
ItemSevere Duty Motor
Item ConditionFactory New
Item Number215TTFS6881
Kilowatts3.7 kW
Length Less Shaft16-3/16"
ManufacturerMarathon Electric
Manufacturer Part NumberE474
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM1170
NEMA Frame215T
Net Weight203 lbs
No. of Speeds1
Nominal Efficiency92.4%
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length19-3/4"
Phase3
RPM1200, 1,170 RPM
RPM Group1101-1200
RPM Range1101-1200
Service Factor1.15
Shaft Dia.1-3/8"
Shaft Length3-9/16"
StandardsUL (E49747), CSA (LR202.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility460, 230/460, 220-230/4.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco215TTFS6881-MARA1229.911In StockMarathon Electric203.01229.91 @ 1
thumbzoomZoroG99439271291.621In Stock26Marathon Motors1291.62 @ 1
thumbzoomDealers Electric215TTFS68811563.91In StockMarathon Electric203.01563.9 @ 1
