- mpn215TTFS7290
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

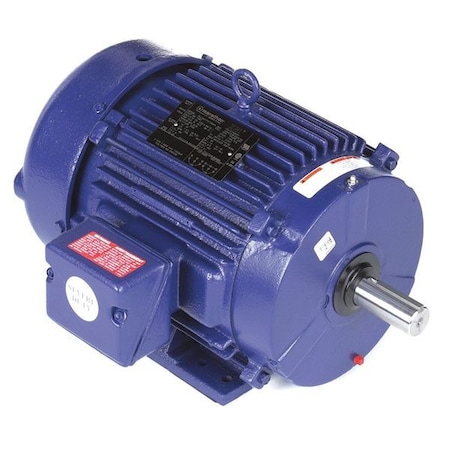

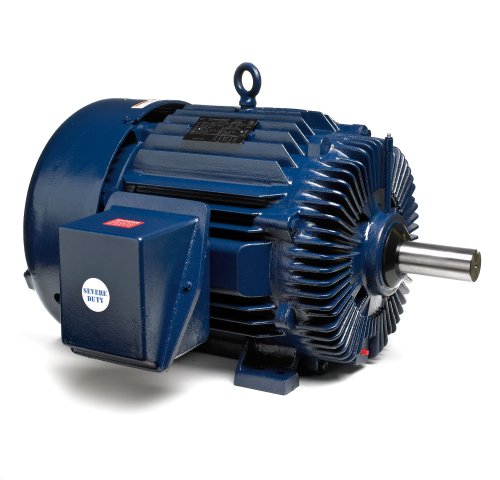

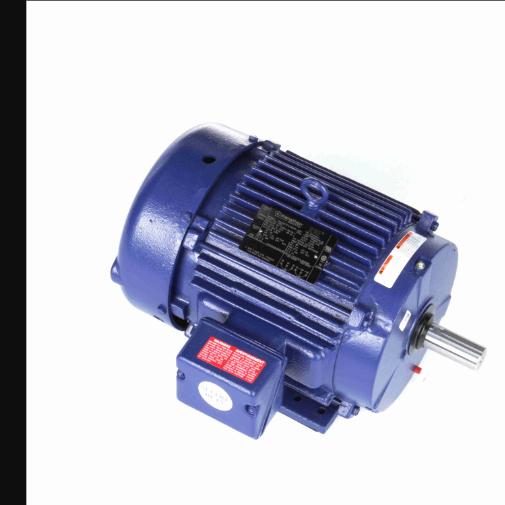

Marathon Electric/Regal Beloit - 215TTFS7290-7-1/2, 1-29/32 HP Cooling Tower Motor, 3-Phase, 1765/875 Nameplate RPM, 460 Voltage, Frame 215T
- Brand: Marathon Electric
- PartNumber: 215TTFS7290
- PackageQuantity: 1
- Manufacturer: Marathon Electric / Regal Beloit
- Label: Marathon Electric / Regal Beloit
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 8 1/2 in |
| CC Number | CC003A |
| Classification | Cooling Tower: Two Spee. |
| Composition | Cast Iron |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 89.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Features | Extended Grease Tubes, . |
| Finish | Epoxy |
| FL Amps | 9 |
| FL Efficiency | 89.5 |
| Frame | 215T |
| Frame Material | Cast Iron |
| Frame Remarks | Rigid |
| Full Load Amps | 9.0/3.1 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 1-7/8, 7.5 |
| Hz | 60 |
| Ins. Class | F |
| Item | Definite Purpose Motor |
| Item Condition | Factory New |
| Item Number | 215TTFS7290 |
| Kilowatts | 5.5 kW |
| KW | 5.5 |
| Length Less Shaft | 16 3/16 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | Y382 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Cooling Tower |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Speed Definite Purpose . |
| Motor Thermal Protection | None |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 1,765/875 |
| NEMA Frame | 215T |
| Net Weight | 217 lbs |
| No. of Speeds | 2 |
| Nominal Efficiency | 89.5 % |
| Nominal Voltage | 480 VAC |
| Number of Speeds | 2 |
| Output Watts | 5600 W |
| Overall Length | 19 3/4 in |
| Part Number | 215TTFS7290 |
| Phase | 3, Three |
| Product Type | Definite Purpose |
| RPM | 1,765 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 9/16 in |
| Speed (RPM) | 1765 |
| Standards | CE Listed, CSA Certifie. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 460V, 460V AC |
| Voltage (AC) | 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 460 |
| Warranty | 1 yr |
| Weight | 217 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 215TTFS7290-MARA | 2450.5 | 1 | In Stock | | Marathon Electric | 217.0 | 2450.5 @ 1 |
 | Dealers Electric | 215TTFS7290 | 2493.38 | 1 | In Stock | | Marathon Electric | 217.0 | 2493.38 @ 1 |
 | Zoro | G9827711 | 2700.0 | 1 | In Stock | 26 | Marathon Motors | 217.0 | 2700.0 @ 1 |
 | motorsandcontrol.com | Y382 | 2738.79 | 1 | In Stock | | Marathon Motors | | 2738.79 @ 1 |
 | sustainablesupply.com | C1509122 | 3367.57 | 1 | In Stock | | Marathon | 217.0 | 3367.57 @ 1 |
 | pumpproducts.com | 215TTFS7290 | 3715.27 | 1 | In Stock | | Marathon | | 3715.27 @ 1 |
 | Raptor Supplies | AF6MZF | 4736.759508 | 1 | In Stock | | MARATHON MOTORS | | 4736.759508 @ 1 |
