mpn:
brand:
manufacturer:
MPN:
Weight:
375.0
Weight:
375.0 LB
Preferred Price:
2645.99
Price:
2645.99
Min Simple Price:
1494.91
Absolute Min Price:
2122.77
Min Price:
2122.77
Dimensions:
[27.0, 21.0, 18.0]
qty:
21
simpleSku:
NDY2MA:::256TTFCD6003
sku:
NDY2MA::4C:256TTFCD6003@y0
condition:
11
seller:
Galco
amzMan:
marathon electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| CC Number | CC003A |
| Composition, Construction, Frame Material, Motor Frame Material | Cast Iron |
| Country of Origin (subject to change) | China |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Efficiency % | 91 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Family Series | Marathon Electric Motors |
| FL Amps | 47.5/23.7 |
| FL Efficiency | 91 |
| Frame Remarks, Mounting, Mounting Type | Footed |
| Frame, NEMA Frame | 256TC |
| Full Load Amps | 46.0/23.0 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Hertz | 50, 60 |
| Horsepower | 20 hp |
| HP | 20 |
| Hz | 60/50 |
| Ins. Class | F |
| Inverter Rated | No |

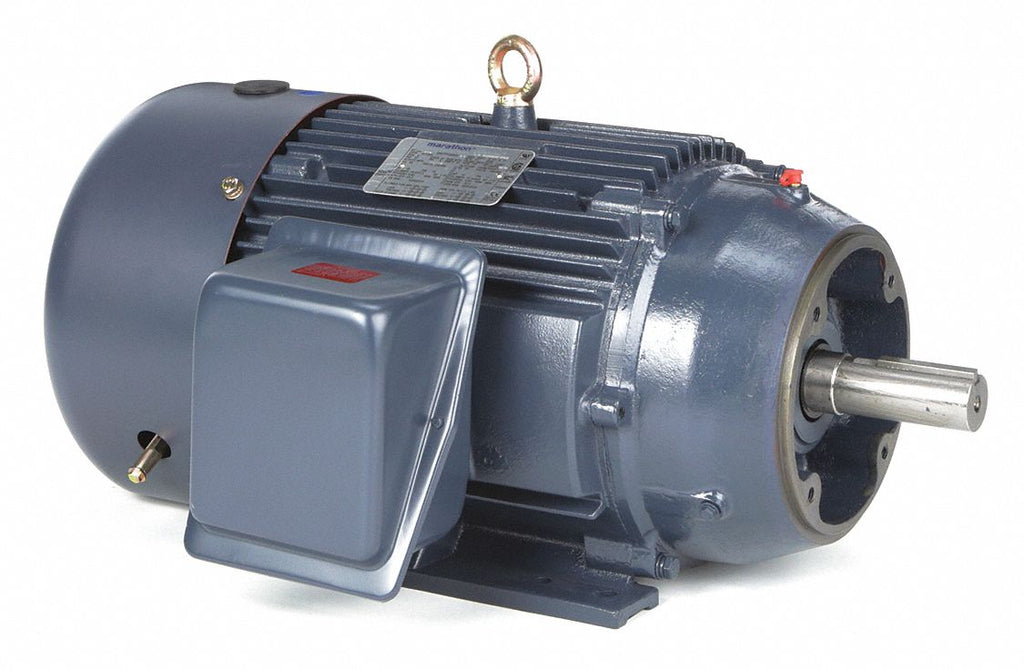

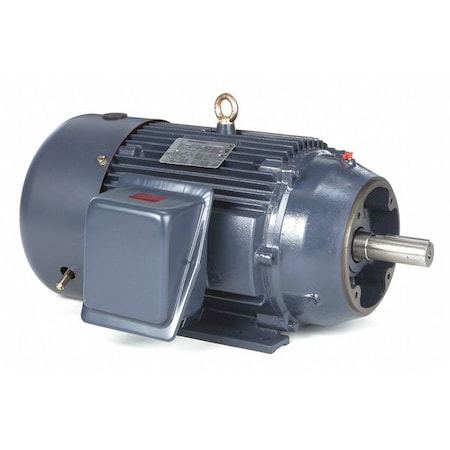

| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number, Part Number | 256TTFCD6003 |
| Kilowatts | 14.9 kW |
| KW | 14.9 |
| Length Less Shaft | 23 13/16 in |
| Manufacturer | Marathon Electric, Marathon Motors |
| Manufacturer Part Number | GT1224A |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| mounting | C-face w/ rigid base |
| Nameplate RPM | 3550 |
| Net Weight | 375 lbs |
| No. of Speeds, Number of Speeds | 1 |
| Nominal Efficiency | 91.7 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Overall Length | 27 13/16 in |
| Phase | 3 |
| Product Type | General Purpose |
| RPM | 3,540 RPM, 3600 |
| RPM Group, RPM Range | 3001-3600 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Speed (RPM) | 3540 |
| Standards | UL (E49747), CSA (LR2025), CE |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Voltage, Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 256TTFCD6003-MARA | 1494.91 | 1494.91 | 1 | In Stock | Marathon Electric | 375.0 | 1494.91 @ Qty: 1+ | |
 | motorsandcontrol.com | GT1224A | 1670.77 | 1670.77 | 1 | In Stock | Marathon Motors | 1670.77 @ Qty: 1+ | ||
 | Zoro | G9815994 | 1799.72 | 1799.72 | 1 | In Stock | 15 | Marathon Motors | 364.0 | 1799.72 @ Qty: 1+ |
 | Dealers Electric | 256TTFCD6003 | 1908.75 | 1908.75 | 1 | 1 | Marathon Electric | 123.0 | 1908.75 @ Qty: 1+ | |
 | sustainablesupply.com | C2791757 | 2629.44 | 2629.44 | 1 | In Stock | Marathon | 364.0 | 2629.44 @ Qty: 1+ | |
 | pumpproducts.com | 256TTFCD6003 | 3547.74 | 3547.74 | 1 | In Stock | Marathon | 3547.74 @ Qty: 1+ |
