mpn:
brand:
manufacturer:
MPN:
Weight:
317.0
Weight:
317.0 LB
Preferred Price:
3121.9
Price:
3121.9
Min Simple Price:
1763.79
Absolute Min Price:
2504.58
Min Price:
2504.58
Dimensions:
[31.0, 26.0, 25.0]
qty:
21
simpleSku:
NDY2MA:::284TTDBD6076
sku:
NDY2MA::ML:284TTDBD6076@y0
condition:
11
seller:
Galco
amzMan:
marathon electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| CC Number | CC003A |
| Composition | Rolled Steel |
| Country of Origin (subject to change) | Mexico |
| Duty, Duty Cycle | Continuous |
| Efficiency % | 91.7 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame, NEMA Frame | 284T |
| Full Load Amps | 41.0/20.6 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Horsepower | 15 hp |
| HP | 15 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |

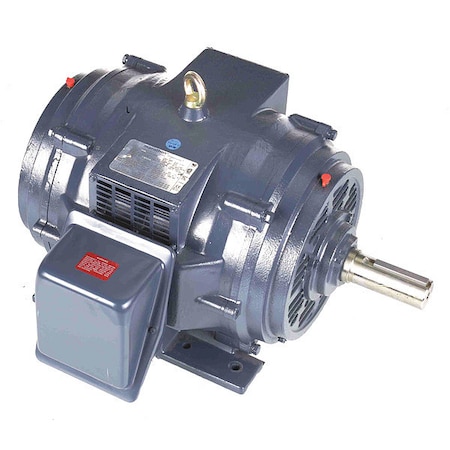

| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 284TTDBD6076 |
| Kilowatts | 11.2 kW |
| Length Less Shaft | 21 1/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | GT0060 |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type, mounting | Rigid Base |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 1,184 |
| NEMA Design | B |
| Net Weight | 317 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.5 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Overall Length | 25 11/16 in |
| Phase | 3, Three |
| RPM | 1200, 1,184 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Shaft Dia. | 1 7/8 in |
| Shaft Length | 4 5/8 in |
| Standards | CE, CSA, UL Recognized |
| Usable @ 200V, Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 230/460 |
| Weight | 317 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 284TTDBD6076-MARA | 1763.79 | 1763.79 | 1 | In Stock | Marathon Electric | 317.0 | 1763.79 @ Qty: 1+ | |
 | Dealers Electric | 284TTDBD6076 | 2143.16 | 2143.16 | 1 | In Stock | Marathon Electric | 300.0 | 2143.16 @ Qty: 1+ | |
 | Zoro | G4811989 | 2500.76 | 2500.76 | 1 | In Stock | 25 | Marathon Motors | 330.69 | 2500.76 @ Qty: 1+ |
 | pumpproducts.com | 284TTDBD6076 | 3699.35 | 3699.35 | 1 | In Stock | Marathon | 3699.35 @ Qty: 1+ |
