- mpn5K38RN30
- brandname: Marathon Motors
- manufacturername: Marathon Motors

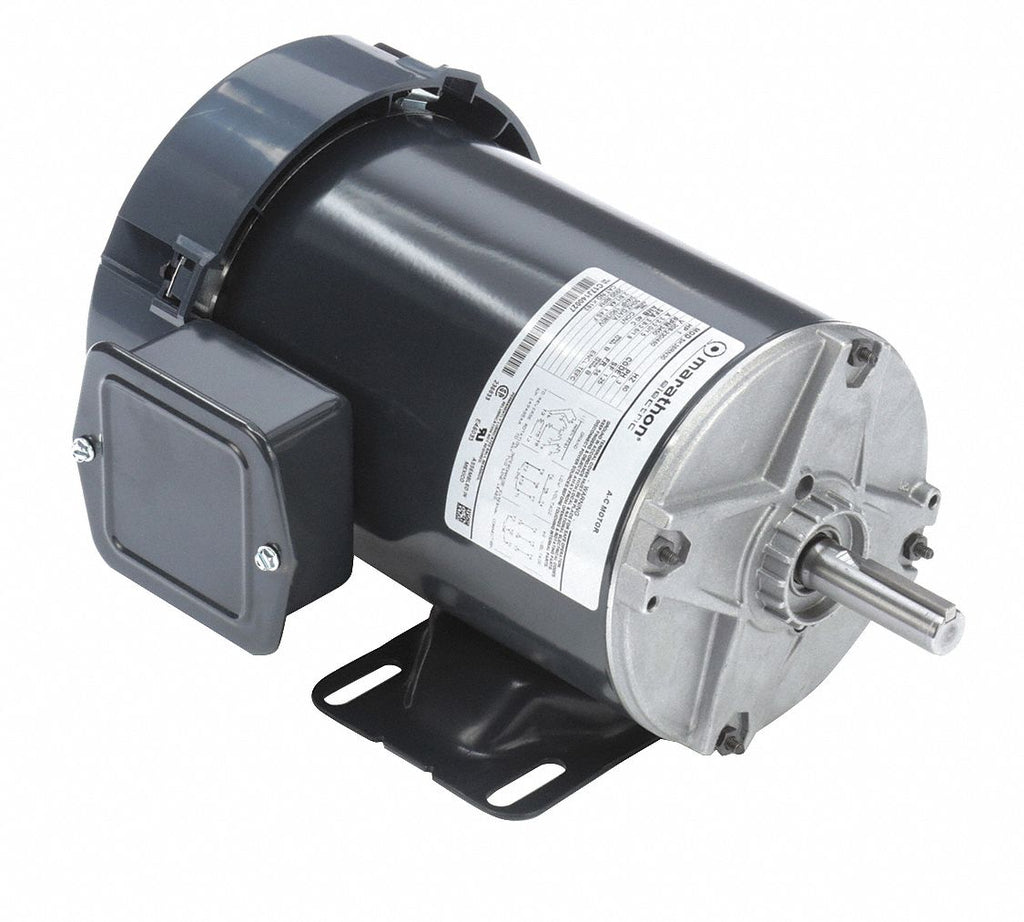

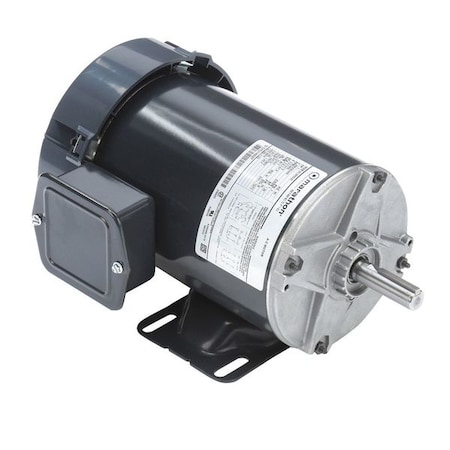

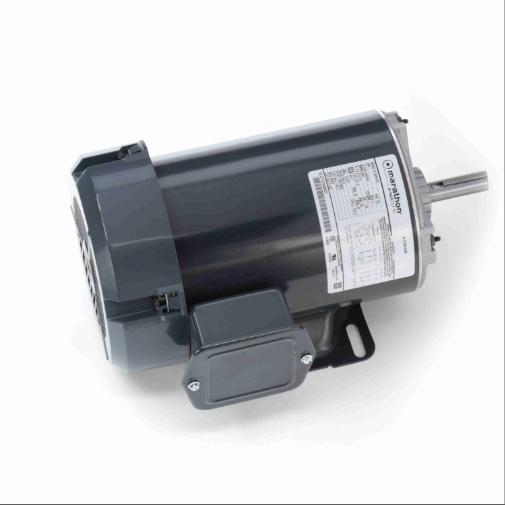

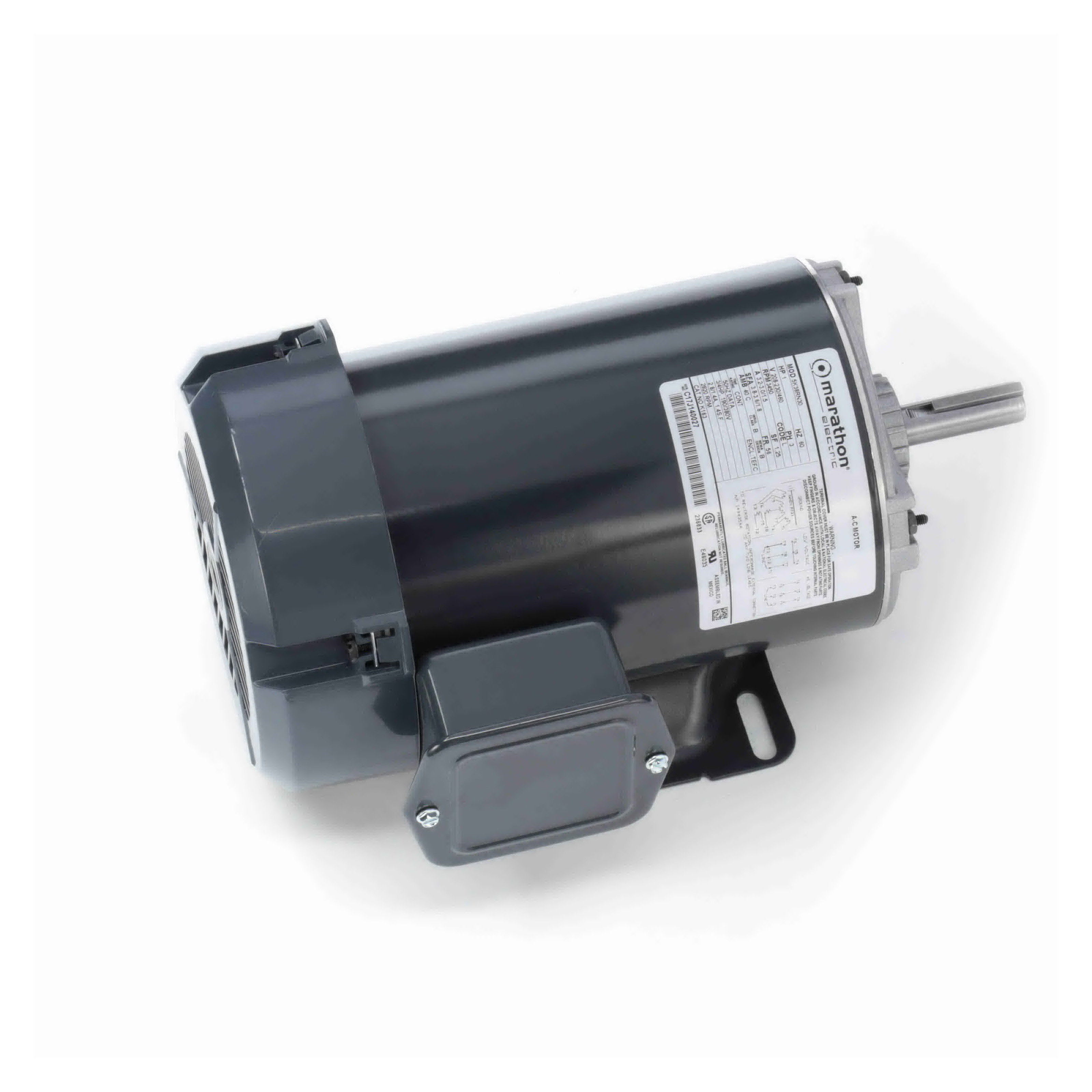

Motor, 3-Ph, 1 HP, 3450 RPM, 208-230/460V
- Brand: Marathon Industries
- PartNumber: 5K38RN30
- Model: 5K38RN30
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Classification | General Purpose |
| Composition | Rolled Steel |
| Current Stock | 3 |
| Duty | Continuous |
| Efficiency % | 78.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frame Remarks | WB |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1 |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5K38RN30 |
| Kilowatts | 0.75 kW |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 1/2 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | K163 |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Mpn | 5K38RN30 |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56 |
| Net Weight | 25 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Overall Length | 12 3/8 in |
| Phase | 3 |
| RPM | 3,450 RPM, 3600 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G6158957 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
