| Bearing Protection | Shields |
| Body Dia. | 6.4 in |
| Bolt Circle Dia. | 5 7/8 in |
| Country of Origin (subject to change) | Mexico |
| Duty Cycle | Continuous |
| Frame | 56J |
| Full Load Amps | 9.0-8.6/4.3 |
| Height | 6 7/16 in |
| HP | 3 |
| Hz | 60 |
| Ins. Class | B |

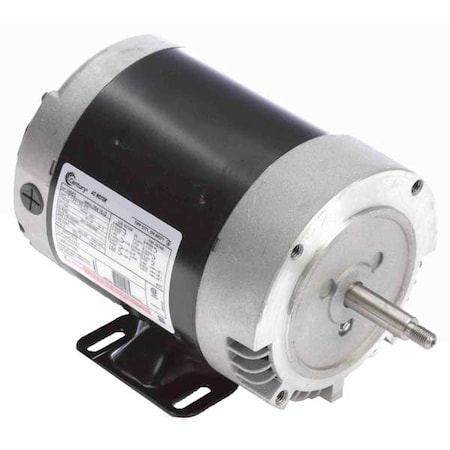

| Item | General Purpose Pump Motor |
| Length Less Shaft | 10 1/8 in |
| Max. Ambient Temp. | 104 Degrees F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection, NEMA Design | None |
| Nameplate RPM | 3,450 |
| No. of Speeds | 1 |
| Overall Length | 12 11/16 in |
| Phase | Three |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Standards | CSA Certified, UL Recognized |
| Usable @ 200V | Yes |
| Usable @ 208V | No |
| Voltage | 200-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC |
| Weight | 33 lb |
