Marathon Electric J061

B007ZQOIW8

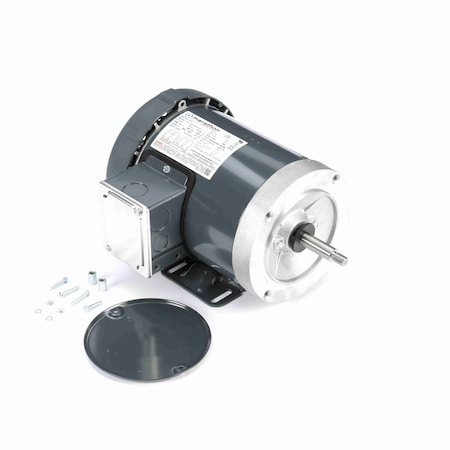

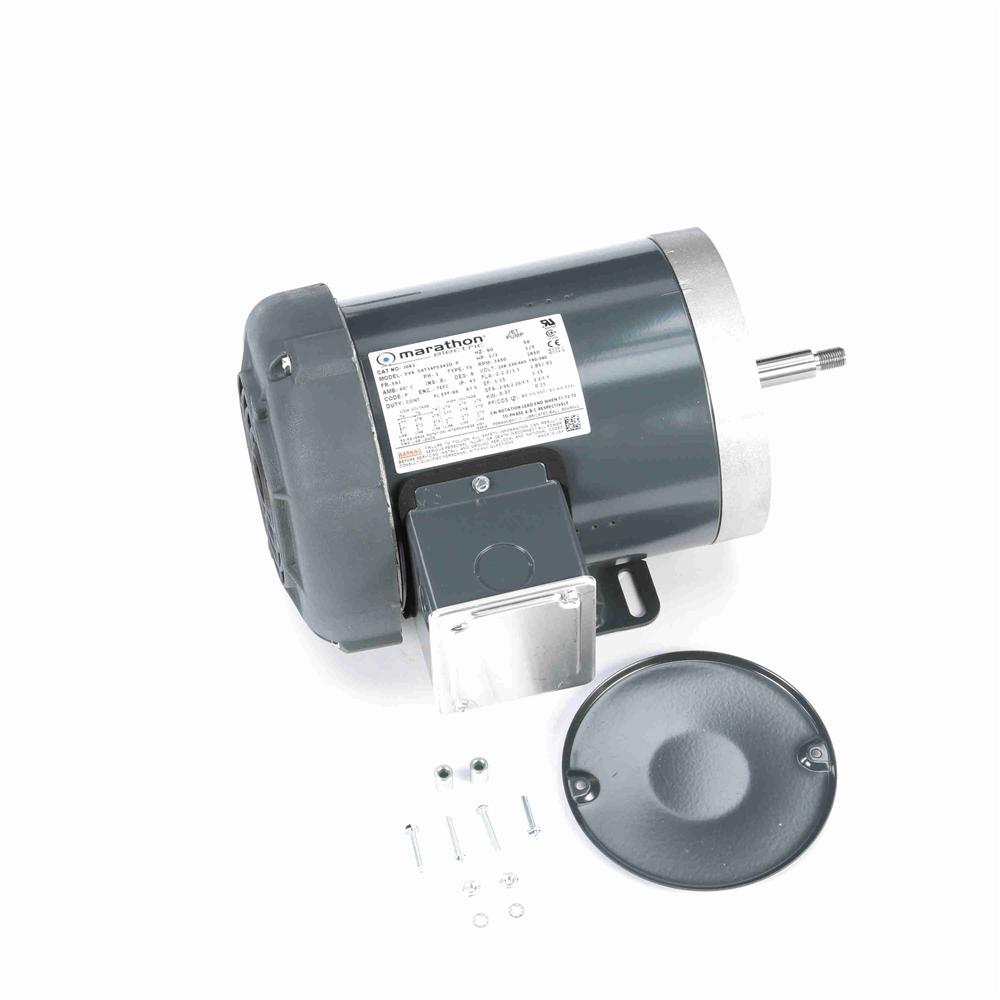

Marathon J061 56J Frame Totally Enclosed 56T34F5342 Jet Pump Motor, 1/2 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Base

Marathon J061 56J Frame Totally Enclosed 56T34F5342 Jet Pump Motor, 1/2 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.056T34F5342
Amps2.0-2.2/1.1, 2-2.2/1.1
BearingsBall
BrandMarathon
C-Dimension12.32 (in.)
Catalog NumberJ061
CEY
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.66
Electrical TypeSquirrel Cage Induction.
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame56J
Frame MaterialRolled Steel
Frame Type56J
Frequency60/50
Gross Weight0 lbs
HP1/2
Hz60
Insulation ClassB
IP Code43
KVA CodeP
Manufacturer Model #056T34F5342
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor OrientationHorizontal Or Shaft Down
Motor Shell Length6.56"
MountingBase
Mounting OrientationHorizontal/Vertical Sha.
Mounting TypeRigid Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.32"
Phase3
Product CategoryPump Motors > General .
Product TypeThree Phase
RotationReversible
RPM3450, 3400 - 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension2.57 (in.)
Shaft Length2.57"
Shaft TypeJ
Ship Weight23 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage208-230/460
Volts208, 230, 460, 208-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comJ061201.01In StockMARATHON201.0 @ 1
thumbzoomGalcoJ061-MARA285.081In StockMarathon Electric285.08 @ 1
thumbzoomMRO Supply2269155288.531In StockMarathon Electric288.53 @ 1
thumbzoomapexindustrialautomation.comJ061288.88111Marathon288.88 @ 1
us.rs-online.com72650751333.331In StockMarathon Motors333.33 @ 1
thumbzoomAutomation DirectJ061335.014Marathon22.32335.0 @ 1
thumbzoomDreisilkerMA-RBC-J061352.371In StockMarathon352.37 @ 1
thumbzoomemotorpro.comJ061353.161In StockMarathon23.0353.16 @ 1
thumbzoomNational Supply NetworkB868791358.941In StockMARATHON MOTORS358.94 @ 1
thumbzoomGlobal IndustrialWBB868791362.951In StockMarathon Motors362.95 @ 1
thumbzoomZoroG306629421370.361In Stock35Marathon370.36 @ 1
thumbzoomcbtcompany.comJ061380.871In StockMarathon Electric Motors380.87 @ 1
