Marathon Electric J062

B007ZQOJC2

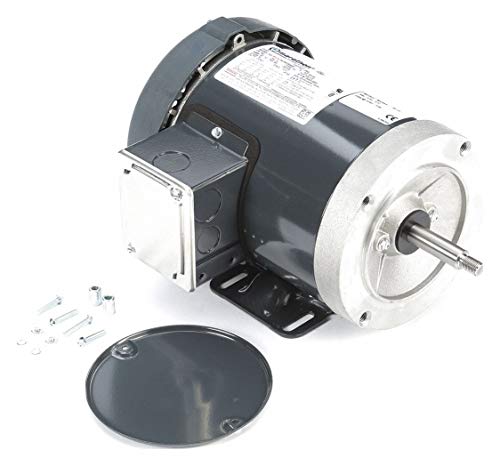

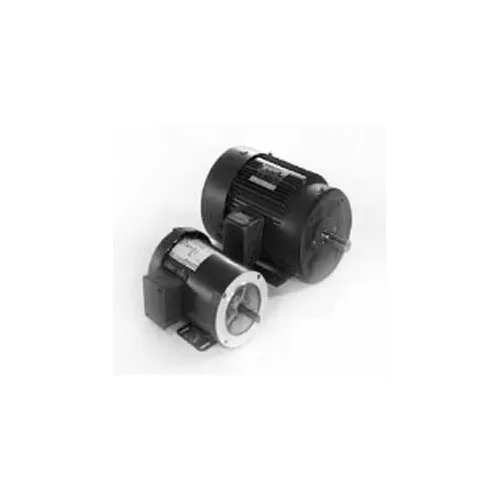

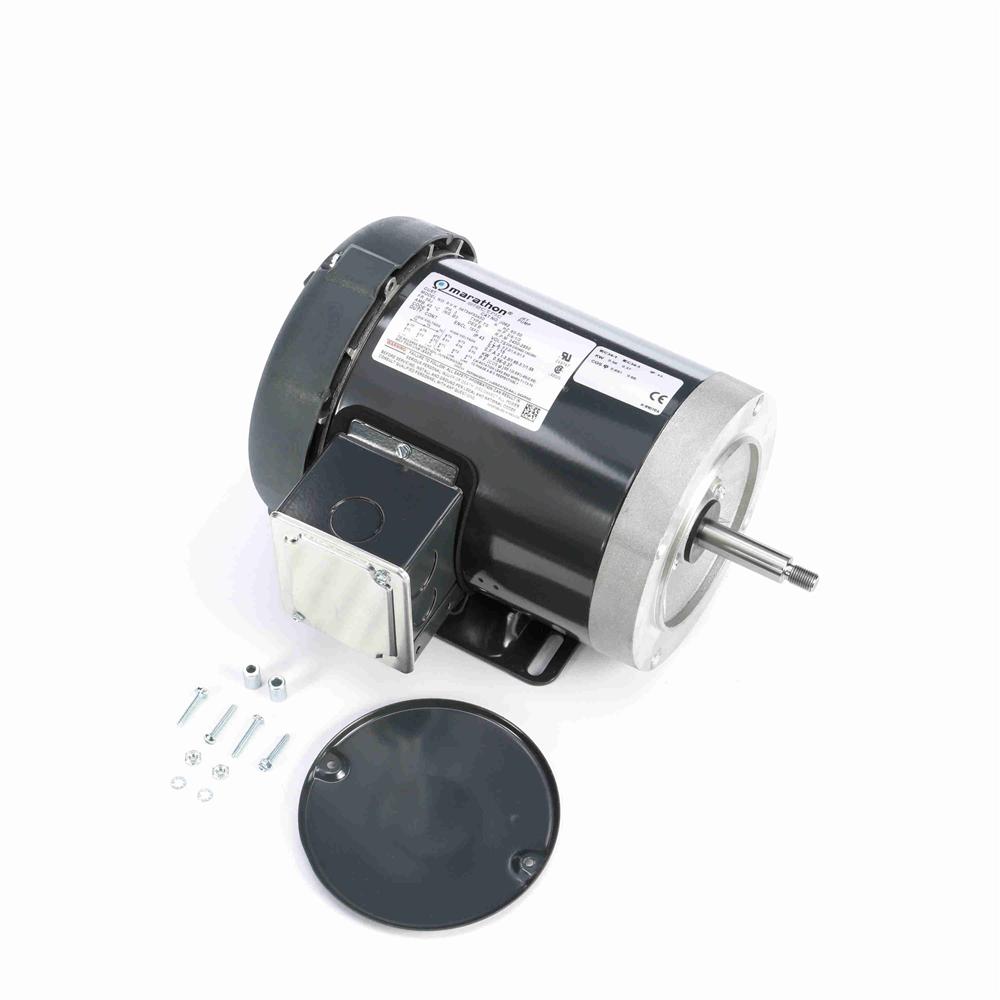

Marathon J062 56J Frame Totally Enclosed 56T34F5343 Jet Pump Motor, 3/4 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Base

Marathon J062 56J Frame Totally Enclosed 56T34F5343 Jet Pump Motor, 3/4 hp, 3600 RPM, 208-230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, C-Face with Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.056T34F5343
Amps3-3.2/1.6, 3.0-3.2/1.6
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.32 (in.)
Catalog NumberJ062
CEY
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
Current Rating3.0 to 3.2 ; 1.6 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency74, 0.74
Efficiency %74 %
Electrical TypeSquirrel Cage Induction.
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame56J
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56J
Frame Type56J
Frequency50 Hz, 60 Hz, 60/50 Hz,.
frequency rating:60 Hz
full load efficiency:74.00 %
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
IP Code43
ip rating:54
Item NumberJ062
Kilowatts0.56 kW
KVA CodeN
ManufacturerMarathon Electric
Manufacturer Model #056T34F5343
Manufacturer Part Number056T34F5343
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Jet Pump Motor
motor horsepower:3/4 hp, 0.75 hp
Motor OrientationHorizontal Or Shaft Down
motor phase:3 ph
Motor Shell Length6.56"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal/Vertical Sha.
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base/C-Face Flange
NEMA Frame56J
Net Weight26 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.32 ", 12.32"
overall length (c-dimen.12.32 in
Phase3, 3 Phase
Product CategoryPump Motors > General .
Product TypeThree Phase
RotationReversible
RPM3450 RPM, 3,450 RPM, 34.
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.63 in
Shaft Extension2.57 (in.)
Shaft Length2.57"
Shaft TypeJ
Ship Weight23 lbs.
Special FeaturesService Factor - 1.15
Speeds1
StandardsUL Recognized
standards met:CSA, UL
Supply Voltage208-230/460 VAC
synchronous rpm:3600 rpm
TypeSquirrel Cage Induction.
Type of Overload Protec.No
ULRecognized
UPC Code722856032478
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.
volts @ frequency:190/380 V @ 50 Hz;208-2.
weight:23 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comJ062231.01In StockMARATHON231.0 @ 1
thumbzoomAutomation DirectJ062287.01In StockMarathon23.32287.0 @ 1
thumbzoommotionindustries.com04488839307.781In StockMarathon Electric307.78 @ 1
thumbzoomGalcoJ062-MARA334.591In StockMarathon Electric26.0334.59 @ 1
thumbzoomapexindustrialautomation.comJ062339.05127Marathon339.05 @ 1
thumbzoomMRO Supply2269156339.171In StockMarathon Electric339.17 @ 1
us.rs-online.com72238013396.651In StockMarathon Motors396.65 @ 1
thumbzoomemotorpro.comJ062399.361In StockMarathon23.0399.36 @ 1
thumbzoomDreisilkerMA-RBC-J062414.21In StockMarathon414.2 @ 1
thumbzoomNational Supply NetworkB868793414.941In StockMARATHON MOTORS414.94 @ 1
thumbzoommidwestapplianceparts.comJ062-MT-P423.761In StockMarathon423.76 @ 1
thumbzoomGlobal IndustrialWBB868793439.951In StockMarathon Motors439.95 @ 1
thumbzoomcbtcompany.comJ062447.021In StockMarathon Electric Motors447.02 @ 1
thumbzoomZoroG406629420501.551In Stock35Marathon501.55 @ 1
kirbyrisk.com507310517.181In StockMarathon517.18 @ 1
