Martin 10 3V 1400 E

B004BJ2CRK

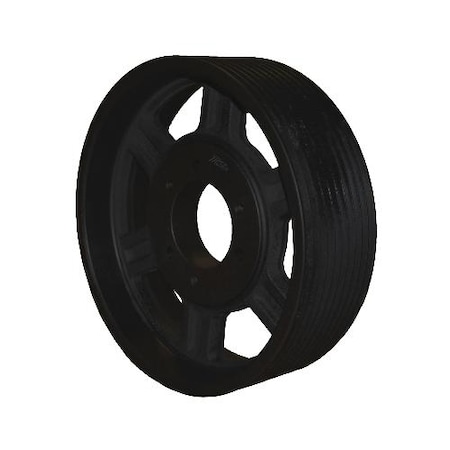

Martin 10 3V 1400 E Narrow V-Belt Drive Sheave, 3V Belt Section, 10 Grooves, E Bushing required, Class 30 Gray Cast Iron, 14" OD, 1772 max rpm, 13.95" Pitch Diameter

Martin 10 3V 1400 E Narrow V-Belt Drive Sheave, 3V Belt Section, 10 Grooves, E Bushing required, Class 30 Gray Cast Iron, 14" OD, 1772 max rpm, 13.95" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section3V
Bore TypeBushed
Bushed ForE
Bushing Maximum Bore Si.2.875 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore2.625 "
MaterialCast Iron
Number of Grooves10
Outer Diameter14 in
Outside Dia14.000"
Pitch Diameter13.95 "
Sheave ConstructionWeb
Sheave Face Width4.34375 "
Sheave TypeHigh Capacity
UPC Code697950086224
Weight43 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB004BJ2CRK403.771In StockMartin403.77 @ 1
thumbzoomindustrialzone.com10 3V 1400 E470.291In StockMartin1.0470.29 @ 1
us.rs-online.com72478950521.651In StockMartin Sprocket & Gear43.0521.65 @ 1
thumbzoomMRO Supply253926544.561In StockMartin Sprocket544.56 @ 1
thumbzoomPurvis10 3V 1400 E568.821In StockMartin568.82 @ 1
thumbzoomapexindustrialautomation.com10 3V 1400 E591.911In StockMartin Sprocket591.91 @ 1
thumbzoomZoroG3345558688.961In Stock14Martin Sprocket & Gear688.96 @ 1
motionindustries.com00706570747.351In StockMartin747.35 @ 1
