Martin 2 3V 450 TB

B004BKID68

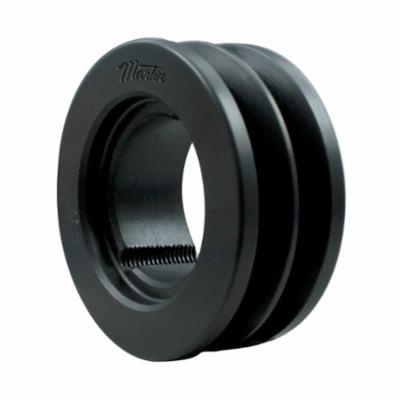

Martin 2 3V 450 TB Hi-Cap TB Sheave, 3V Belt Section, 2 Grooves, 1610 Bushing required, Class 30 Gray Cast Iron, 4.5" OD, 5513 max rpm, 4.45" Pitch Diameter

Martin 2 3V 450 TB Hi-Cap TB Sheave, 3V Belt Section, 2 Grooves, 1610 Bushing required, Class 30 Gray Cast Iron, 4.5" OD, 5513 max rpm, 4.45" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section3V
belt section size:3V
Bore TypeBushed
bore type:Taper Lock Bushed
Bushed For1610
bushing bore range:0.5000 to 1.6250 in
Bushing Maximum Bore Si.1.5
Bushing MountStandard
bushing series:1610
Bushing StyleTB
ConditionNew
Length Through Bore1 "
ManufacturerMartin Sprocket & Gear
manufacturer upc number:697950154183
MaterialSteel
material:Steel
mounting type:Standard
Number of Grooves2
Outer Diameter4.5 in
Outside Dia4.500"
overall width:1-3/32 in
Pitch Diameter4.45 "
pitch diameter:4.4500 in
pulley construction:Solid
Sheave ConstructionSolid
sheave drawing type:A1
Sheave Face Width1.09375 "
Sheave TypeHigh Capacity
storage dimension heigh.1.1875 in
storage dimension lengt.4.75 in
storage dimension width:4.75 in
UPC Code697950154183
Weight2.700000, 3.17 lbs
weight:3.17 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com0070462466.711In StockMartin66.71 @ 1
us.rs-online.com7247929472.071In StockMartin Sprocket & Gear3.1772.07 @ 1
thumbzoomapexindustrialautomation.com2 3V 450 TB81.4612Martin Sprocket81.46 @ 1
thumbzoomindustrialrefrigerationparts.com2 3V 450 TB83.731In StockMartin Sprocket & Gear2.783.73 @ 1
thumbzoomMRO Supply25420586.481In StockMartin Sprocket86.48 @ 1
thumbzoomPurvis2 3V 450 TB92.41In StockMartin92.4 @ 1
