Martin 6 8V 2240 M

B004BJ2HC0

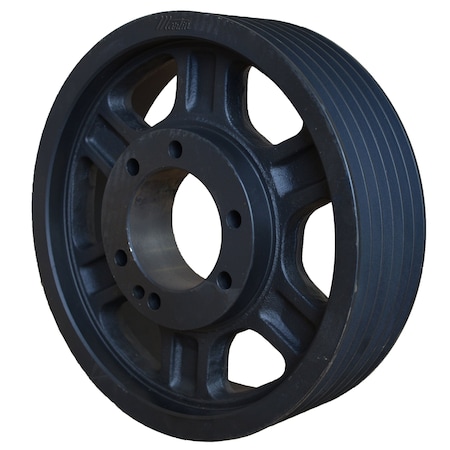

Martin 6 8V 2240 M Hi-Cap QD Sheave, 8V Belt Section, 6 Grooves, M Bushing required, Class 30 Gray Cast Iron, 22.4" OD, 1108 max rpm, 22.2" Pitch Diameter

Martin 6 8V 2240 M Hi-Cap QD Sheave, 8V Belt Section, 6 Grooves, M Bushing required, Class 30 Gray Cast Iron, 22.4" OD, 1108 max rpm, 22.2" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section8V
belt section size:8V
Bore TypeBushed
bore type:QD Bushed
Bushed ForM
bushing bore range:2.0000 to 5.5000 in
Bushing Maximum Bore Si.4.75 "
Bushing MountStandard
bushing series:M
Bushing StyleQD
Length Through Bore6.75 "
manufacturer upc number:697950120164
MaterialCast Iron
material:Cast Iron
mounting type:Reversible
Number of Grooves6
Outer Diameter22.4 in
Outside Dia22.400"
overall width:7-1/8 in
Pitch Diameter22.2 "
pitch diameter:22.2000 in
pulley construction:Arm / Spoke
Sheave ConstructionArm / Spoke
sheave drawing type:B
Sheave Face Width7.125 "
Sheave TypeHigh Capacity
UPC Code697950120164
Weight234 lbs
weight:235 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com6 8V 2240 M2279.181In StockMartin1.02279.18 @ 1
thumbzoomMRO Supply2555752497.041In StockMartin Sprocket2497.04 @ 1
thumbzoommotionindustries.com007077122499.911In StockMartin2499.91 @ 1
us.rs-online.com724803382518.871In StockMartin Sprocket & Gear234.02518.87 @ 1
cbtcompany.com6 8V 2240 M2522.631In StockMartin Sprocket & Gear2522.63 @ 1
factorysupplyoutlet.comEB27VO2696.81In Stock25MARTIN2696.8 @ 1
thumbzoomPurvis6 8V 2240 M2744.881In StockMartin2744.88 @ 1
thumbzoomZoroG36671563389.991In StockMartin Sprocket & Gear3389.99 @ 1
